Brand:

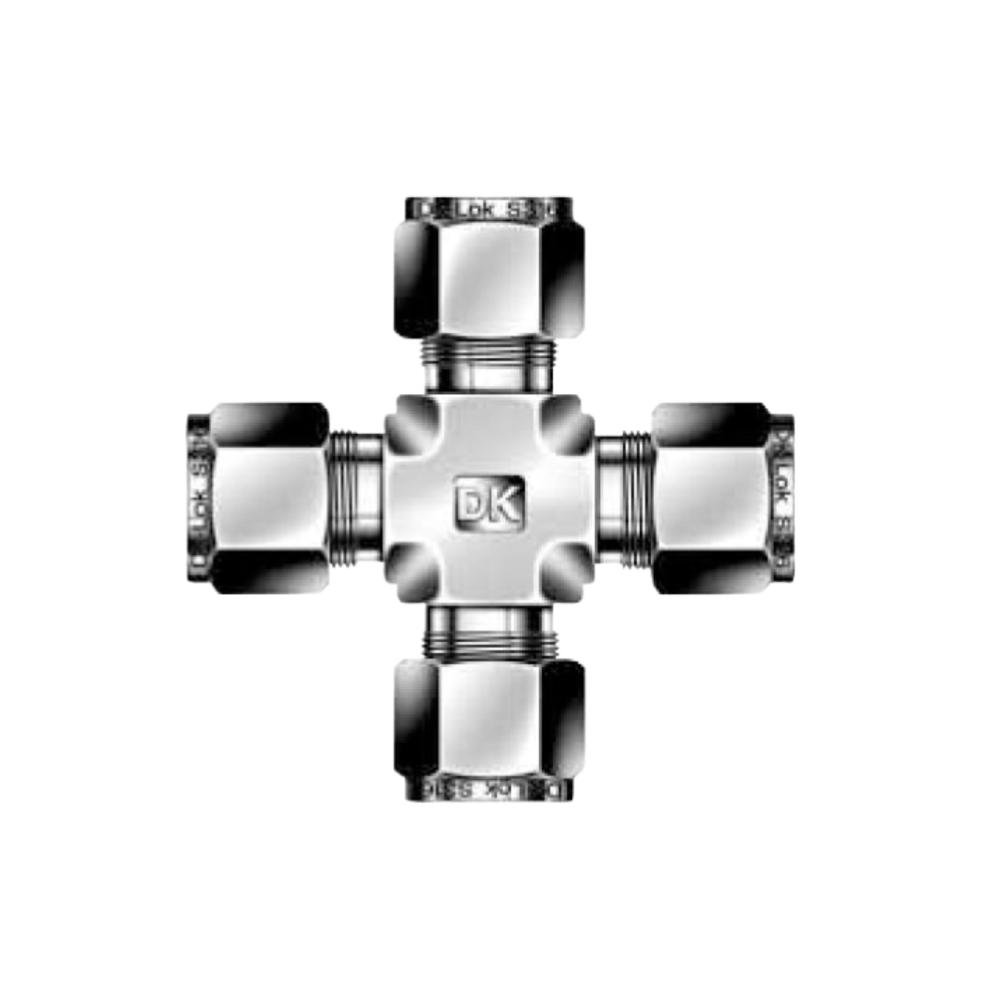

DK-LOK BRASS Union Cross DX Metric Series
Tube to Tube Union
Model No.
DX-XM-B
DK-Lok union crosses are designed to connect two individual lines of the same outside diameter size together in either fractional or metric in both single ferrule and double ferrule designs.
|

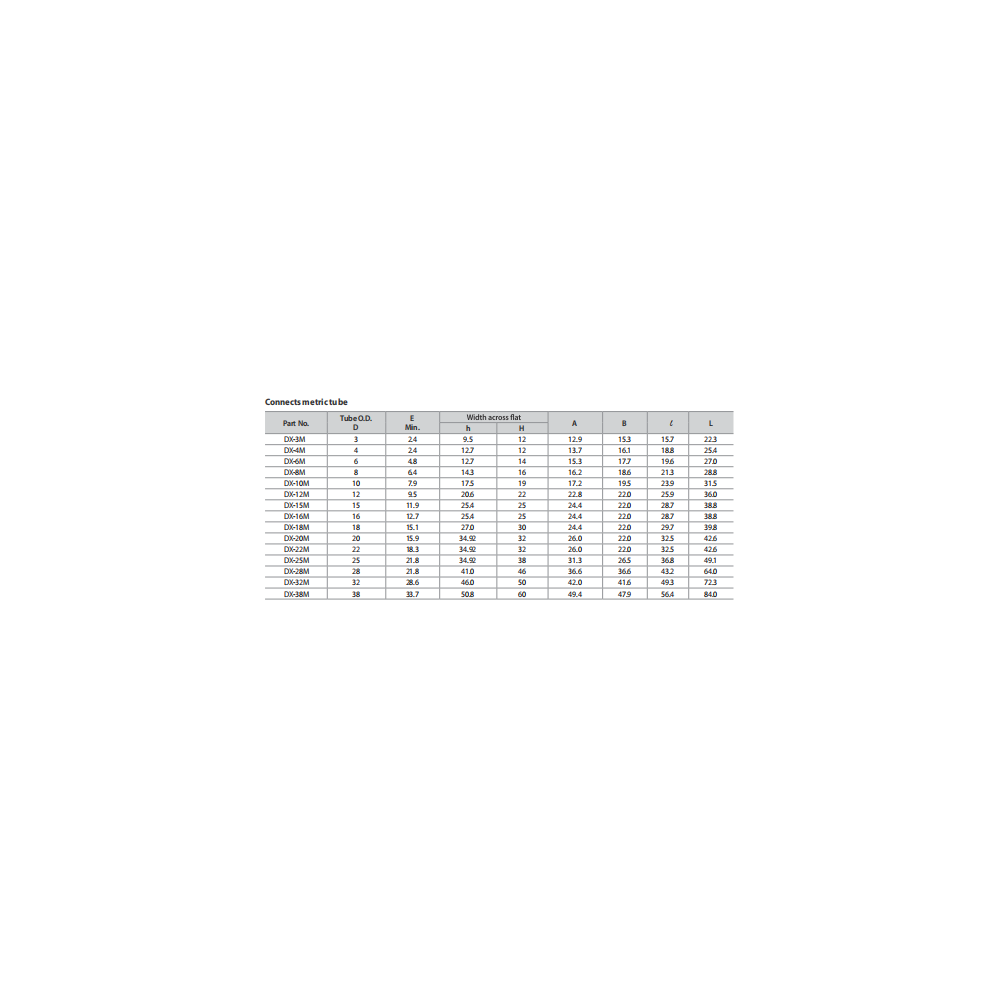

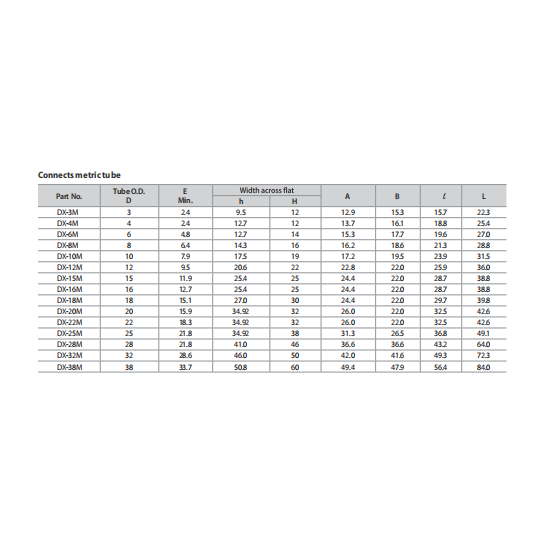

Part No |
Tube O.D. D (mm) |
|
DX-3M |
3 |
|
DX-4M |
4 |
|
DX-6M |
6 |
|
DX-8M |
8 |
|
DX-10M |
10 |
|
DX-12M |
12 |
|
DX-15M |
15 |
|
DX-16M |
16 |
|
DX-18M |
18 |
|
DX-20M |
20 |
|
DX-22M |
22 |
|
DX-25M |
25 |
|
DX-28M |
28 |
|
DX-32M |
32 |
|
DX-38M |
38 |
