Brand:

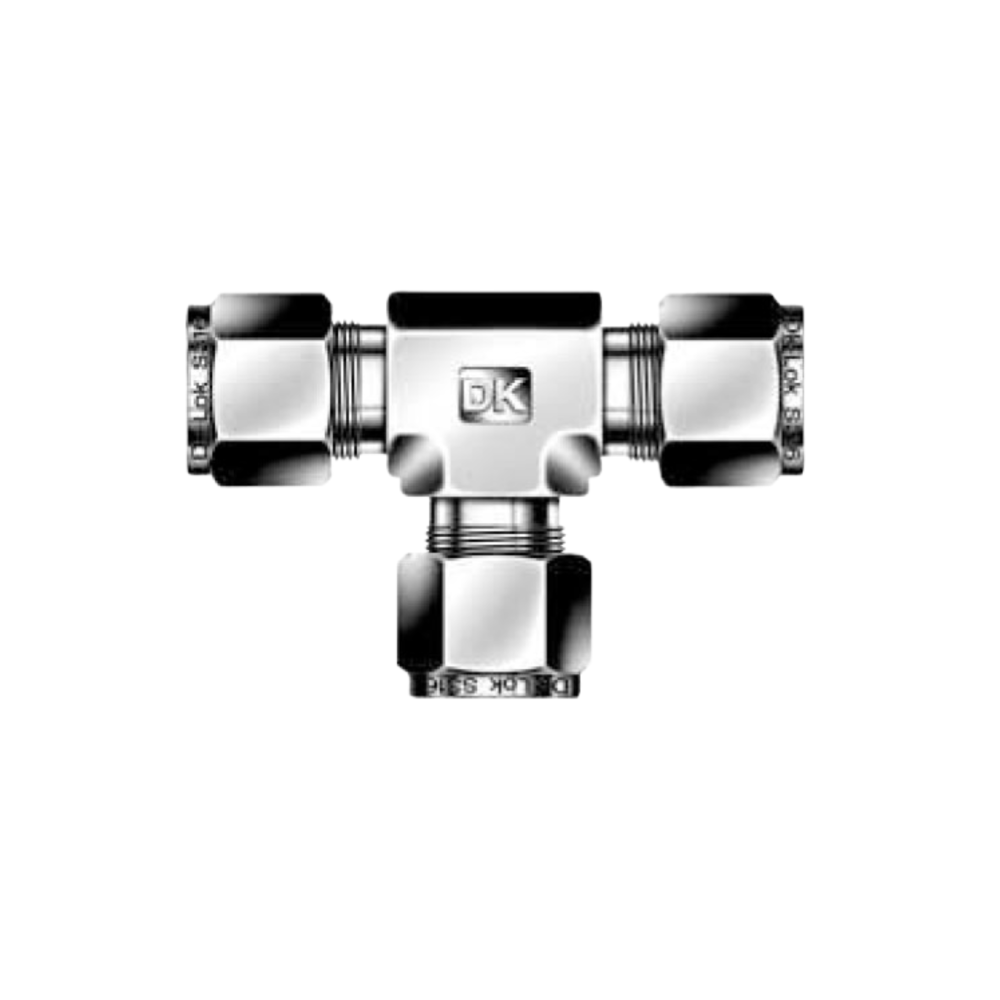

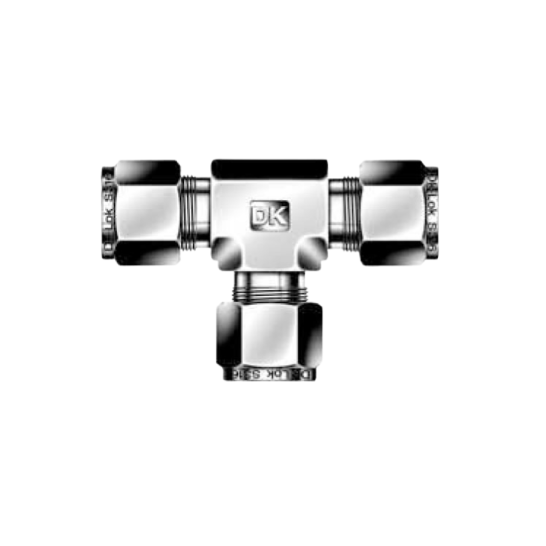

DK-LOK SS316 Union Tee DT Series
Tube to Tube Union
Model No.
DT-X-SS
DK-Lok union tees are designed to connect two individual lines of the same outside diameter size together in either fractional or metric in both single ferrule and double ferrule designs.
|

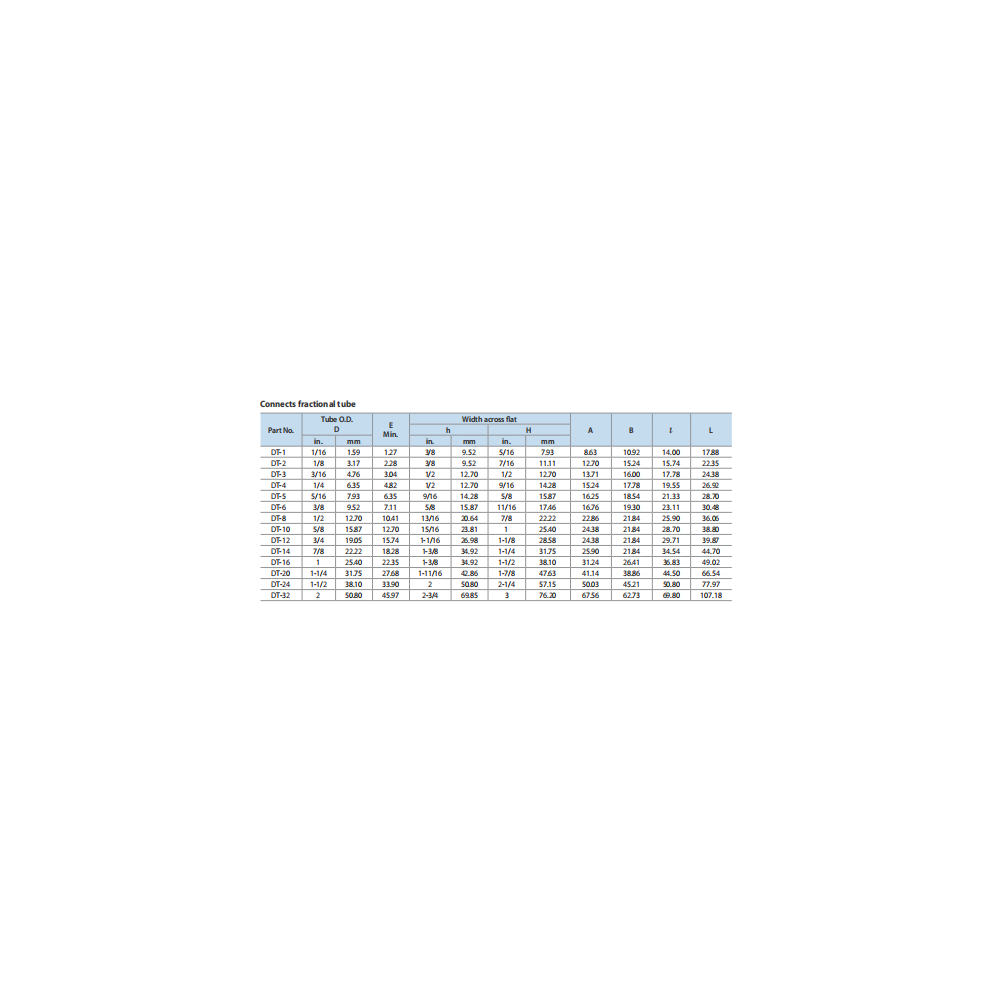

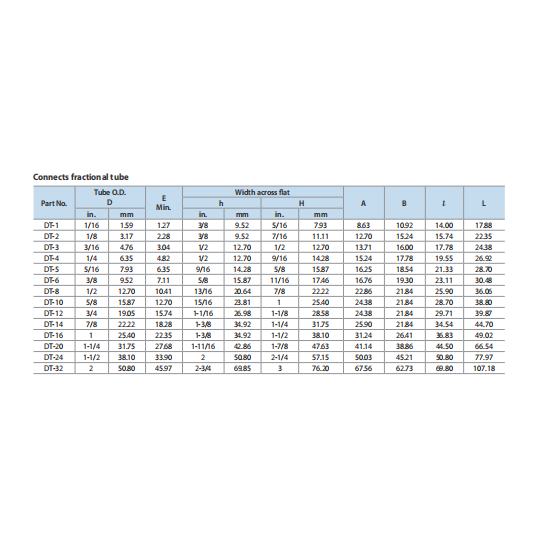

Part No |
Tube O.D. D (inches) |
|
DT-1 |
1/16 |
|
DT-2 |
1/8 |
|
DT-3 |
3/16 |
|
DT-4 |
1/4 |
|
DT-5 |
5/16 |
|
DT-6 |
3/8 |
|
DT-8 |
1/2 |
|
DT10 |
5/8 |
|
DT-12 |
3/4 |
|
DT-14 |
7/8 |
|
DT-16 |
1 |
|
DT-20 |
1-1/4 |
|
DT-24 |
1-1/2 |
|
DT-32 |
2 |
