Brand:

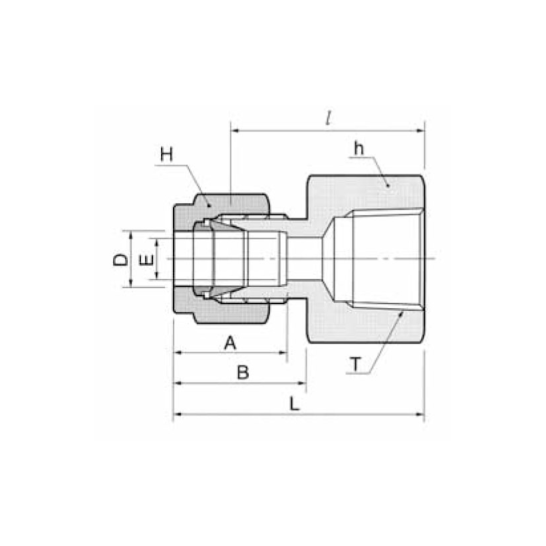

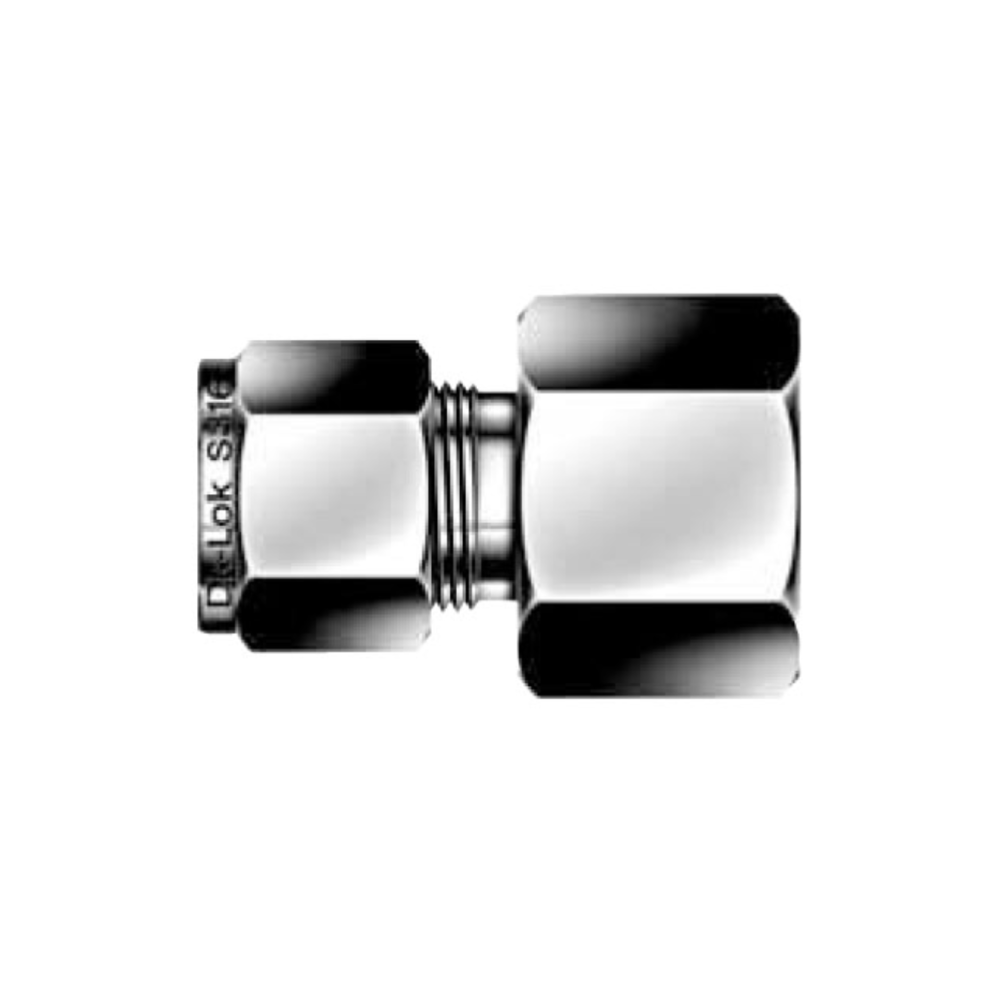

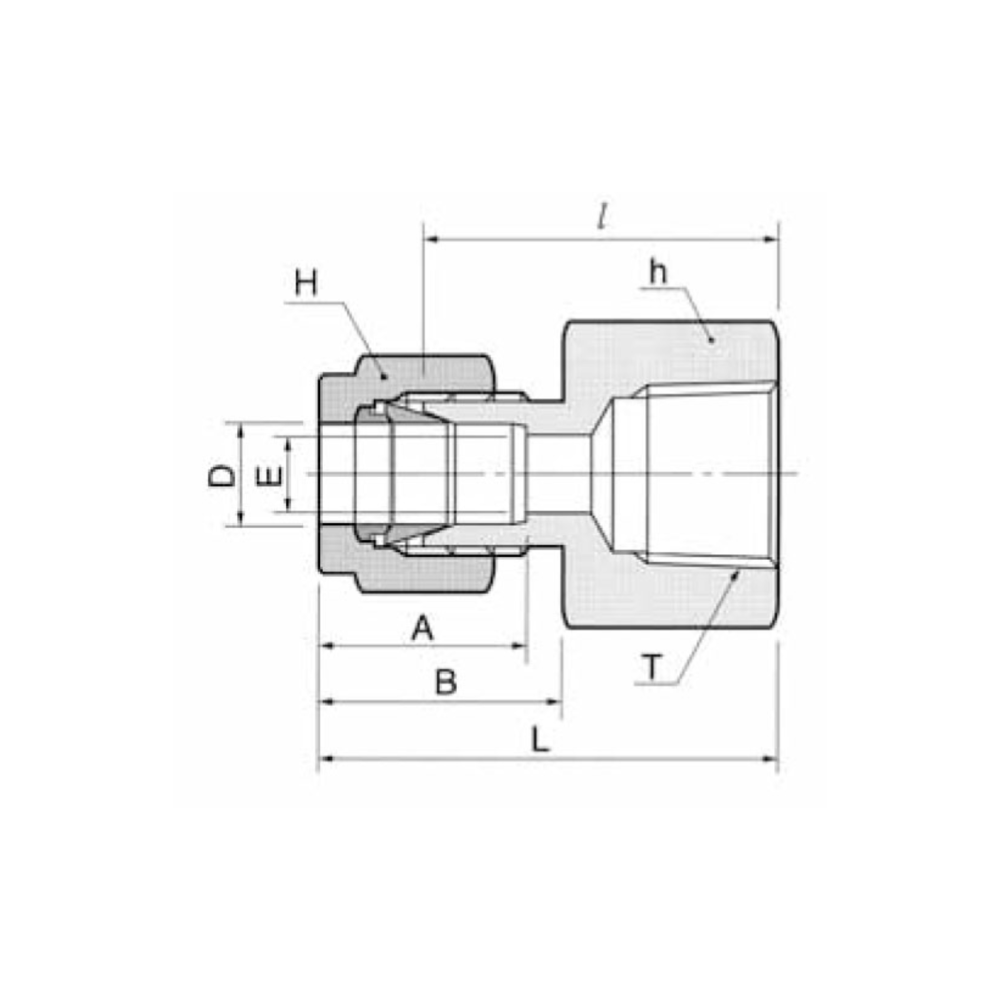

DK-LOK BRASS Gauge Connector (Previously DCG) DCF-GG Series
Tube to Female Pipe
Model No.
DCFX-XGG-B
DK-Lok DCF-GG female connectors are designed to connect individual fractional or metric tube lines to a male British Standard Pipe Thread (BSPP) in both single ferrule and double ferrule designs.
|

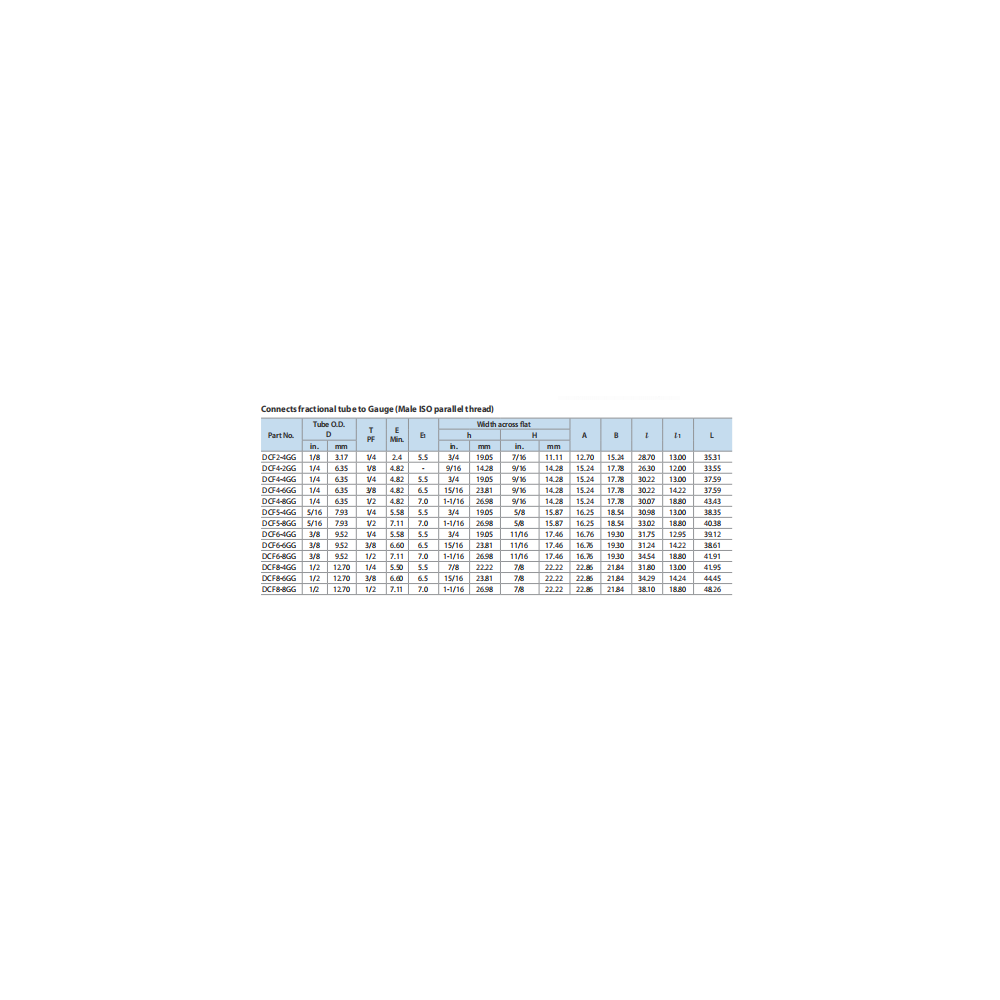

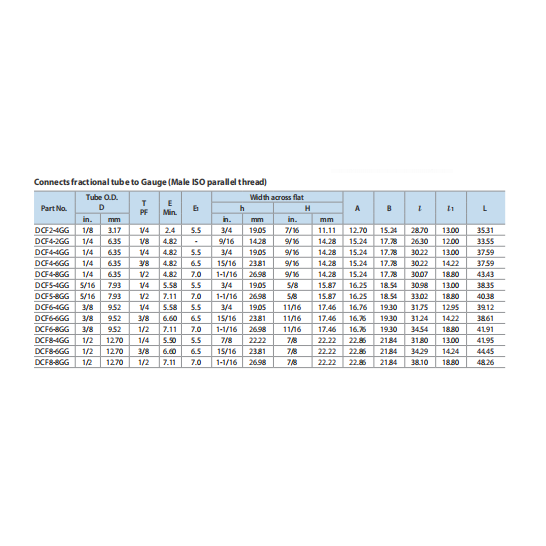

Part No
|
Tube O.D.
D (inches)
|
T
PT
|
|
DCF2-4GG |
1/8 |
1/4 |
|
DCF4-2GG |
1/4 |
1/8 |
|
DCF4-4GG |
1/4 |
1/4 |
|
DCF4-6GG |
1/4 |
3/8 |
|
DCF4-8GG |
1/4 |
1/2 |
|
DCF5-4GG |
5/16 |
1/4 |
|
DCF5-8GG |
5/16 |
1/2 |
|
DCF6-4GG |
3/8 |
1/4 |
|
DCF6-6GG |
3/8 |
3/8 |
|
DCF6-8GG |
3/8 |
1/2 |
|
DCF8-4GG |
1/2 |
1/4 |
|
DCF8-6GG |
1/2 |
3/8 |
|
DCF8-8GG |
1/2 |
1/2 |
