DK-LOK
One-piece adjustable check valves
Brand:

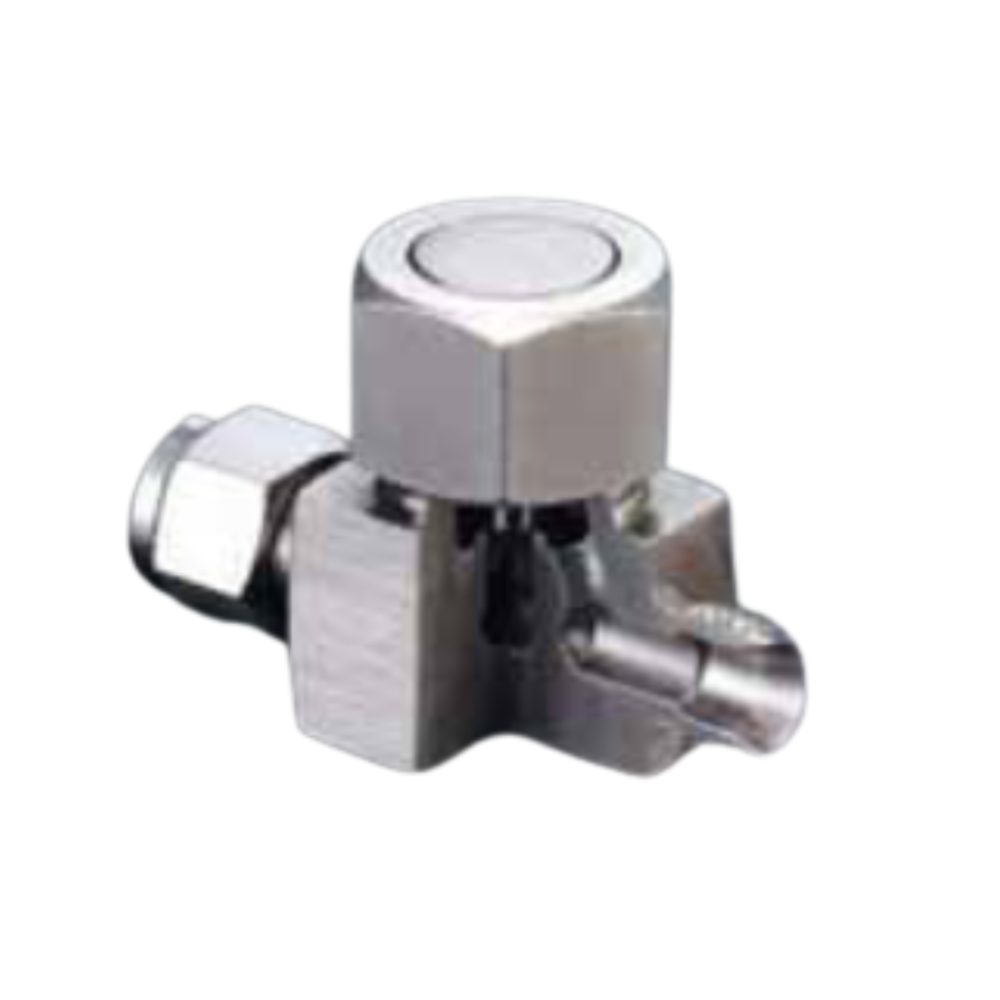

DK-LOK SS316 High Pressure Check Valve (11.1MM ORIFICE 3/8" FNPT) VL36C Series
Compact Check Valves
Model No.
VL36C-F-6N-SS
Features
• Working pressure up to 6,000 psig (413 bar)
• Temperature up to 900 °F (482 °C)
• Metal to metal seat

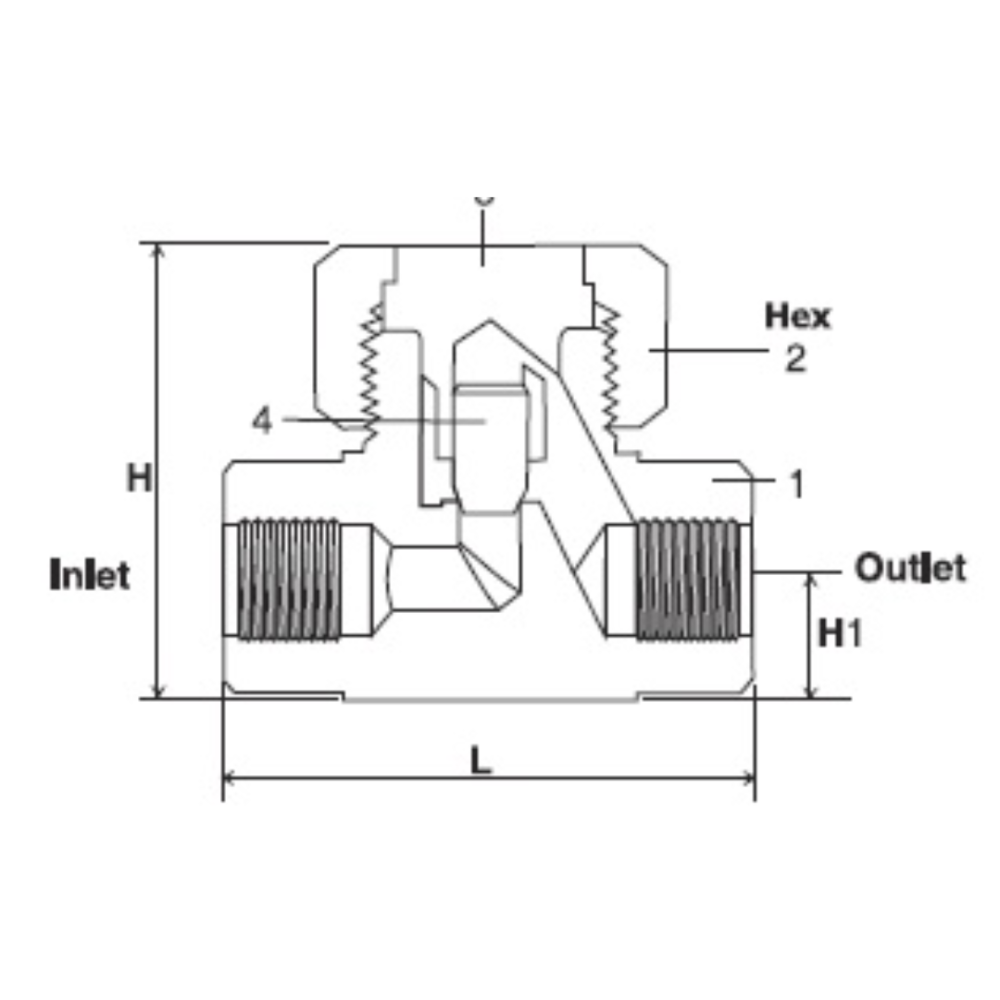

| Size | Orifice (mm) | CV | L (in.) | H(in.) | H1(in.) | Hex |
| 3/8 in. Female NPT | 11.1 | 2.20 | 79.2(3.12) | 62.0(2.44) | 15.7(.62) | 11/2 |
