Brand:

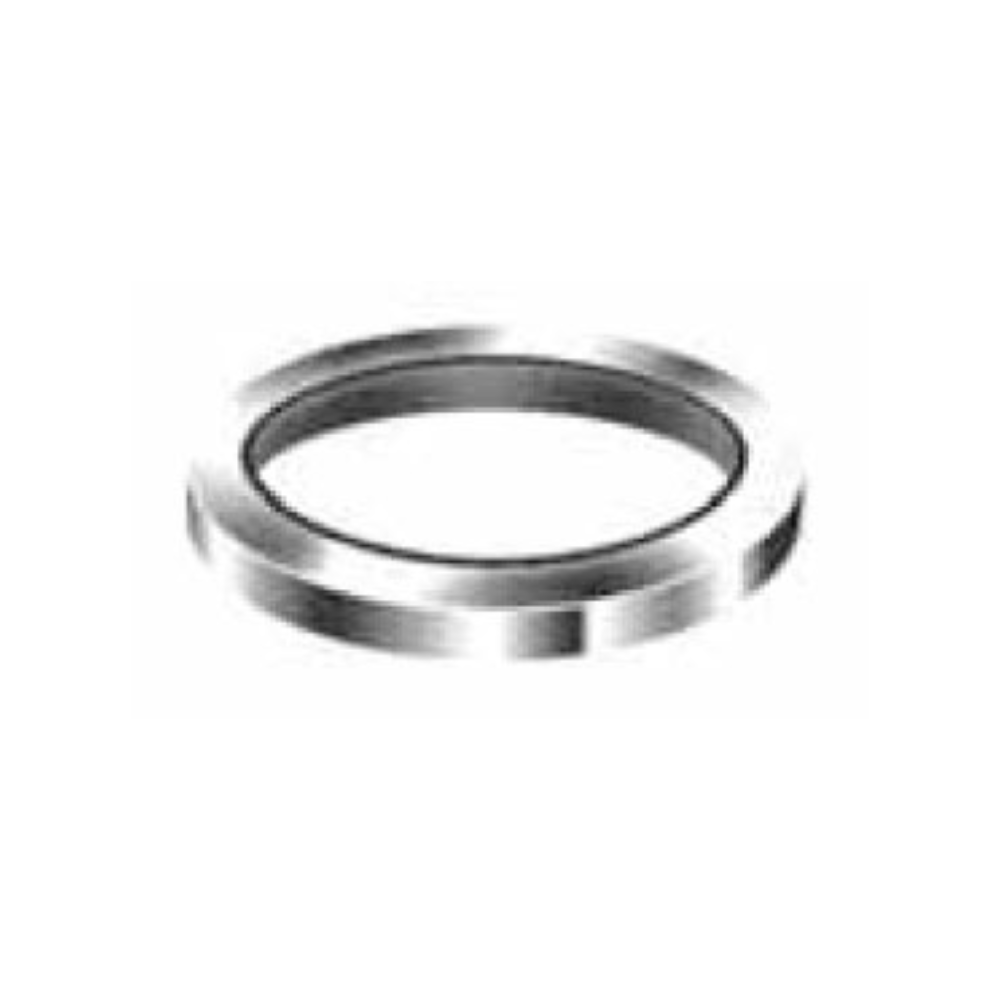

DK-LOK ISO Parallel Copper Gasket (For ISO Parallel male thread) DGC Series
SS316 ISO Parallel Copper Gasket (For ISO Parallel male thread)
Model No.
DGC
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.
| Part number | ISO 228-1 | E (mm) | H (mm) | D( mm) |
| DGC-2 | 1/8 | 9.9 | 1.0 | 15.0 |
| DGC-4 | 1/4 | 13.2 | 1.5 | 19.1 |
| DGC-6 | 3/8 | 16.8 | 1.5 | 23.1 |
| DGC-8 | 1/2 | 21.1 | 1.5 | 26.9 |
| DGC-12 | 3/4 | 26.7 | 2.0 | 33.0 |
| DGC-16 | 1 | 33.3 | 2.0 | 40.1 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
