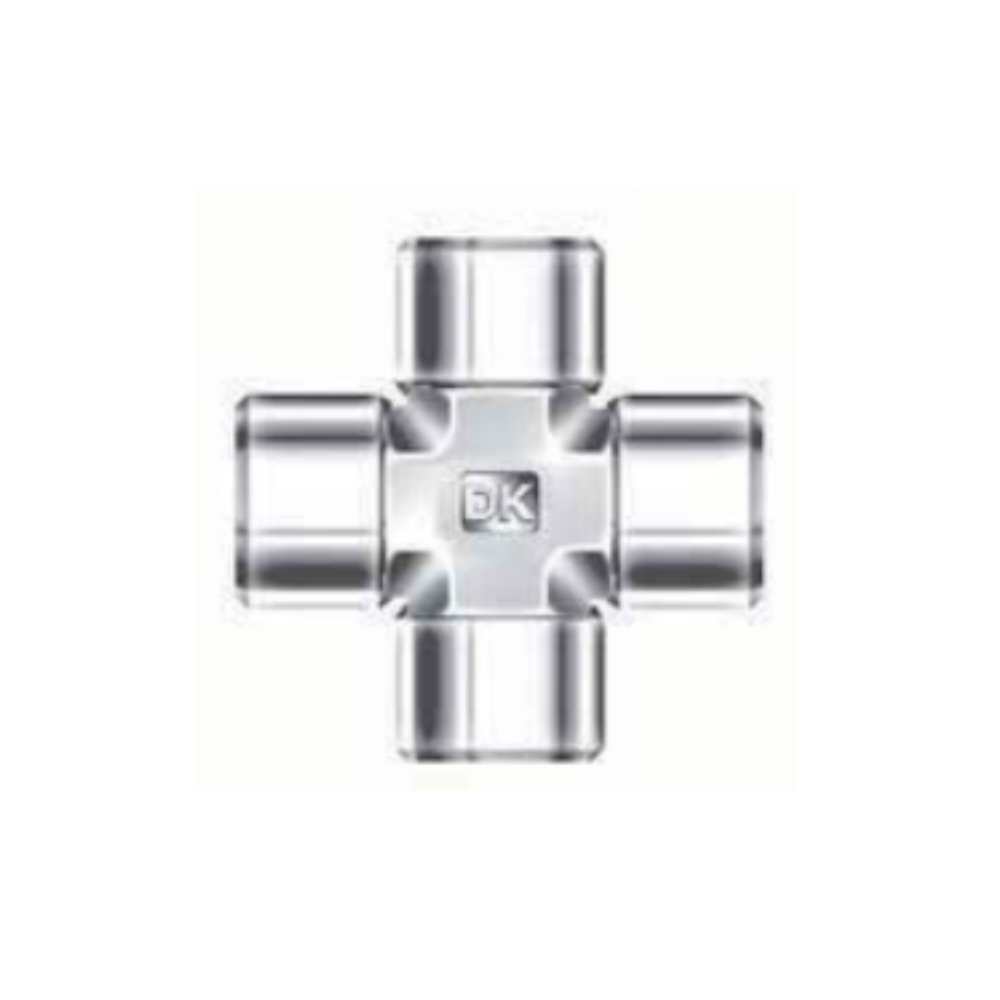

DK-LOK SS316 CROSS (Female NPT) GX Series
SS316 CROSS (Female NPT)
Model No.
GX-N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

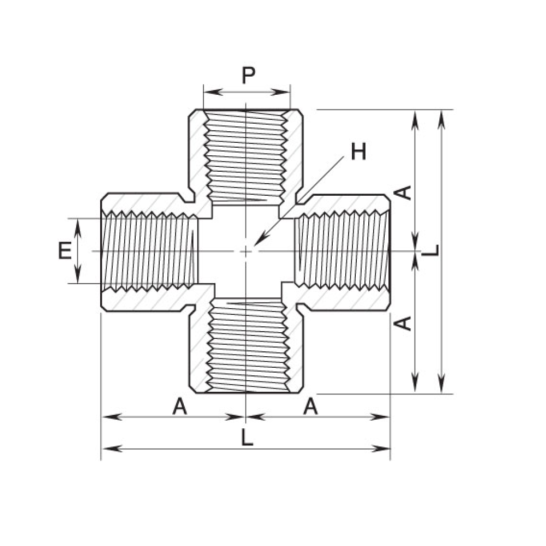

| Part number | P (NPT in.) | L (mm) | E (mm) | H ( Wrench Flat mm) |
| GX-2N-SS | 1/8 | 48.2 | 8.6 | 12.7 |
| GX-4N-SS | 1/4 | 58.0 | 11.4 | 17.5 |
| GX-6N-SS | 3/8 | 69.0 | 15.0 | 20.6 |
| GX-8N-SS | 1/2 | 74.0 | 18.5 | 25.4 |
| GX-12N-SS | 3/4 | 93.0 | 23.9 | 31.8 |
| GX-16N-SS | 1 | 97.6 | 29.7 | 42.9 |
