Brand:

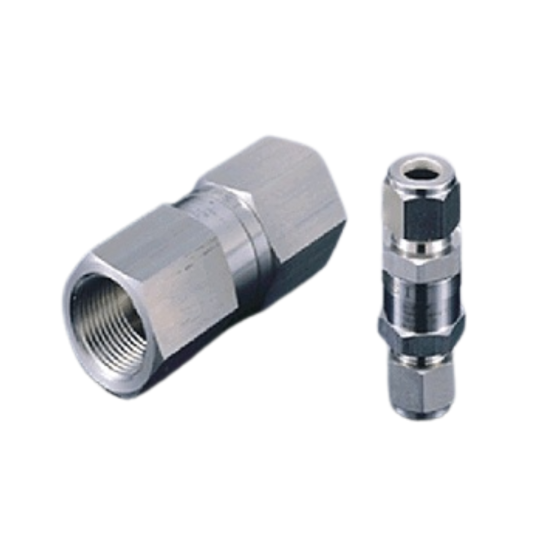

DK-LOK SS316 High Pressure Check Valve (3/4" Tube Fitting 1PSI EPDM) VH36C Series
Compact Check Valves
Model No.
VH36C-D-12T-EP-1-SS
Features
- Fixed and adjustable cracking pressure.
- Reliable DK-LOK Tube Fitting, NPT and ISO pipe end connections.
- Stainless and Brass material construction.
- High pressure 6,000 psig (413 bar)
- Seal blow-out proof design with the bonded seal on poppet.

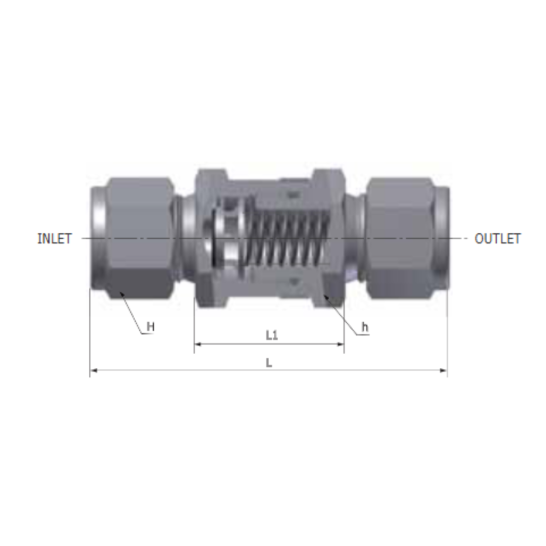

| Size | CV | L (in.) | L1(in.) | H(in.) | h(in.) | Pressure Rating psig(bar) |
| 3/4 in. DK-LOK | 4.7 | 89.4(3.52) | 45.2(1.78) | 28.58(1-1/8) | 1-5/8 | 5000(344) |
