Brand:

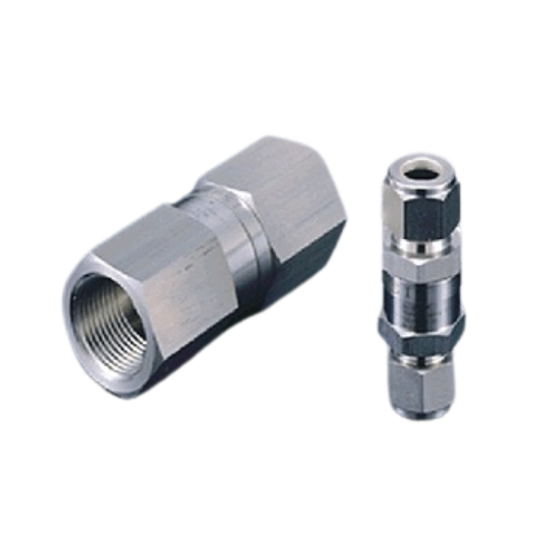

DK-LOK SS316 High Pressure Check Valve (1" FNPT EPDM 10PSI) VH36C Series
Compact Check Valves
Model No.
VH36C-F-16N-EP10-SS
Features
- Fixed and adjustable cracking pressure.
- Reliable DK-LOK Tube Fitting, NPT and ISO pipe end connections.
- Stainless and Brass material construction.
- High pressure 6,000 psig (413 bar)
- Seal blow-out proof design with the bonded seal on poppet.

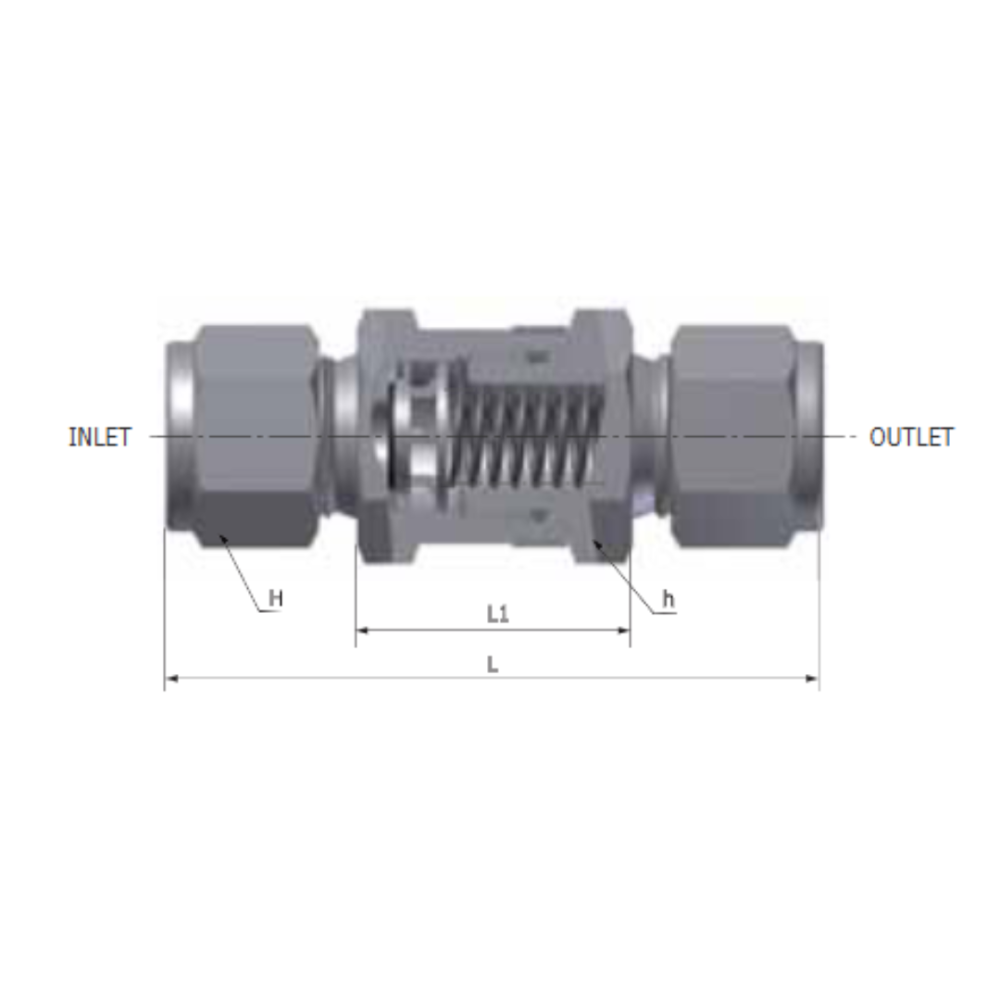

| Size | CV | L (in.) | L1(in.) | H(in.) | h(in.) | Pressure Rating psig(bar) |
| 1 in. Female NPT | 4.7 | 97.3(3.83) | 97.3(3.83) | - | 1-5/8 | 4400(303) |
