DK-LOK
SS316 Reducing Hex Bushing (Male NPT to reduced female NPT)
Brand:
DK-LOK SS316 Reducing Street Elbow (Female to reduced male NPT) GLSR Series

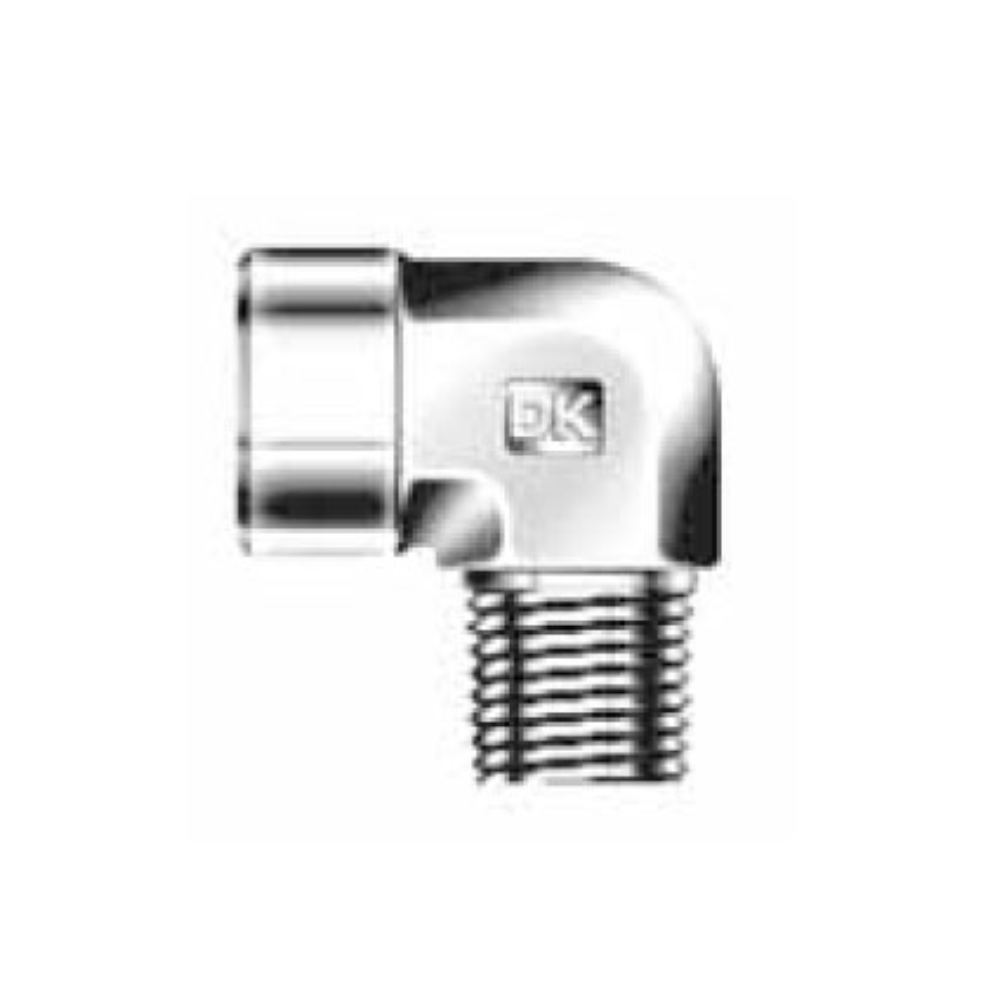

SS316 Reducing Street Elbow (Female to reduced male NPT)
Model No.
GLSR-N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

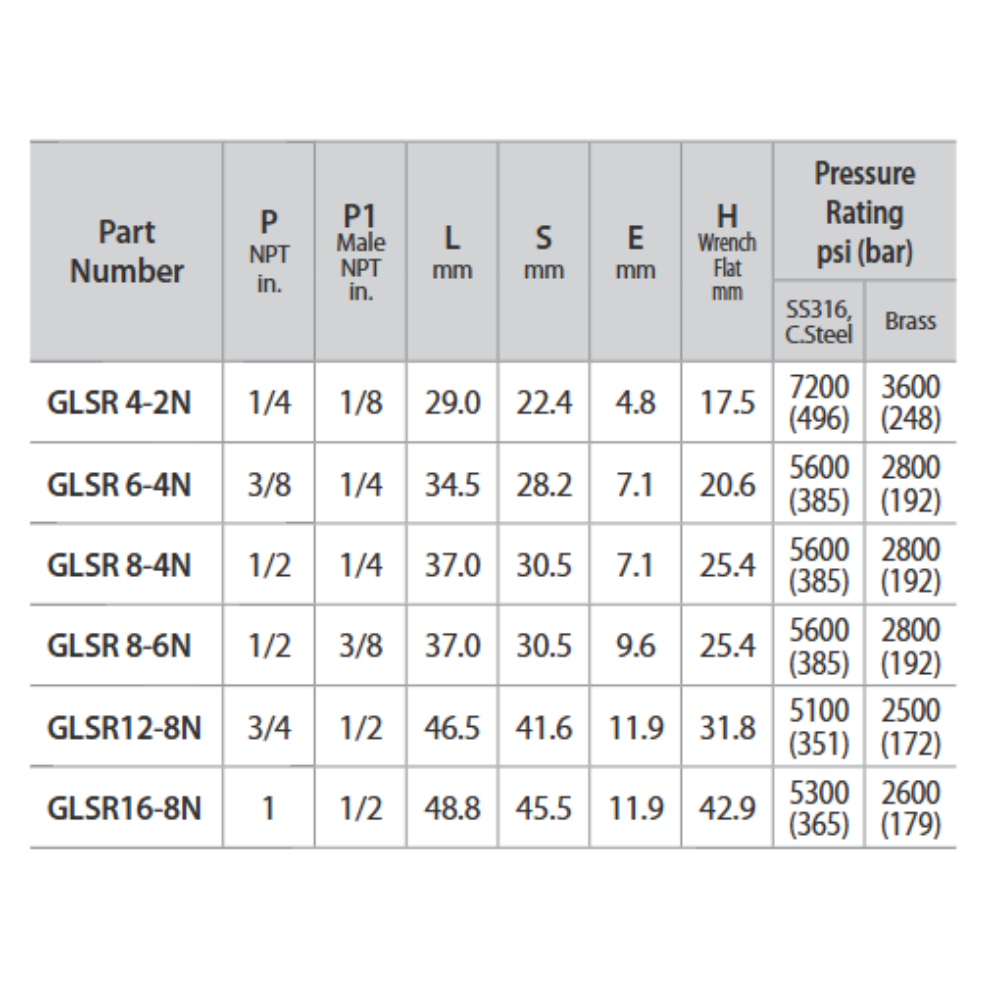

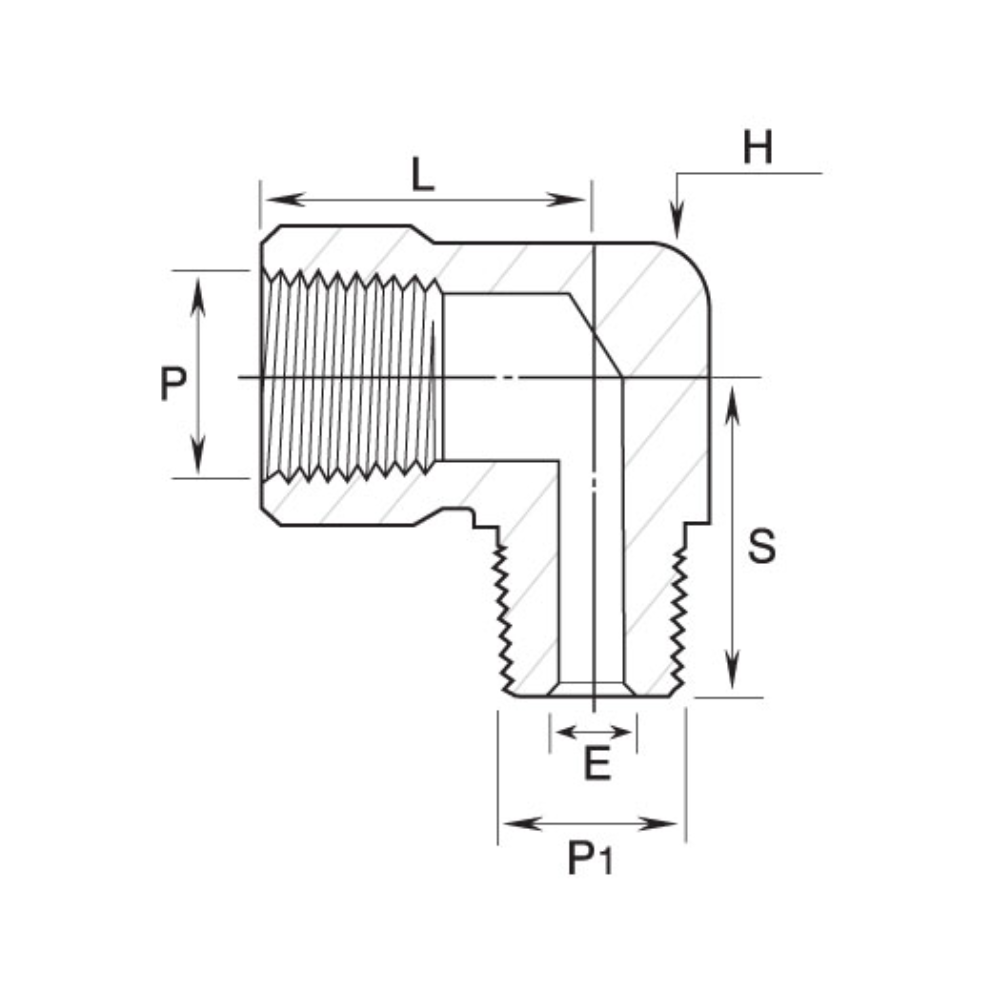

| Part number | P (NPT in.) | P1 (Male NPT in.) | L (mm) | S (mm) | E (mm) | H(Wrench Flat mm) |
| GLSR 4-2N-SS | 1/4 | 1/8 | 29.0 | 22.4 | 4.8 | 17.5 |
| GLSR 6-4N-SS | 3/8 | 1/4 | 34.5 | 28.2 | 7.1 | 20.6 |
| GLSR 8-4N-SS | 1/2 | 1/4 | 37.0 | 30.5 | 7.1 | 25.4 |
| GLSR 8-6N-SS | 1/2 | 3/8 | 37.0 | 30.5 | 9.6 | 25.4 |
| GLSR 12-8N-SS | 3/4 | 1/2 | 46.5 | 41.6 | 11.9 | 31.8 |
| GLSR 16-8N-SS | 1 | 1/2 | 48.8 | 45.5 | 11.9 | 42.9 |
