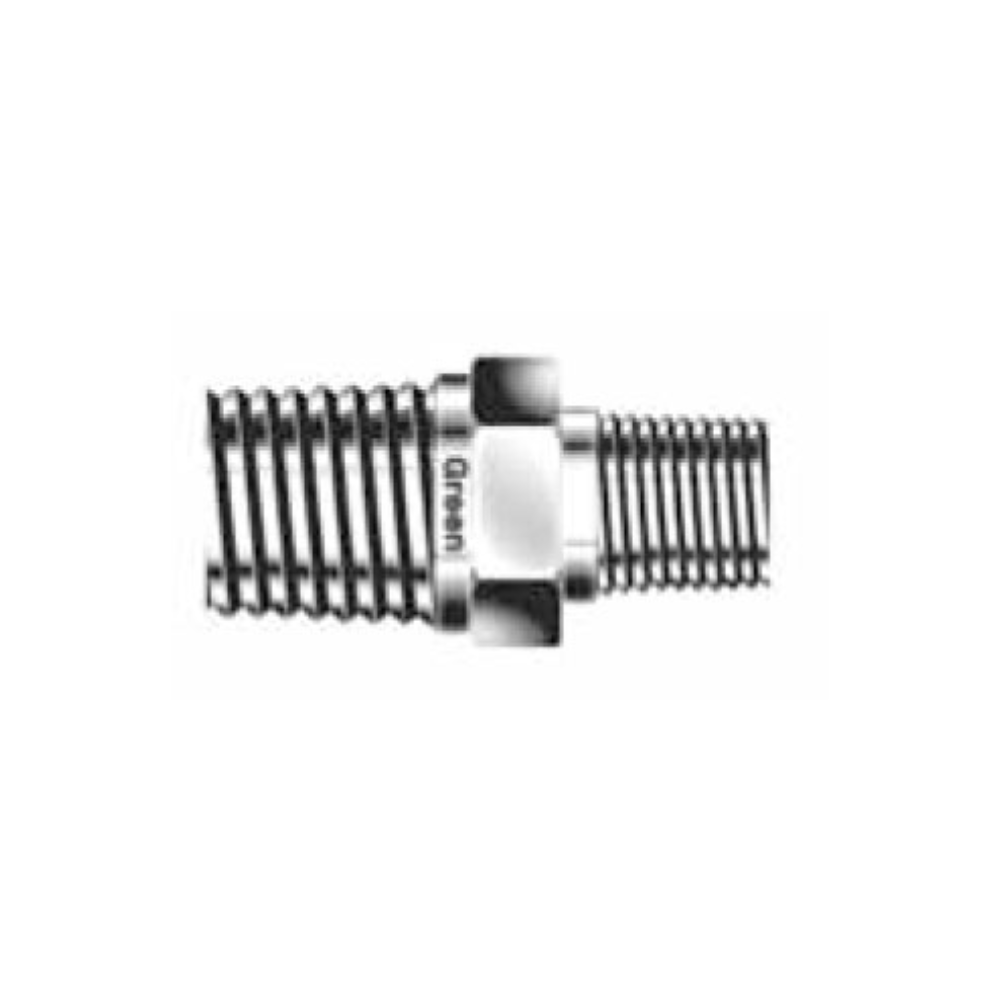

DK-LOK SS316 Hex Reducing Nipple (Male NPT to reduced male NPT) GNR Series
SS316 Hex Reducing Nipple (Male NPT to reduced male NPT)
Model No.
GNR -N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

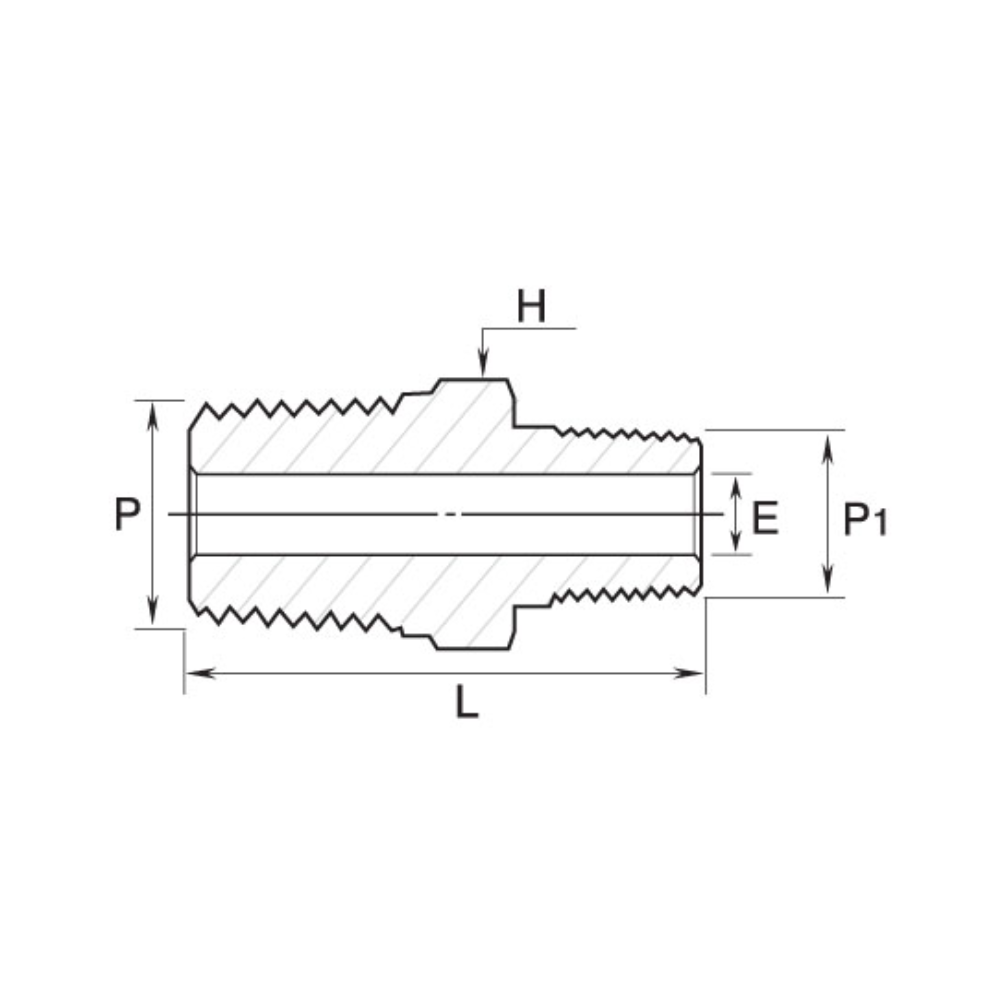

Male NPT to reduced male NPT

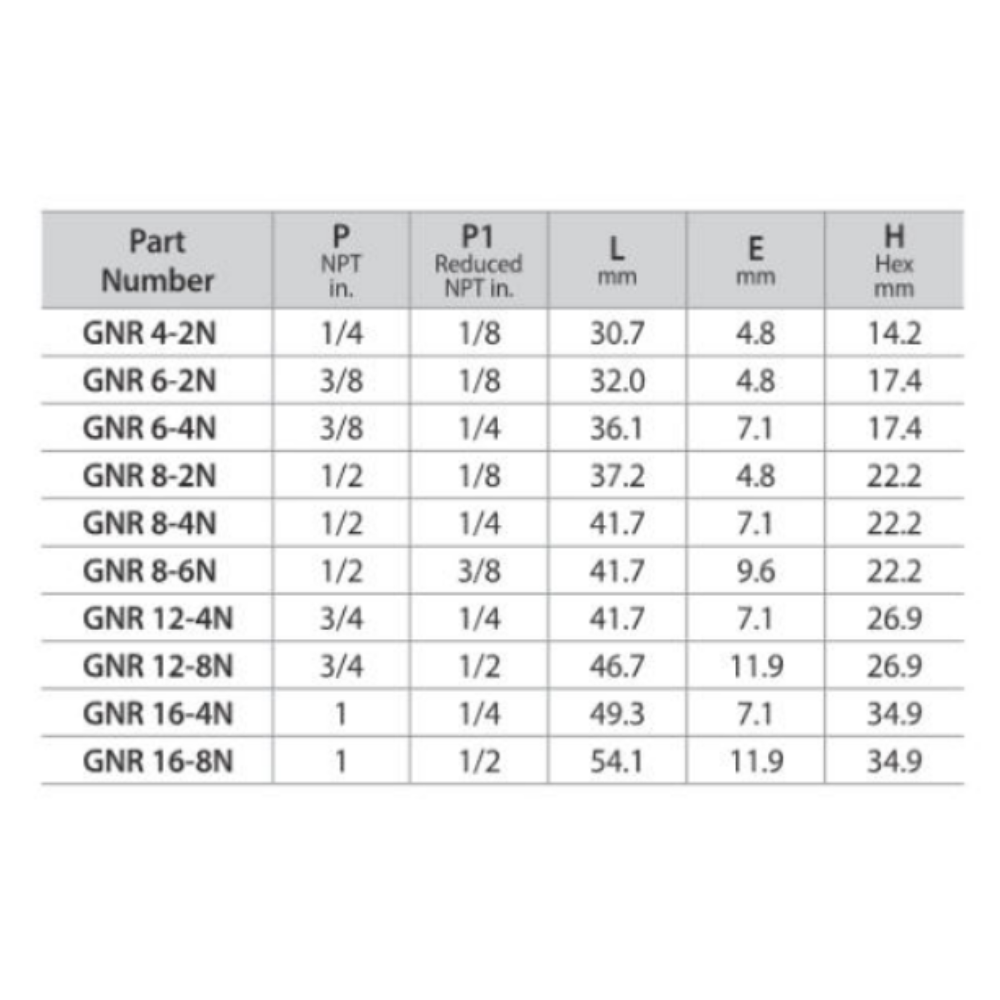

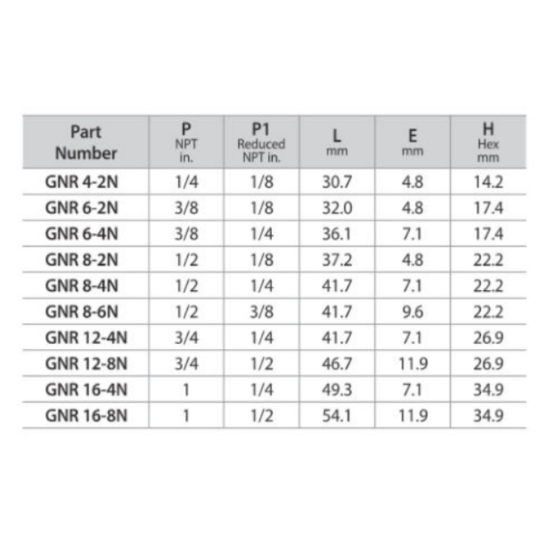

| Part number | P( NPT in.) | P1 (Reduced NPT in.) | L(mm) | E(mm) | H(Hex mm) |
| GNR 4-2N-SS | 1/4 | 1/8 | 30.7 | 4.8 | 14.2 |
| GNR 6-2N-SS | 3/8 | 1/8 | 32.0 | 4.8 | 17.4 |
| GNR 6-4N-SS | 3/8 | 1/4 | 36.1 | 7.1 | 17.4 |
| GNR 8-2N-SS | 1/2 | 1/8 | 37.2 | 4.8 | 22.2 |
| GNR 8-4N-SS | 1/2 | 1/4 | 41.7 | 7.1 | 22.2 |
| GNR 8-6N-SS | 1/2 | 3/8 | 41.7 | 9.6 | 22.2 |
| GNR 12-4N-SS | 3/4 | 1/4 | 41.7 | 7.1 | 26.9 |
| GNR 12-8N-SS | 3/4 | 1/2 | 46.7 | 11.9 | 26.9 |
| GNR 16-4N-SS | 1 | 1/4 | 49.3 | 7.1 | 34.9 |
| GNR 16-8N-SS | 1 | 1/2 | 54.1 | 11.9 | 34.9 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
