Fixed cracking pressure valves
Brand:

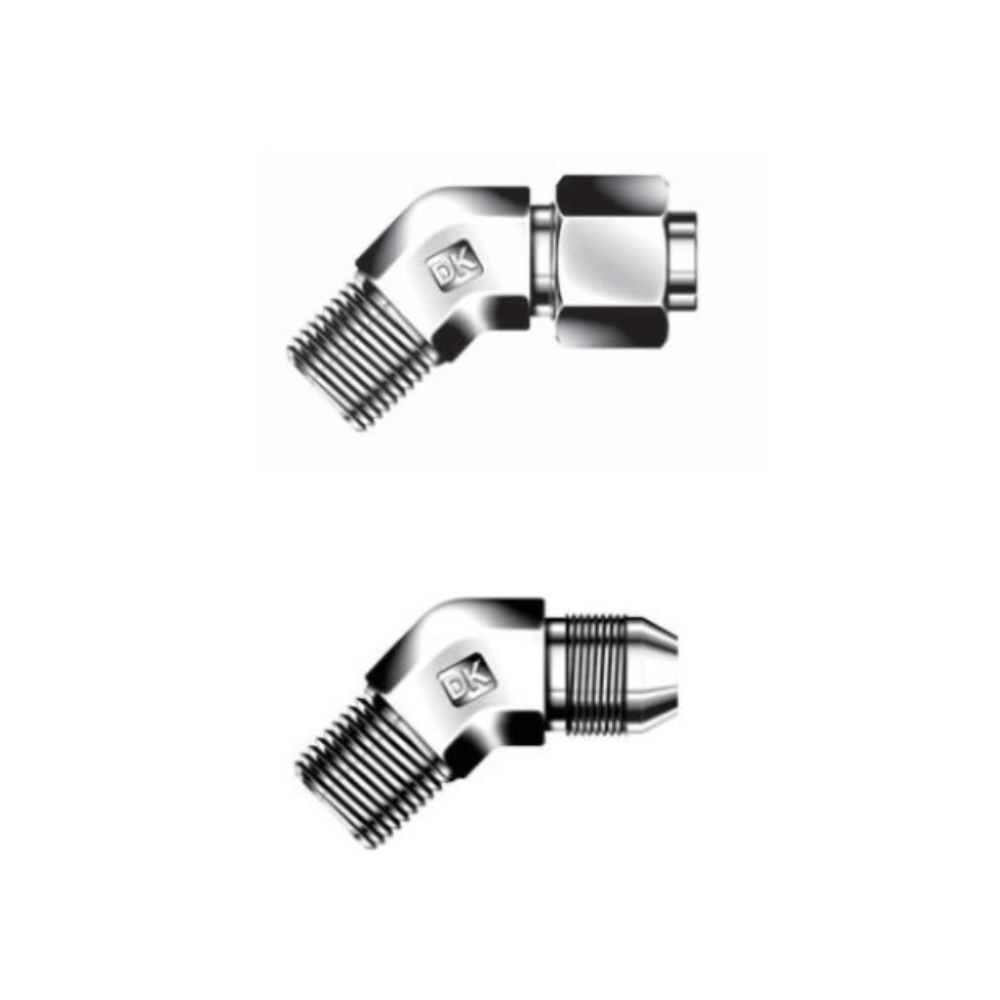

DK-LOK SS316 45 Degree Male Elbow (Tube to Male Pipe) KLBM Series
SS316 45 Degree Male Elbow (Tube to Male Pipe)
Model No.
KLBM T-N-SS
DK-Lok K Series JIC Tube Fitting consists of body, sleeve and nut and meets the requirements of SAE J514 and ISO 8434-2 standards.
DK-Lok K Series JIC Tube Fitting are capable of connecting to inch and metric tube with no changing the Sleeve and Nut.
The fitting body without sleeve and nut is widely used as a hose adapter for connection to a female swivel on a hose assembly.

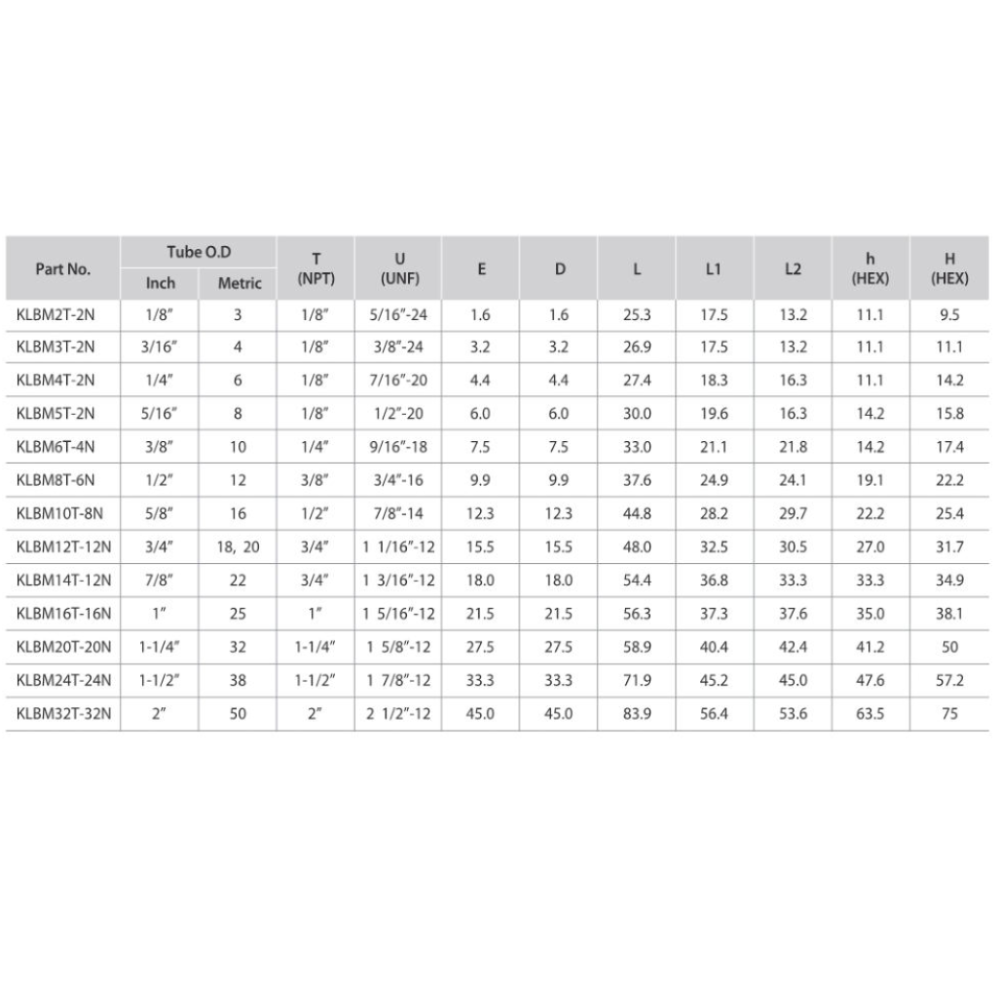

| Part number | Tube O.D (Inch) | Tube O.D (Metric) |
| KLBM2T-2N-SS | 1/8" | 3 |
| KLBM3T-2N-SS | 3/16" | 4 |
| KLBM4T-2N-SS | 1/4" | 6 |
| KLBM5T-2N-SS | 5/16" | 8 |
| KLBM6T-4N-SS | 3/8" | 10 |
| KLBM8T-6N-SS | 1/2" | 12 |
| KLBM10T-8N-SS | 5/8" | 16 |
| KLBM12T-12N-SS | 3/4" | 18,20 |
| KLBM14T-12N-SS | 7/8" | 22 |
| KLBM16T-16N-SS | 1" | 25 |
| KLBM20T-20N-SS | 1-1/4" | 32 |
| KLBM24T-24N-SS | 1-1/2" | 38 |
| KLBM32T-32N-SS | 2" | 50 |
