Brand:
DK-LOK BRASS Hex Nipple (Male NPT to ISO Parallel) GNH Series

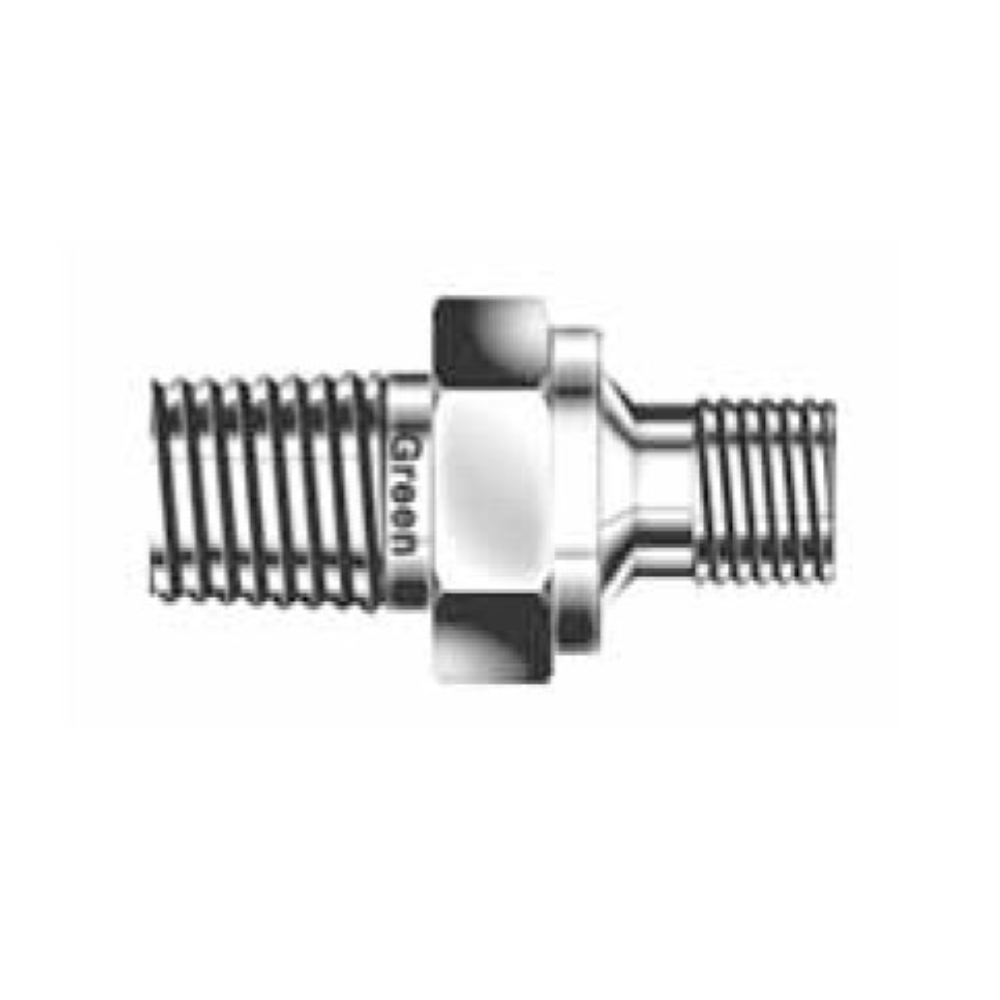

Brass Hex Nipple (Male NPT to ISO Parallel)
Model No.
GNH-NG-B
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.
Male NPT to ISO Parallel

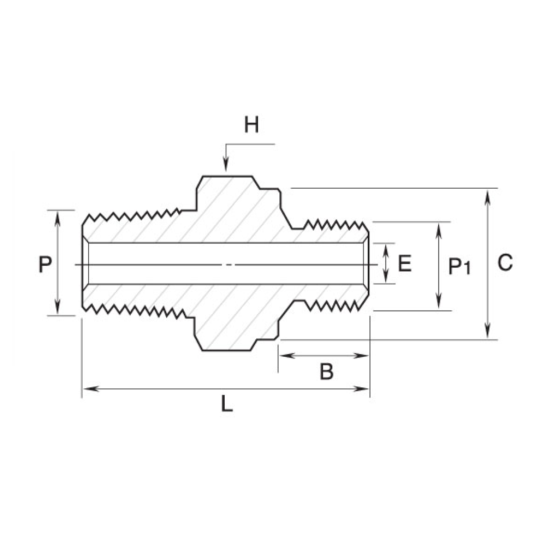

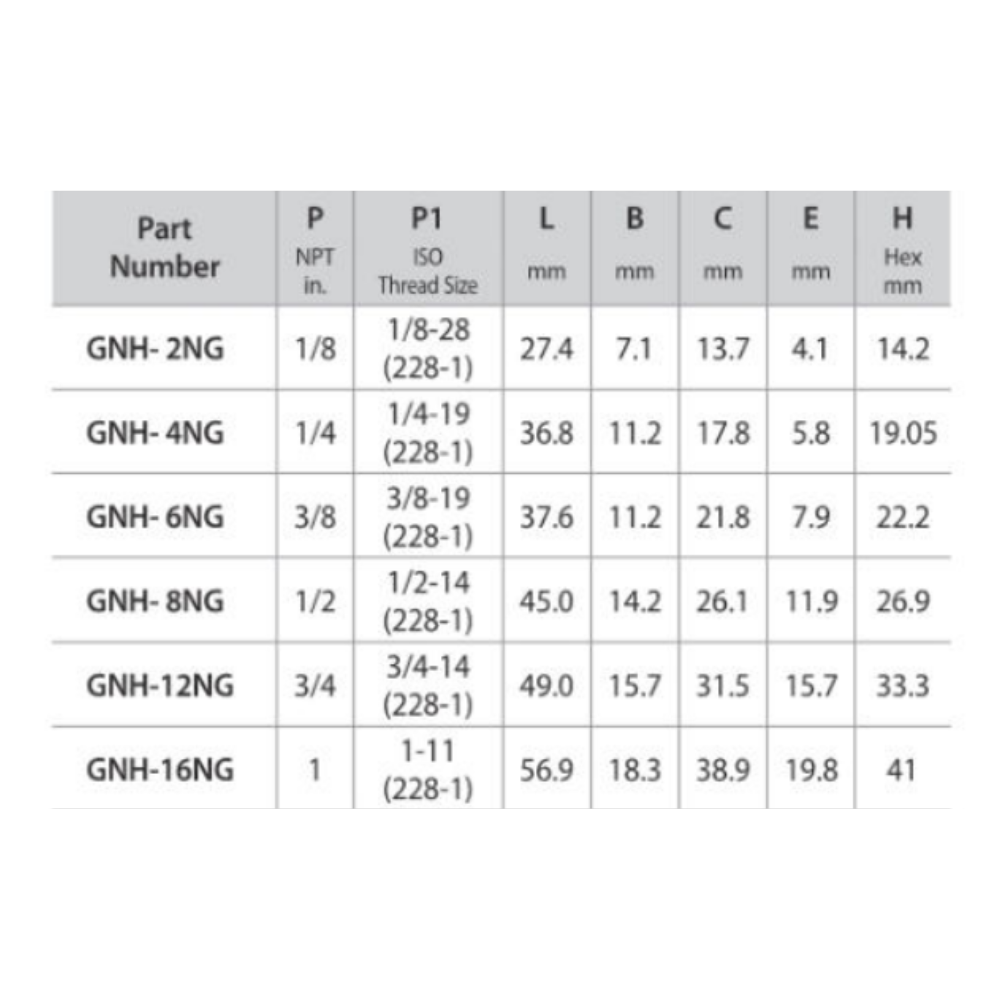

| Part number | P( NPT in.) | P1 (ISO Thread Size) | L(mm) | B (mm) | C(mm) | E(mm) | H(Hex mm) |
| GNH-2NG-B | 1/8 | 1/8 - 28(228-1) | 27.4 | 7.1 | 13.7 | 4.1 | 14.2 |
| GNH-4NG-B | 1/4 | 1/4 - 19(228-1) | 36.8 | 11.2 | 17.8 | 5.8 | 19.05 |
| GNH-6NG-B | 3/8 | 3/8 - 19(228-1) | 37.6 | 11.2 | 21.8 | 7.9 | 22.2 |
| GNH-8NG-B | 1/2 | 1/2 - 14(228-1) | 45.0 | 14.2 | 26.1 | 11.9 | 26.9 |
| GNH-12NG-B | 3/4 | 3/4 - 14(228-1) | 49.0 | 15.7 | 31.5 | 15.7 | 33.3 |
| GNH-16NG-B | 1 | 1/11 (228-1) | 56.9 | 18.3 | 38.9 | 19.8 | 41 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
