DK-LOK SS316 Hollow Hex Plug (Male SAE/MS Straight Thread) GPA Series

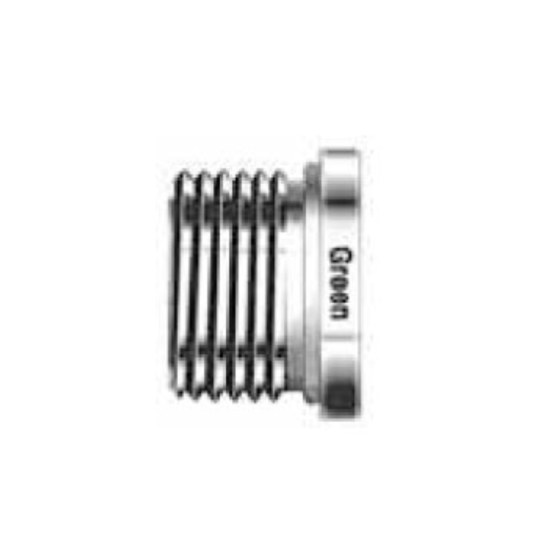

SS316 Hollow Hex Plug (Male SAE/MS Straight Thread)
Model No.
GPA-U-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

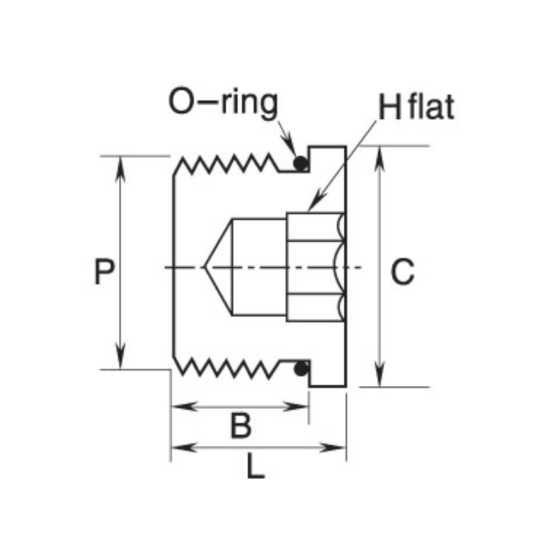

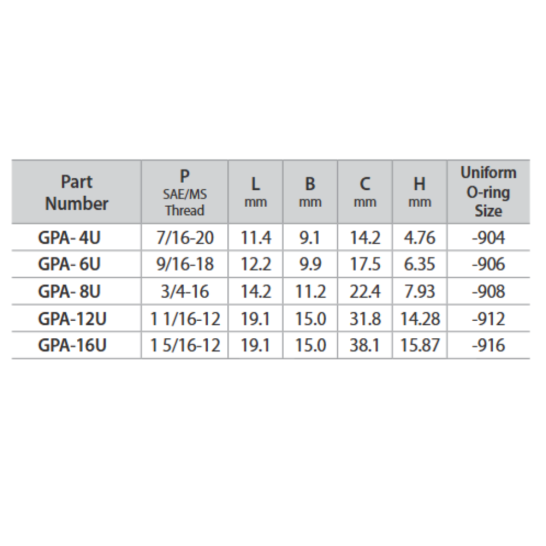

| Part number | P (SAE/MS Thread) | L (mm) | B (mm) | C(mm) | H (mm) | Uniform O-ring size |
| GPA-4U-SS | 7/16-20 | 11.4 | 9.1 | 14.2 | 4.76 | -904 |
| GPA-6U-SS | 9/16-18 | 12.2 | 9.9 | 17.5 | 6.35 | -906 |
| GPA-8U-SS | 3/4-16 | 14.2 | 11.2 | 22.4 | 7.93 | -908 |
| GPA-12U-SS | 1 1/16-12 | 19.1 | 15.0 | 31.8 | 14.28 | -912 |
| GPA-16U-SS | 1 5/16-12 | 19.1 | 15.0 | 38.1 | 15.87 | -916 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
