Brand:

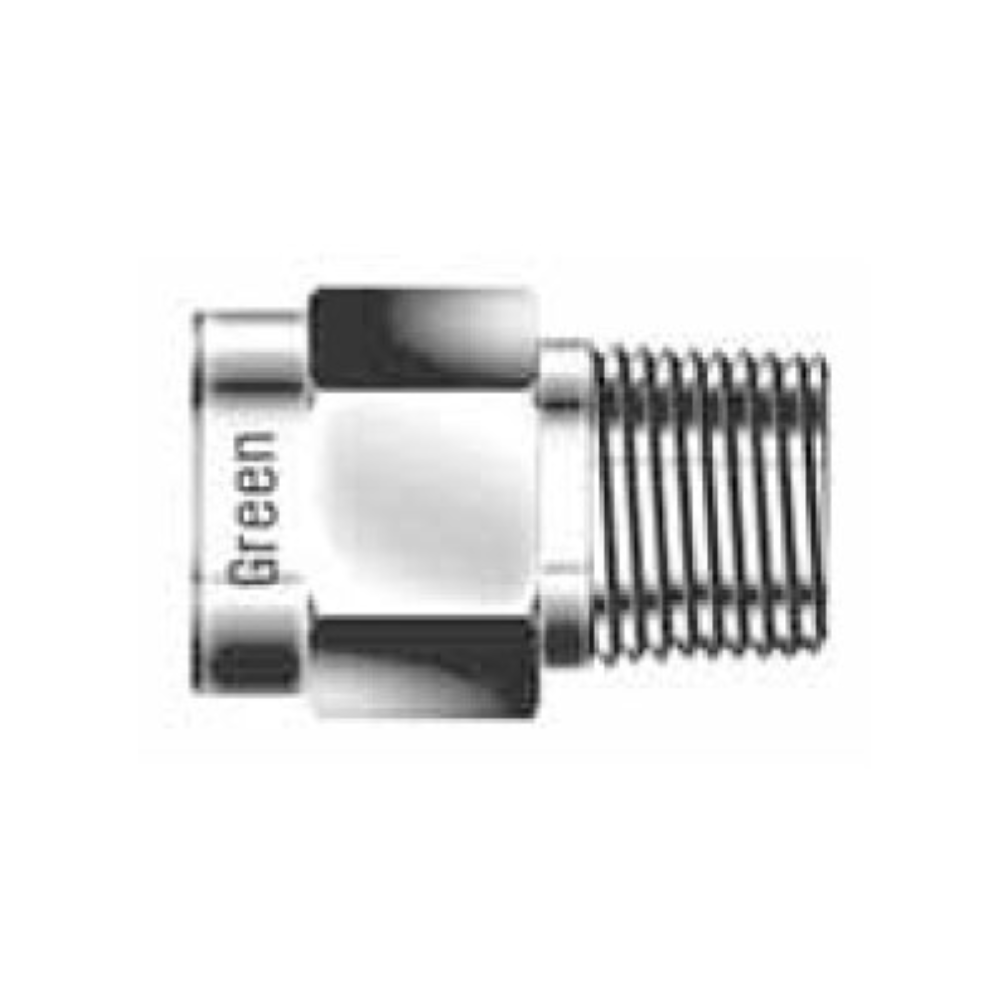

DK-LOK SS316 Pipe Pug (Male NPT) GP Series
SS316 Pipe Plug (Male NPT)
Model No.
GP-N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

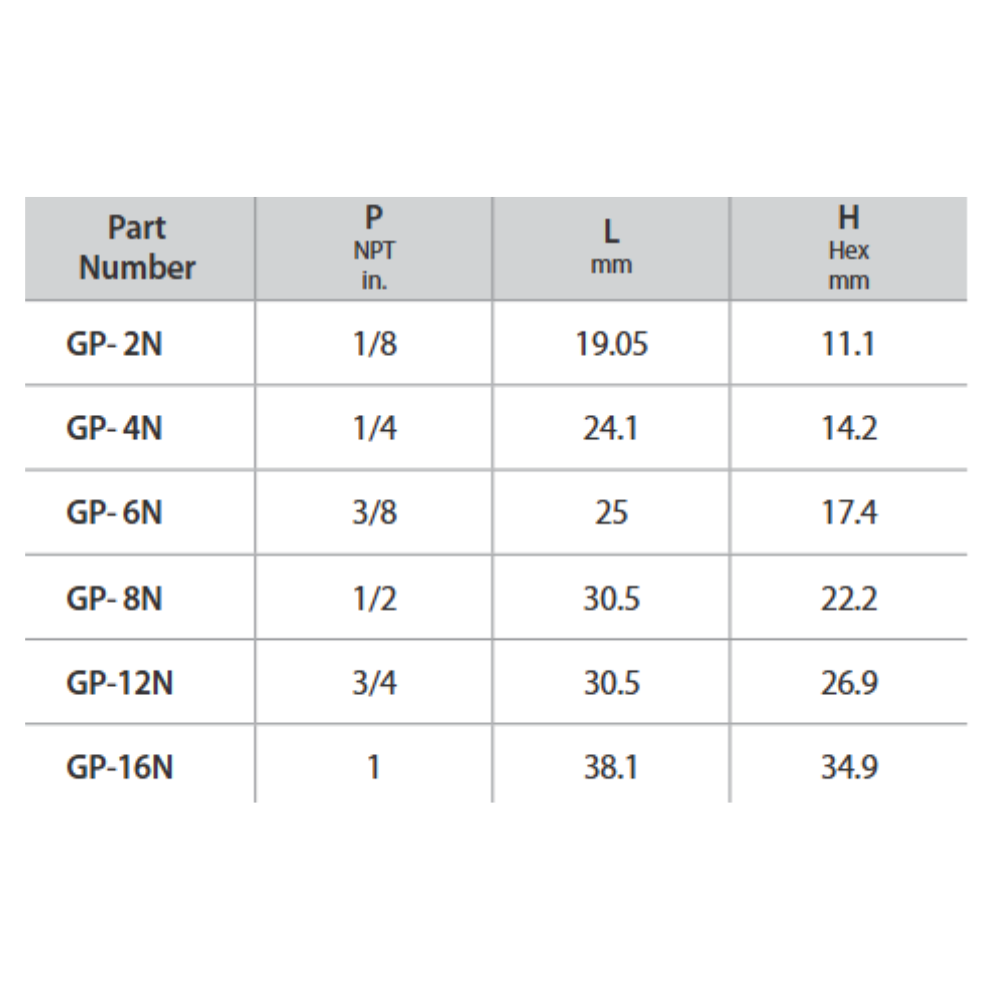

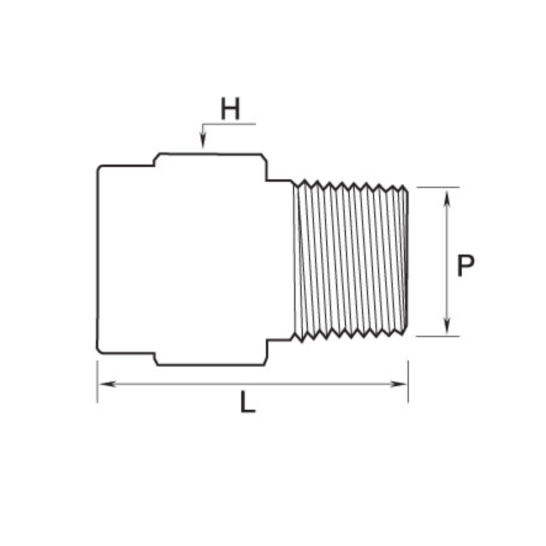

| Part number | P (NPT in.) | L (mm) | H(Hex mm) |
| GP-2N-SS | 1/8 | 19.05 | 11.1 |
| GP-4N-SS | 1/4 | 24.1 | 14.2 |
| GP-6N-SS | 3/8 | 25 | 17.4 |
| GP-8N-SS | 1/2 | 30.5 | 22.2 |
| GP-12N-SS | 3/4 | 30.5 | 26.9 |
| GP-16N-SS | 1 | 38.1 | 34.9 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
