Brand:
DK-LOK SS316 Snubber Fitting - GS Series
SS316 Snubber Fitting
Model No.
GS-MF N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

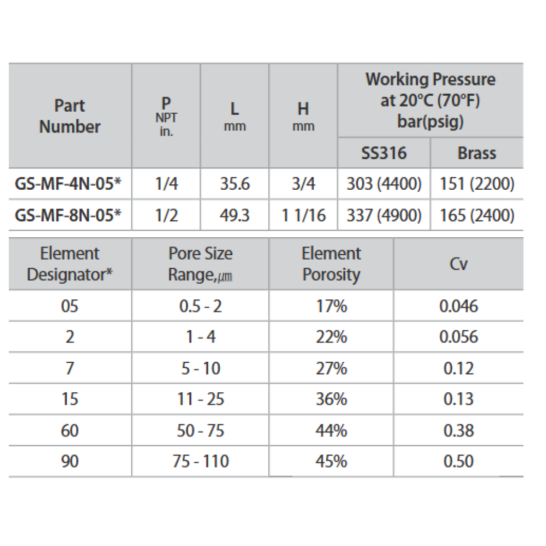

| Part number | Size (NPT inch) |
| GS-MF 4N-05-SS | 1/4 |
| GS-MF 8N-05-SS | 1/2 |

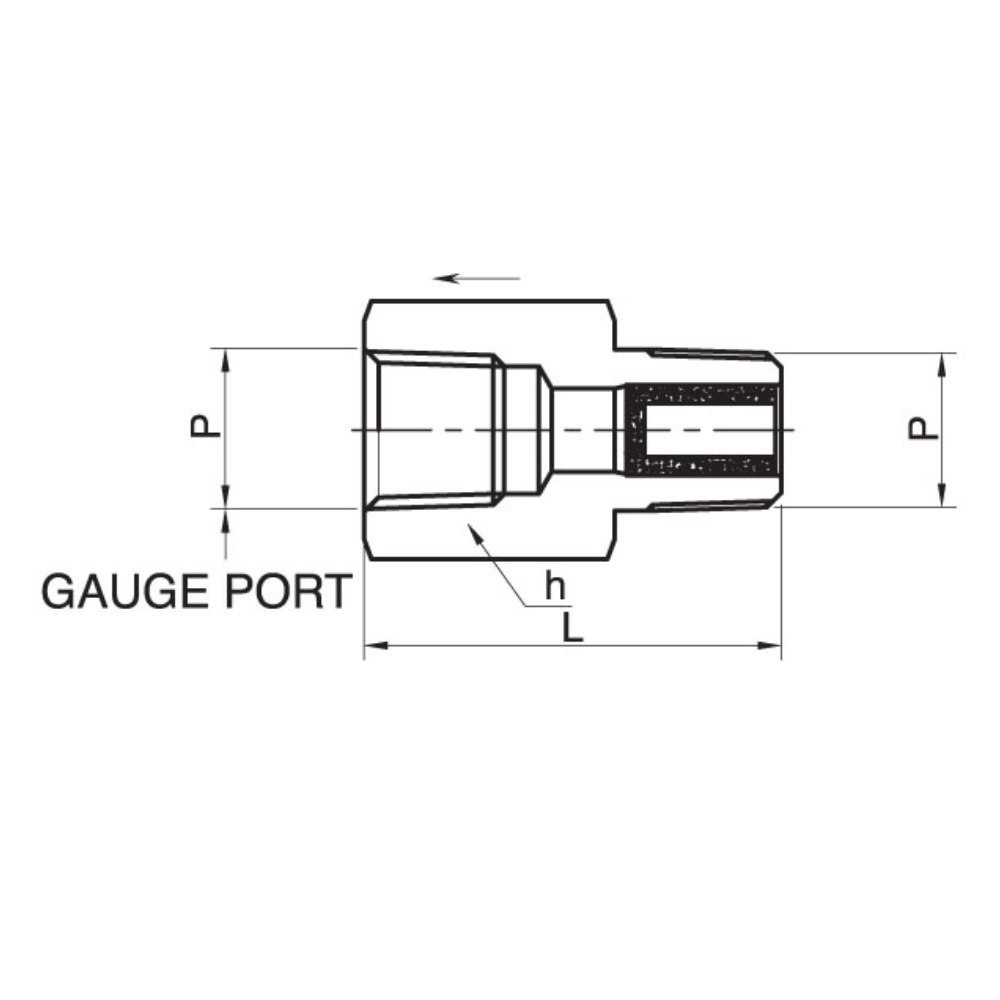

Snubber fitting consists of fitting and sintered SS316 element. This protects pressure gauge or instruments from system pressure surge and shock. The sintered element damps (snubs) the line pressure shock but It eventually allows the gauge to readout the line pressure, reducing the gauge’s response time.
