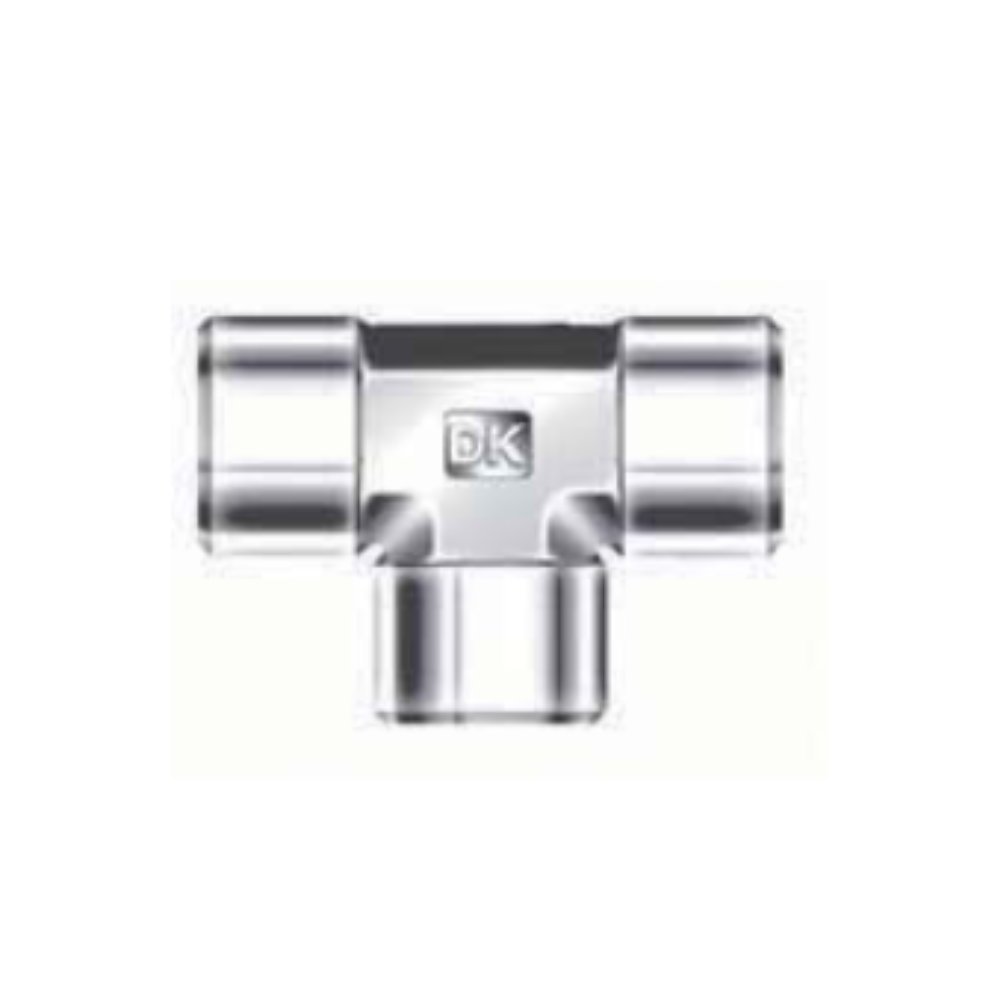

DK-LOK SS316 Tee (Female NPT) GT-10K Series
SS316 Tee (Female NPT) GT-10K
Model No.
GT-N-10K
DK-Lok 10K Thread Fittings are especially designed to assure safe service in the high pressure application of 10 000psig.
The 10,000 psig working pressure satisfy the design requirements of ASME B31.3 Processing Pipe Code.
The fittings are available in 1/8” through 1” pipe threads.
•The Male Pipe Threads are precisely rolled for a high pressure application.
• Fittings are available only in stainless steel material.

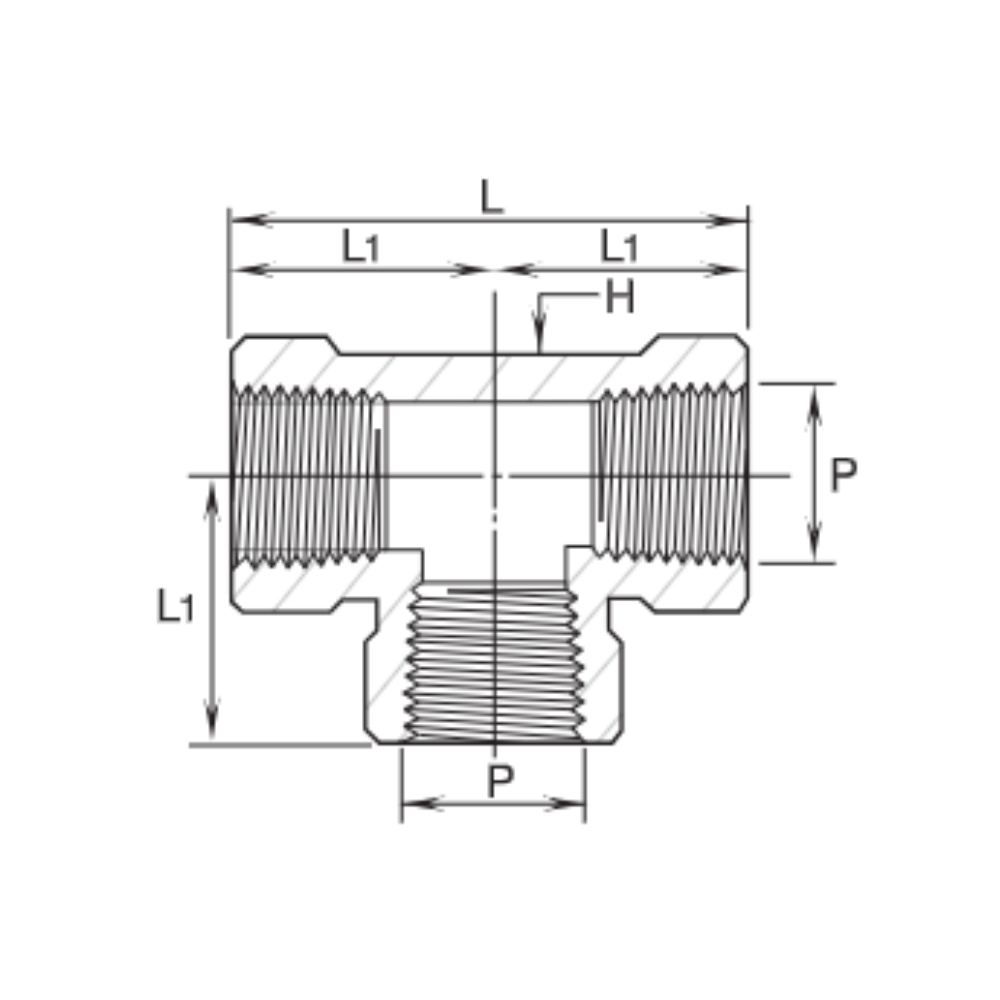

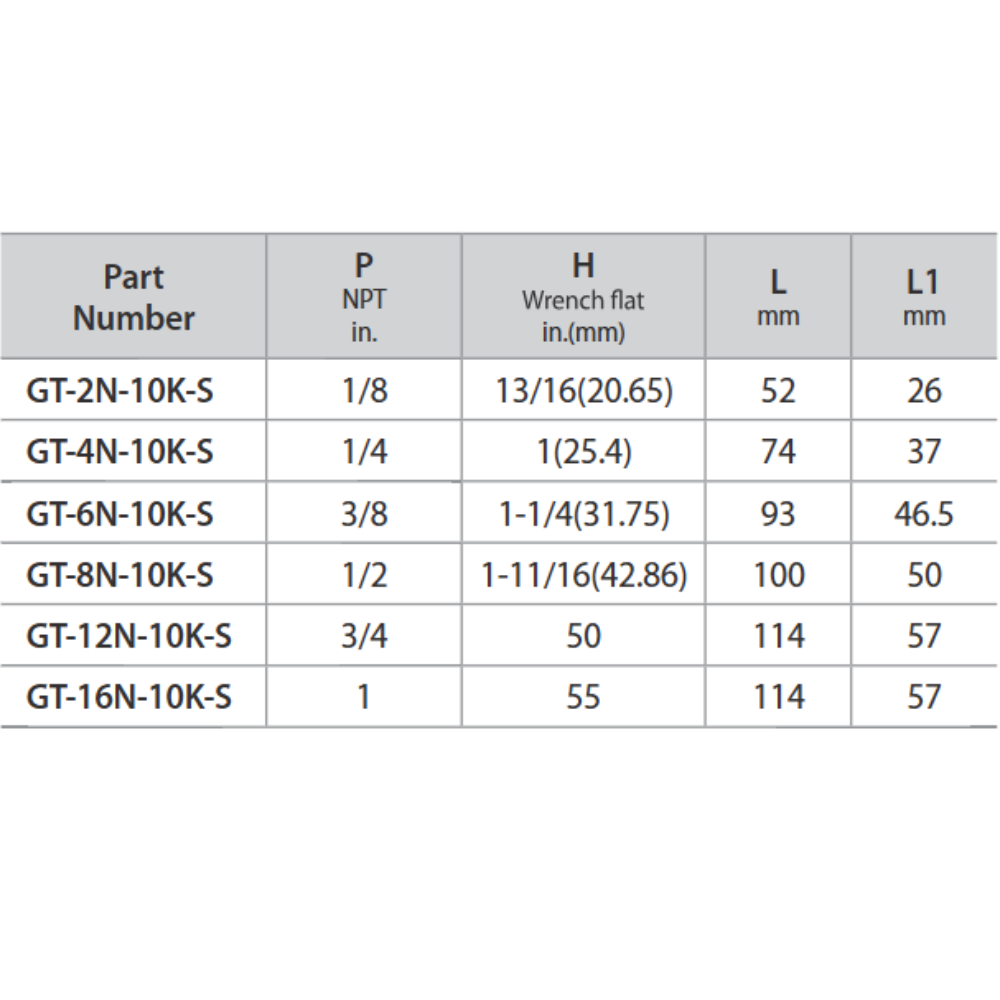

| Part number | P (NPT in.) | L (mm) | L1 (mm) | H ( Wrench Flat mm) |
| GT-2N-10K | 1/8 | 52 | 26 | 13/16(20.65) |
| GT-4N-10K | 1/4 | 74 | 37 | 1(25.4) |
| GT-6N-10K | 3/8 | 93 | 46.5 | 1-1/4(31.75) |
| GT-8N-10K | 1/2 | 100 | 50 | 1-11/16(42.86) |
| GT-12N-10K | 3/4 | 114 | 57 | 50 |
| GT-16N-10K | 1 | 114 | 57 | 55 |
