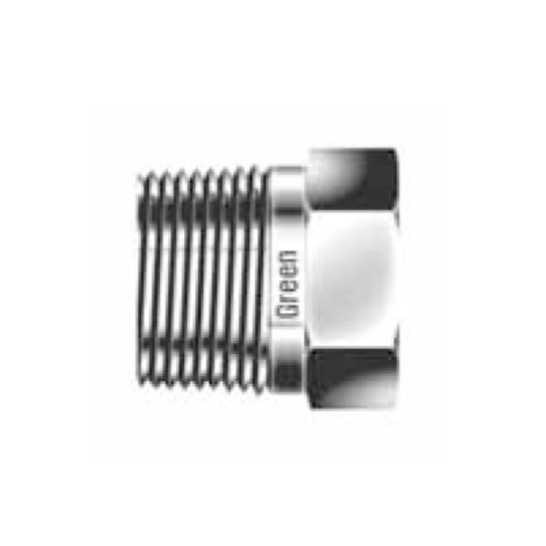

DK-LOK BRASS Reducing Hex Bushing (Male NPT to reduced female NPT) GHB Series
BRASS Reducing Hex Bushing (Male NPT to reduced female NPT)
Model No.
GHB-N-B
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

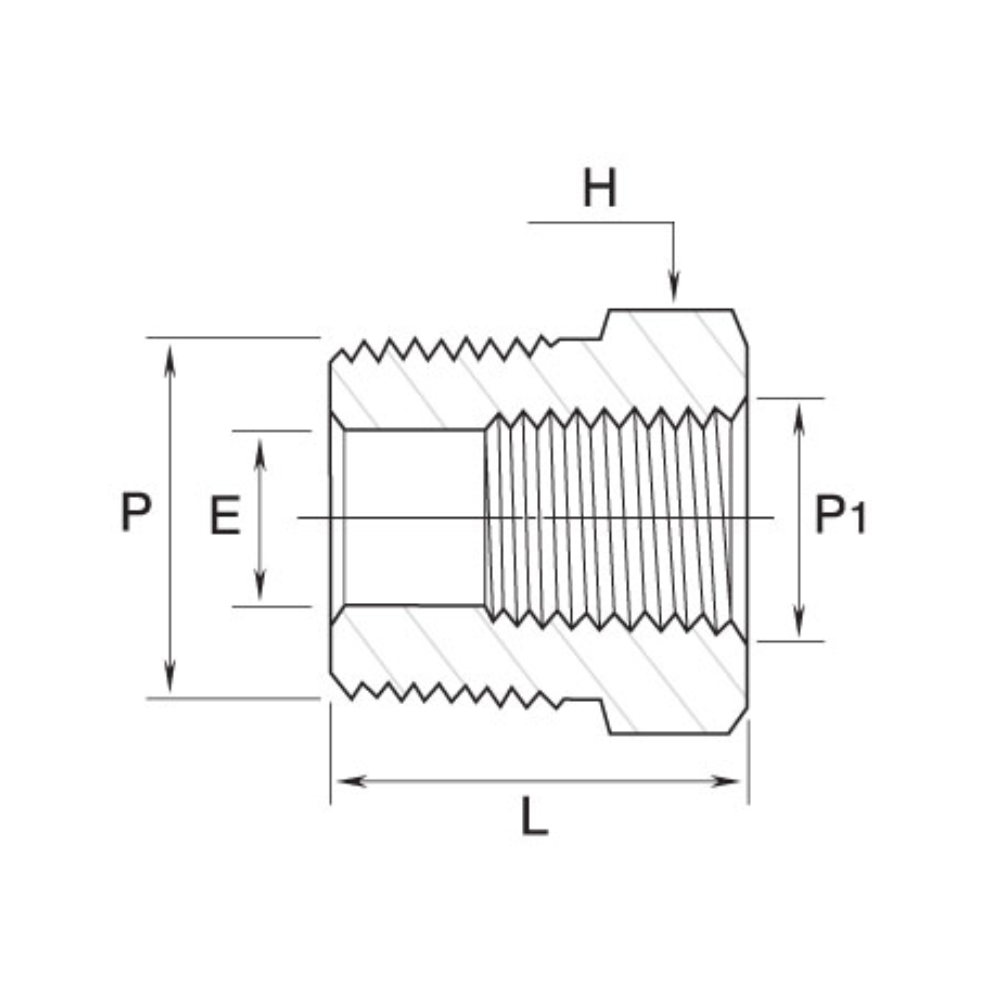

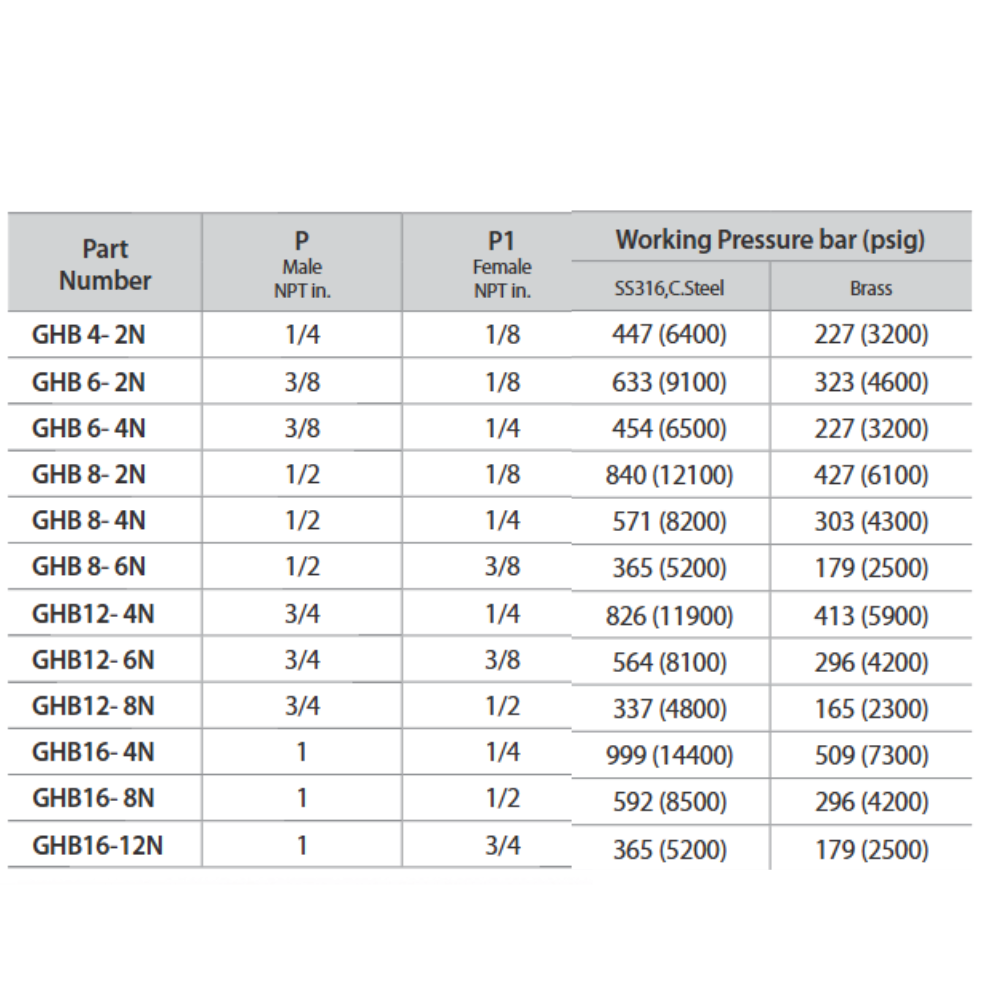

| Part number | P ( Male NPT in.) | P1 (Female NPT in.) | L (mm) | E(mm) | H(Hex mm) |
| GHB 4-2N-B | 1/4 | 1/8 | 26.7 | 7.1 | 14.2 |
| GHB 6-2N-B | 3/8 | 1/8 | 21.8 | 8.5 | 17.4 |
| GHB 6-4N-B | 3/8 | 1/4 | 30.0 | 9.6 | 19.05 |
| GHB 8-2N-B | 1/2 | 1/8 | 27.4 | 8.5 | 22.2 |
| GHB 8-4N-B | 1/2 | 1/4 | 27.4 | 11.7 | 22.2 |
| GHB 8-6N-B | 1/2 | 3/8 | 35.6 | 11.9 | 22.2 |
| GHB 12-4N-B | 3/4 | 1/4 | 27.4 | 11.4 | 26.9 |
| GHB 12-6N-B | 3/4 | 3/8 | 27.4 | 15.0 | 26.9 |
| GHB 12-8N-B | 3/4 | 1/2 | 41.4 | 15.7 | 26.9 |
| GHB 16-4N-B | 1 | 1/4 | 34.8 | 11.4 | 34.9 |
| GHB 16-8N-B | 1 | 1/2 | 34.8 | 18.5 | 34.9 |
| GHB 16-12N-B | 1 | 3/4 | 34.8 | 22.4 | 34.9 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
