DK-LOK
Fixed cracking pressure valves
Brand:

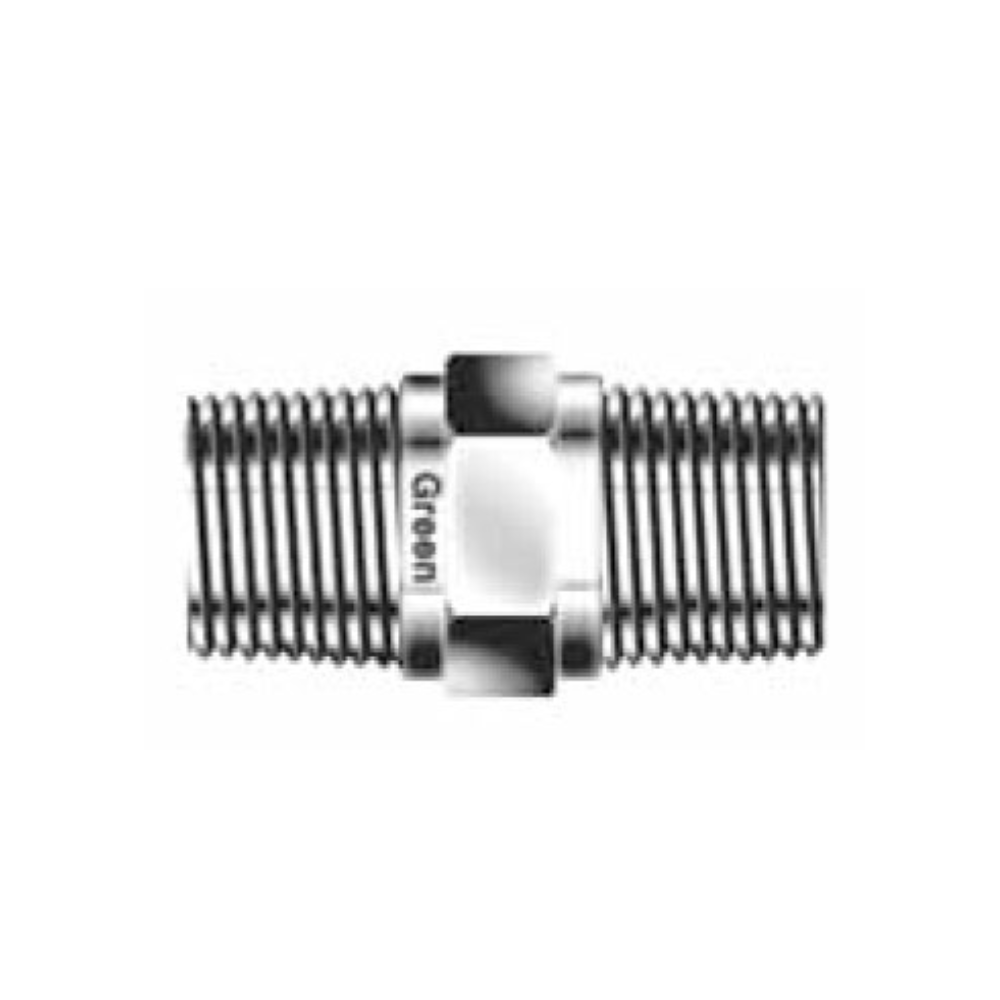

DK-LOK SS316 Hex Nipple (Male NPT to ISO Tapered) GNH Series
SS316 Hex Nipple (Male NPT to ISO Tapered)
Model No.
GNH-NR-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.
Male NPT to ISO tapered

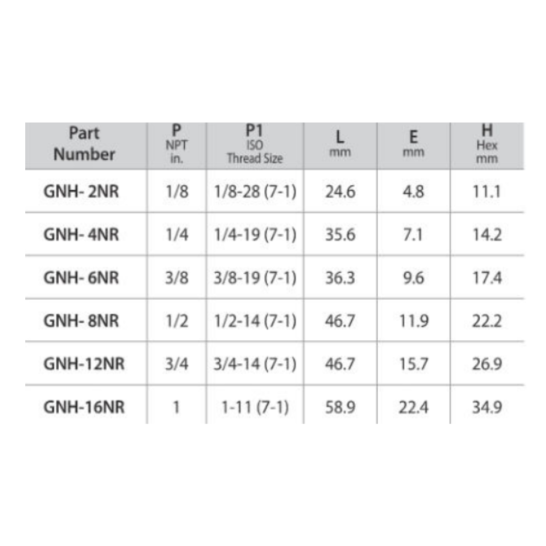

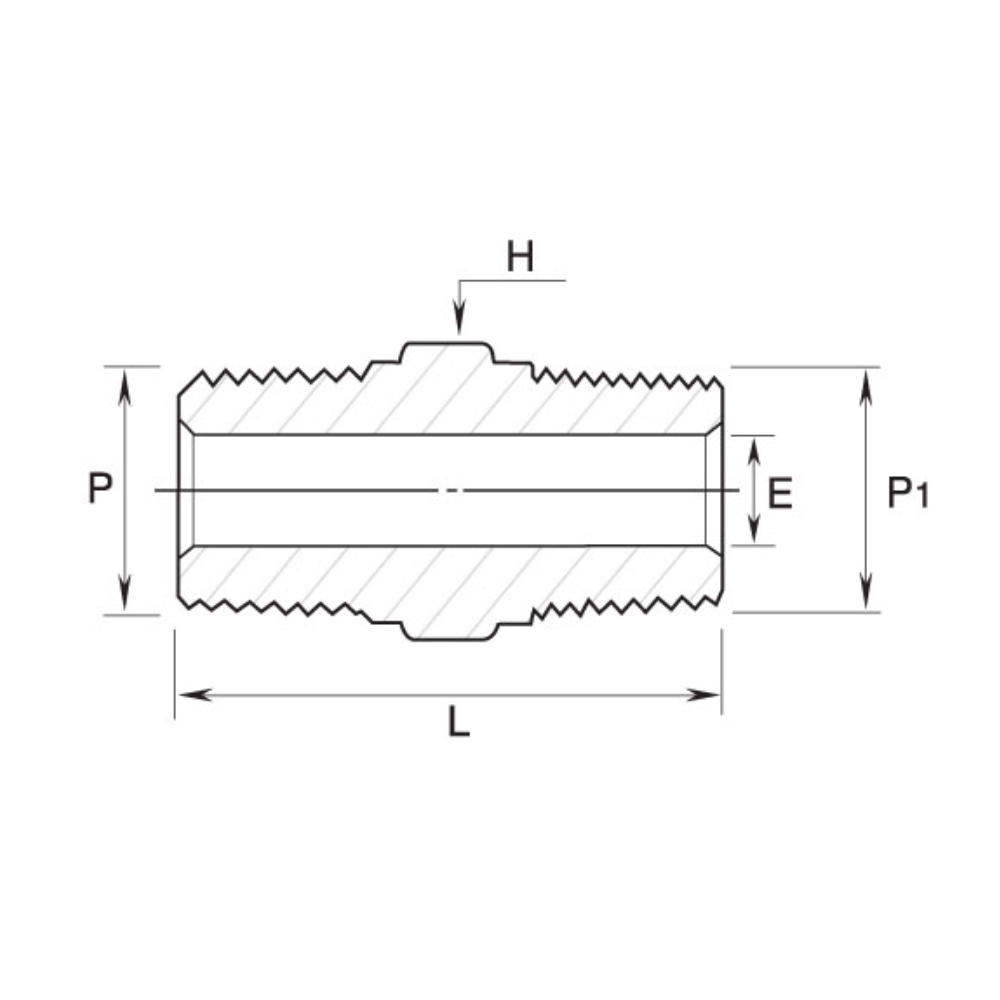

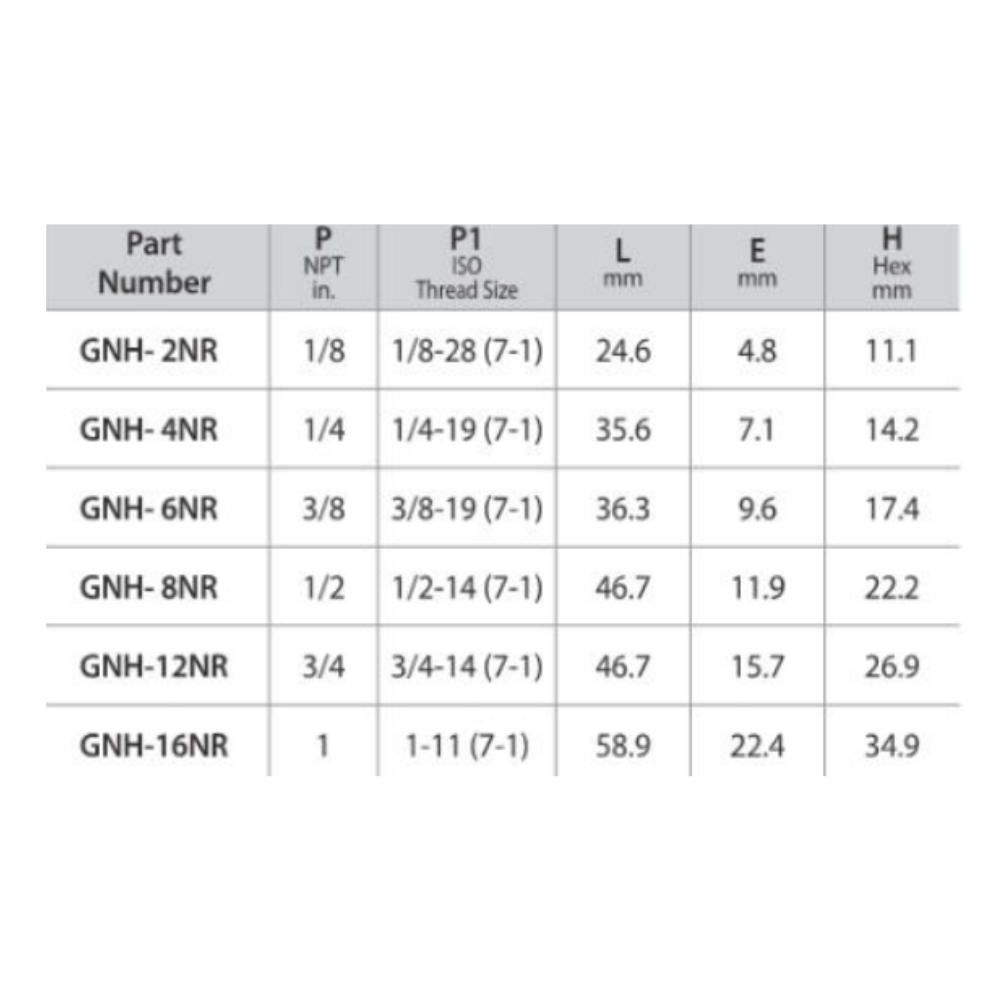

| Part number | P(NPT in.) | P1 (ISO Thread Size) | L(mm) | E(mm) | H(Hex mm) |
| GNH-2NR-SS | 1/8 | 1/8-28(7-1) | 24.6 | 4.8 | 11.1 |
| GNH-4NR-SS | 1/4 | 1/4-19(7-1) | 35.6 | 7.1 | 14.2 |
| GNH-6NR-SS | 3/8 | 3/8-19(7-1) | 36.3 | 9.6 | 17.4 |
| GNH-8NR-SS | 1/2 | 1/2-14(7-1) | 46.7 | 11.9 | 22.2 |
| GNH-12NR-SS | 3/4 | 3/4-14(7-1) | 46.7 | 15.7 | 26.9 |
| GNH-16NR-SS | 1 | 1-11(7-1) | 58.9 | 22.4 | 34.9 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
