Brand:

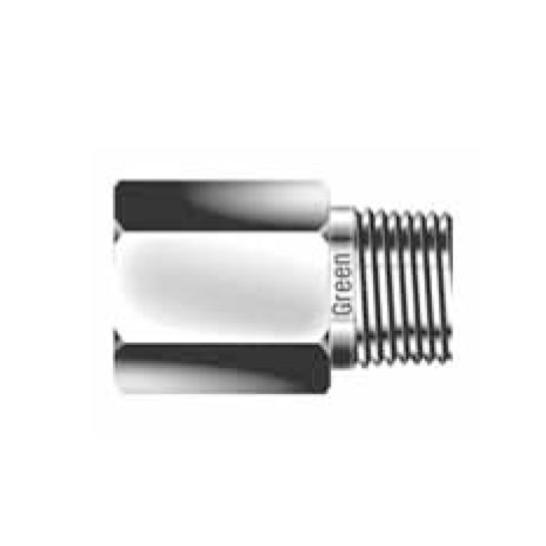

DK-LOK SS316 Adapter (Male ISO tapered to Female NPT) GACMF Series
SS316 Adapter (Male ISO tapered to Female NPT)
Model No.
GACMF-RN-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

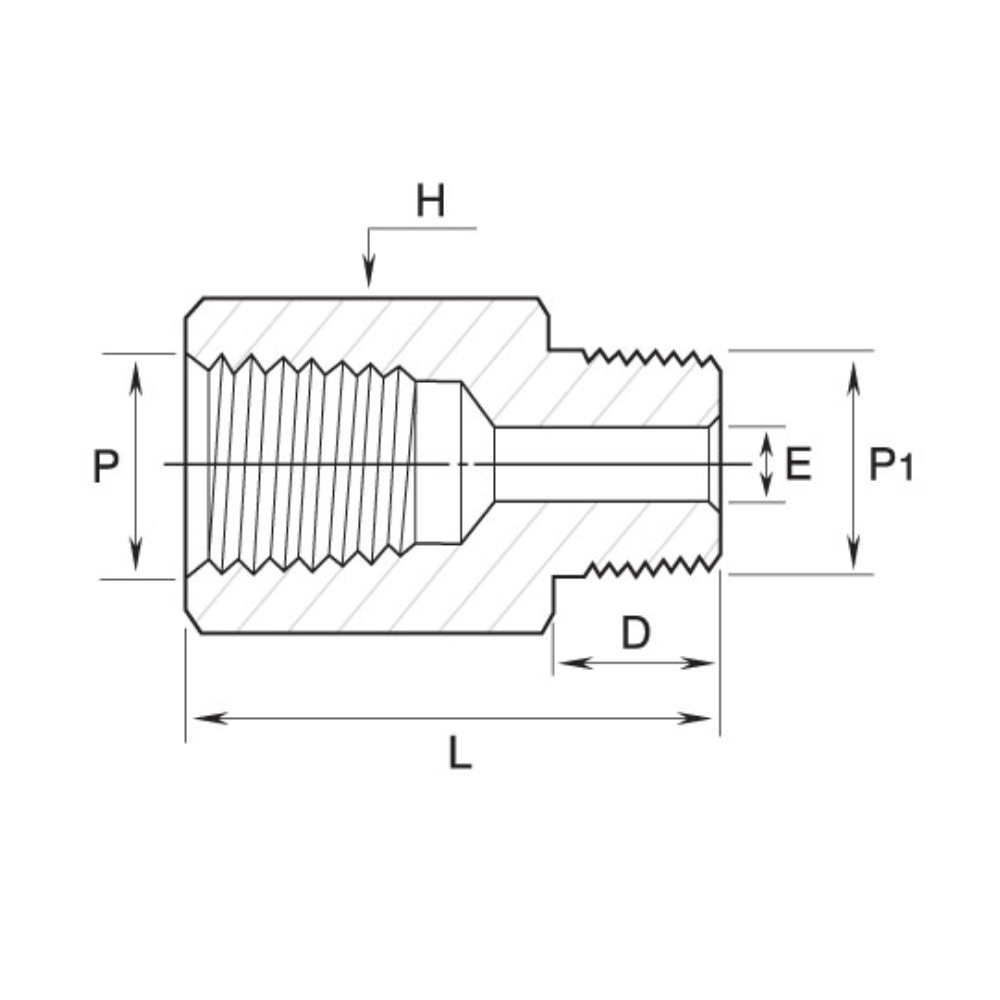

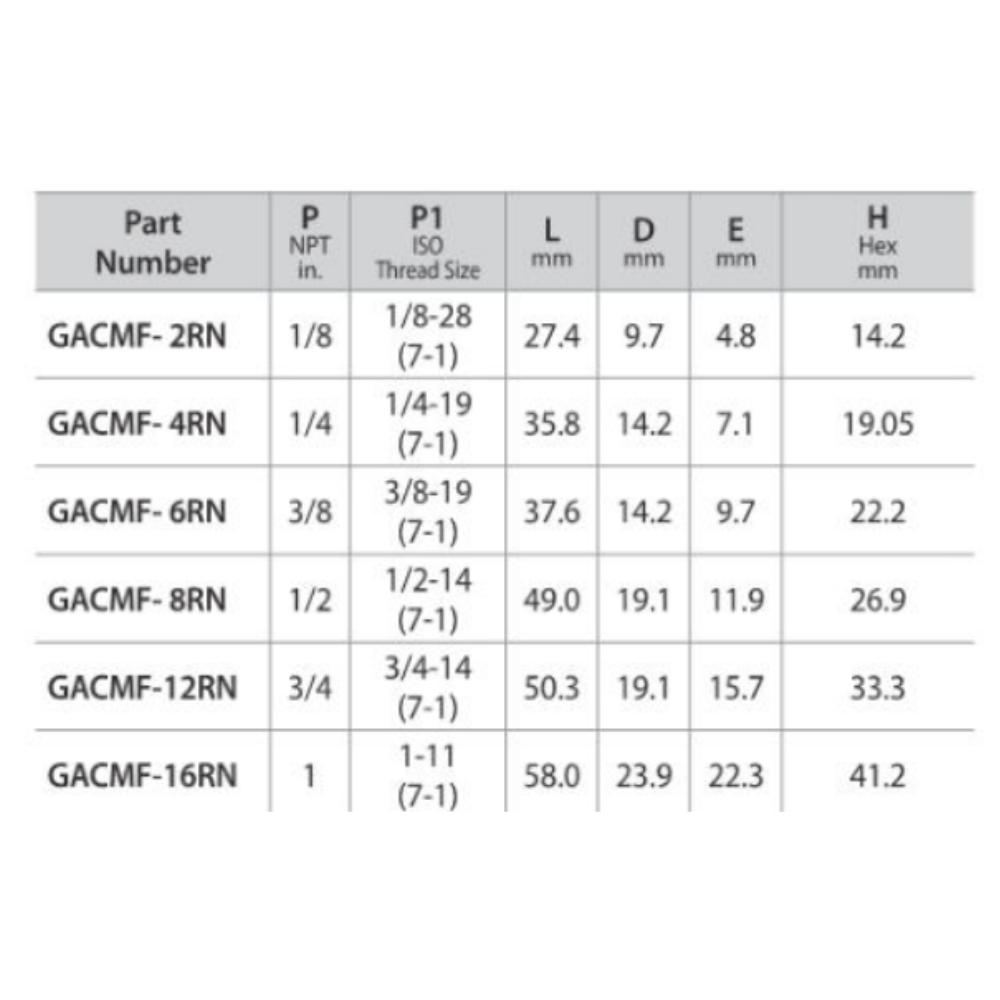

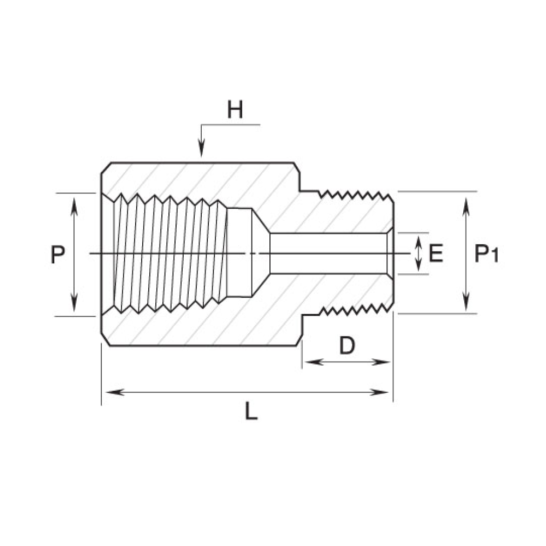

| Part number | P (NPT in.) | P1 (ISO Thread Size) | L (mm) | D(mm) | E(mm) | H(Hex mm) |
| GACMF-2RN-SS | 1/8 | 1/8-28(7-1) | 27.4 | 9.7 | 4.8 | 14.2 |
| GACMF-2RN-SS | 1/4 | 1/4-19(7-1) | 35.8 | 14.2 | 7.1 | 19.05 |
| GACMF-2RN-SS | 3/8 | 3/8-19(7-1) | 37.6 | 14.2 | 9.7 | 22.2 |
| GACMF-2RN-SS | 1/2 | 1/2-14(7-1) | 49.0 | 19.1 | 11.9 | 26.9 |
| GACMF-2RN-SS | 3/4 | 3/4-14(7-1) | 50.3 | 19.1 | 15.7 | 33.3 |
| GACMF-2RN-SS | 1 | 1-11(7-1) | 58.0 | 23.9 | 22.3 | 41.2 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
