Brand:
DK-LOK SS316 Hex Coupling (Female NPT both ends) GCG Series

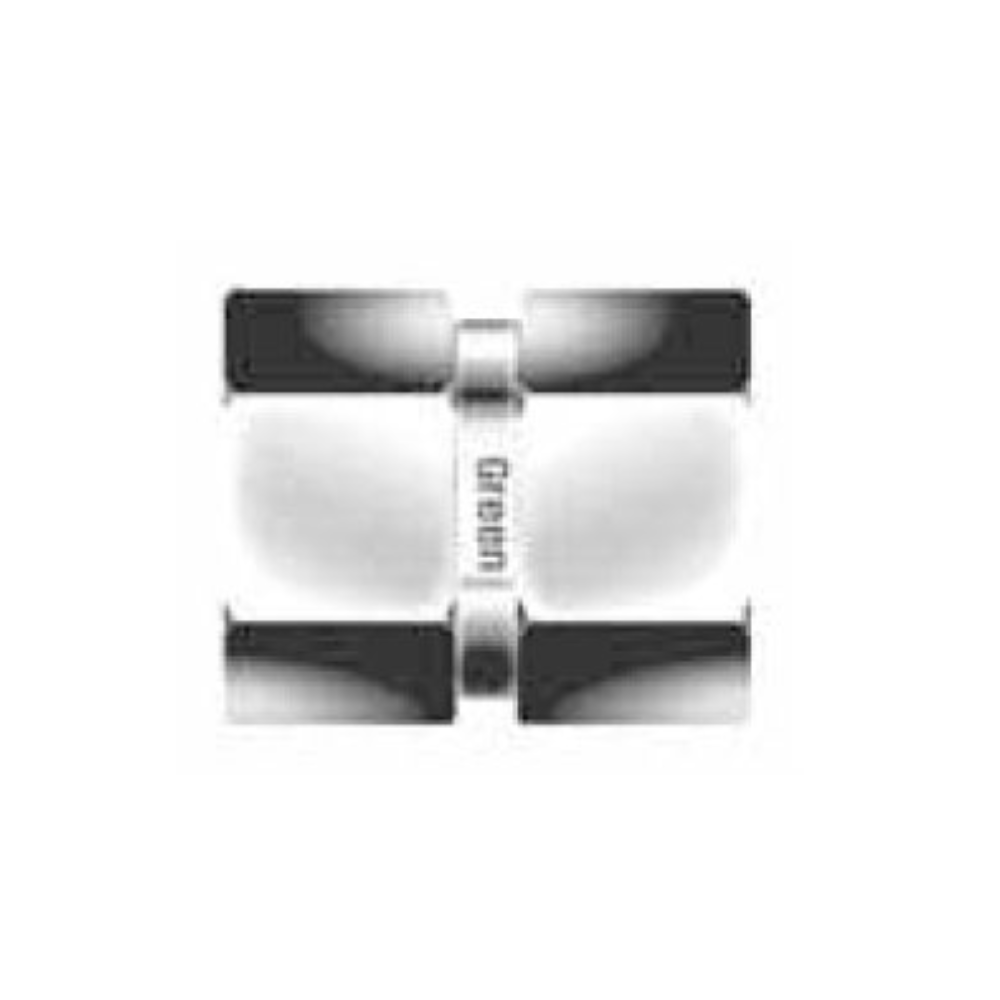

SS316 Hex Coupling (Female NPT both ends)
Model No.
GCG-N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

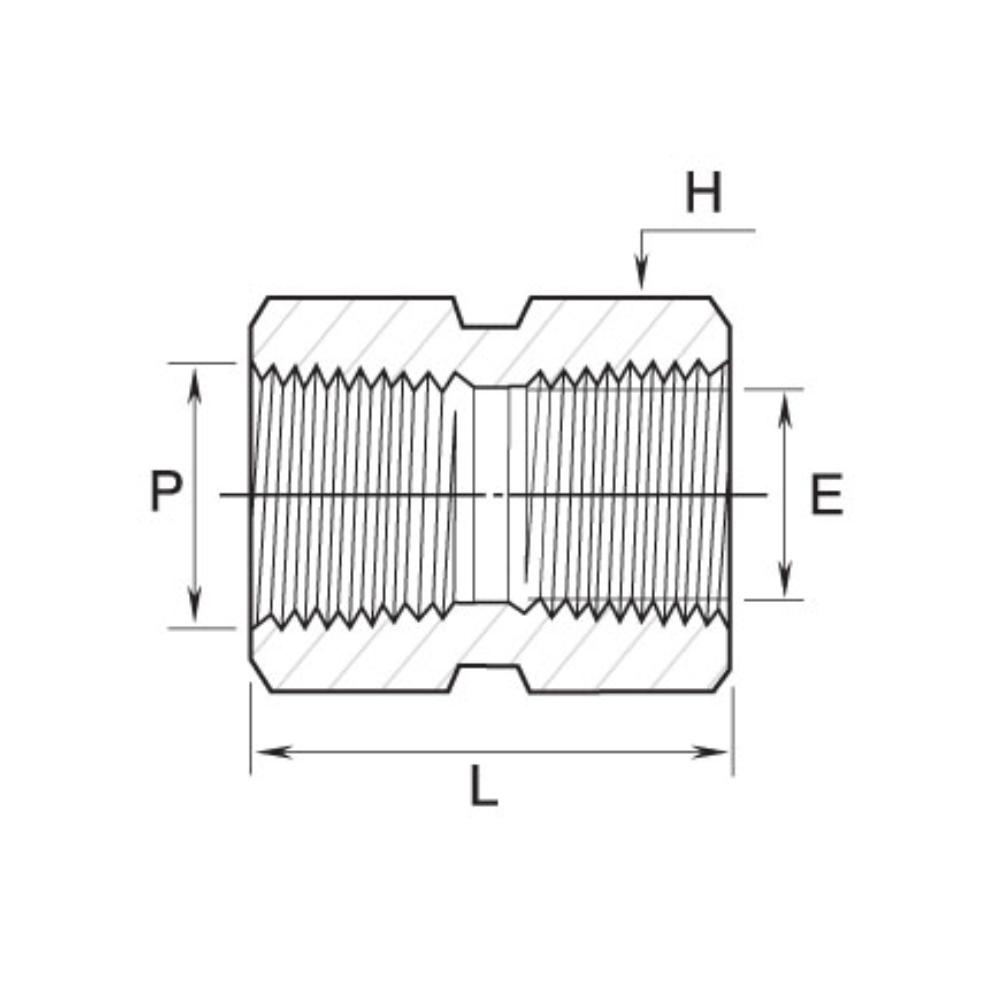

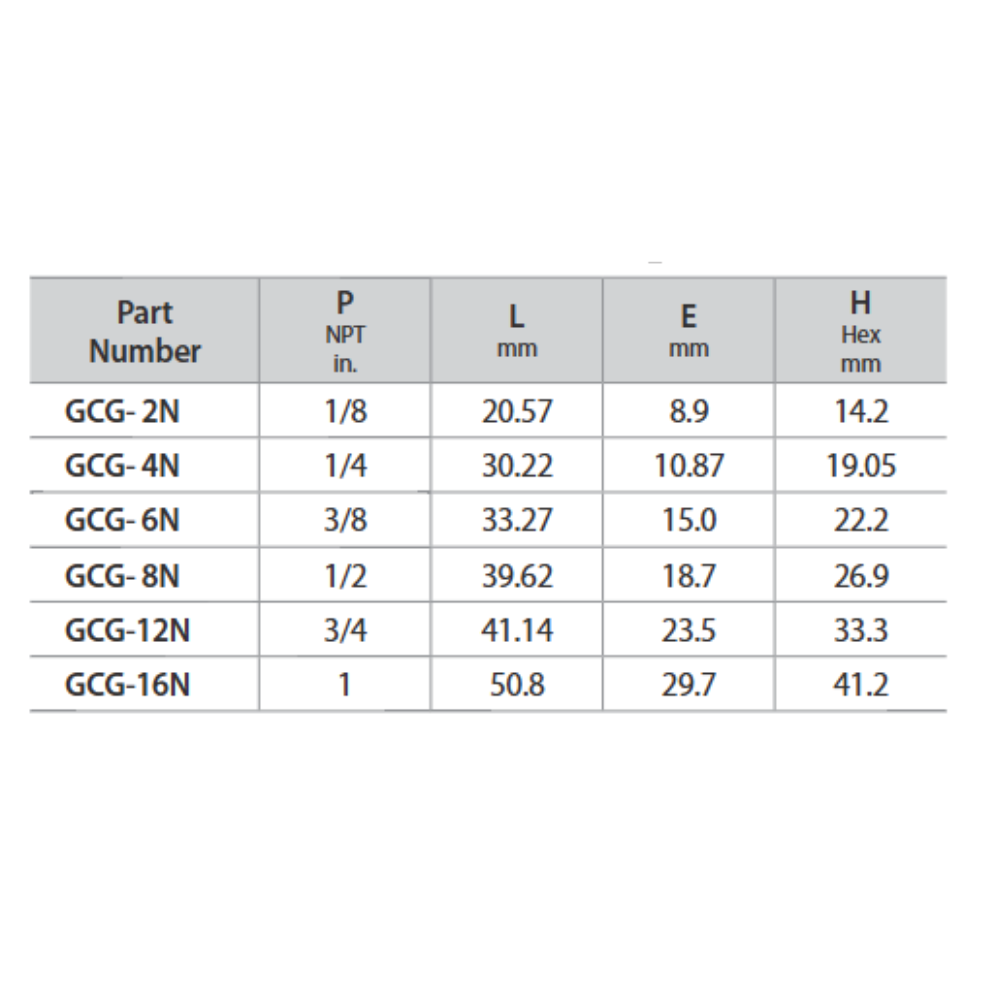

| Part number | P (NPT in.) | L (mm) | E (mm) | H(Hex mm) |
| GCG-2N-SS | 1/8 | 20.57 | 8.9 | 14.2 |
| GCG-4N-SS | 1/4 | 30.22 | 10.87 | 19.05 |
| GCG-6N-SS | 3/8 | 33.27 | 15.0 | 22.2 |
| GCG-8N-SS | 1/2 | 39.62 | 18.7 | 26.9 |
| GCG-12N-SS | 3/4 | 41.14 | 23.5 | 33.3 |
| GCG-16N-SS | 1 | 50.8 | 29.7 | 41.2 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
