Brand:
DK-LOK BRASS Branch Tee (Female to female to male NPT) GTB Series
BRASS Branch Tee (Female to female to male NPT)
Model No.
GTB-N-B
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

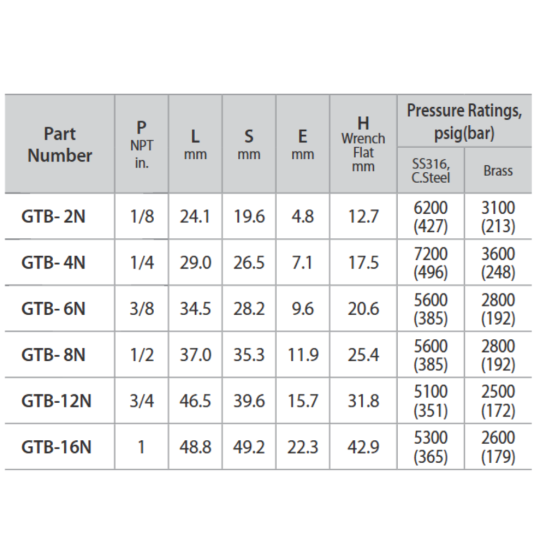

| Part number | P (NPT in.) | L (mm) | S (mm) | E (mm) | H ( Wrench Flat mm) |
| GTB-2N-B | 1/8 | 24.1 | 19.6 | 4.8 | 12.7 |
| GTB-4N-B | 1/4 | 29.0 | 26.5 | 7.1 | 17.5 |
| GTB-6N-B | 3/8 | 34.5 | 28.2 | 9.6 | 20.6 |
| GTB-8N-B | 1/2 | 37.0 | 35.3 | 11.9 | 25.4 |
| GTB-12N-B | 3/4 | 46.5 | 39.6 | 15.7 | 31.8 |
| GTB-16N-B | 1 | 48.8 | 49.2 | 22.3 | 42.9 |
