Brand:

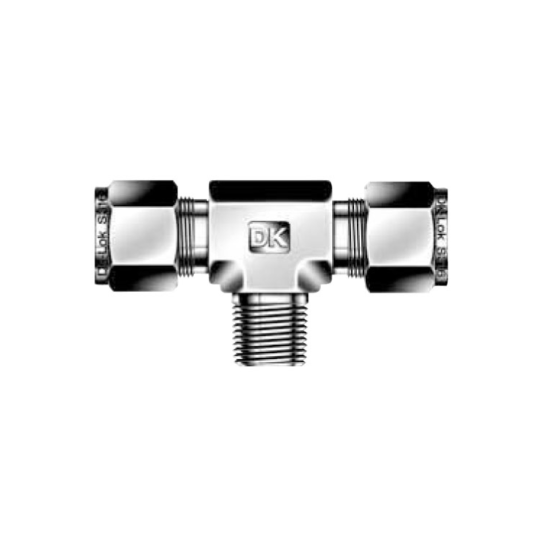

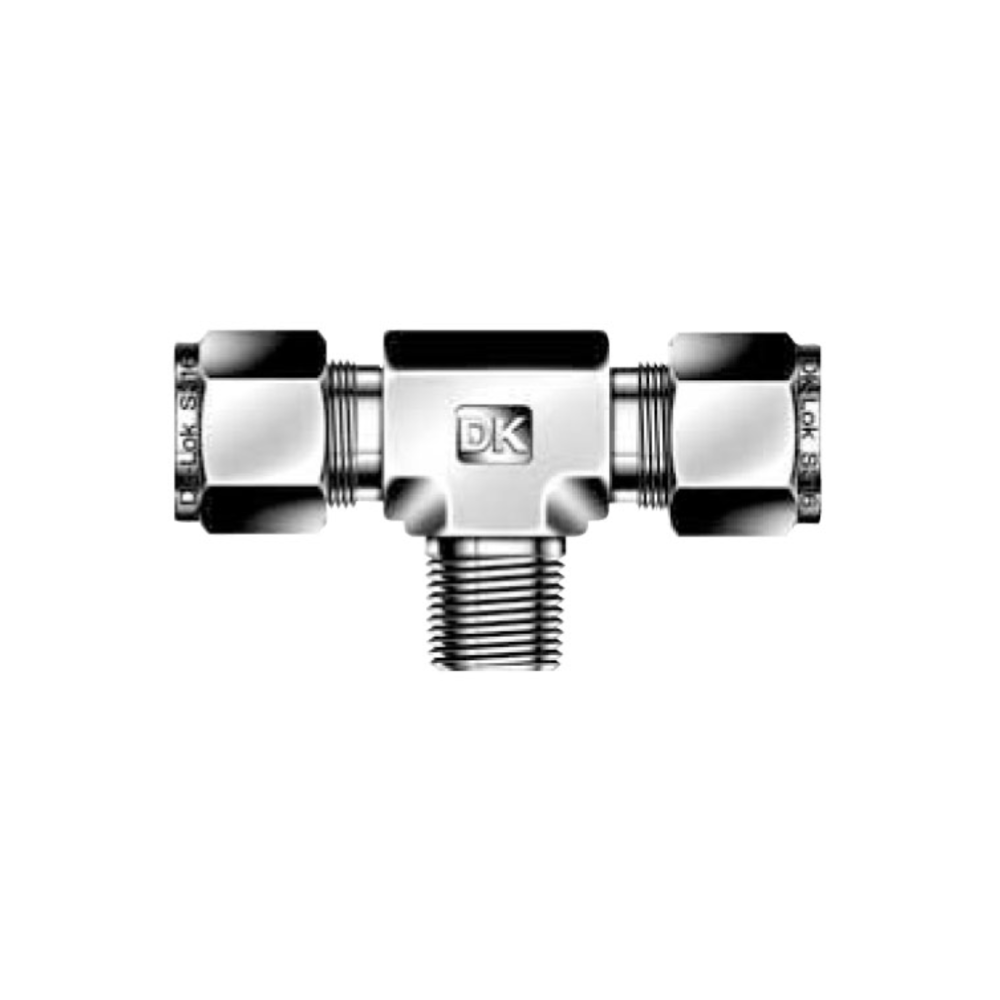

DK-LOK SS316 Male Branch Tee DTBM-R Metric Series
Tube to Male Pipe
Model No.
DTBMXM-XR-SS
DK-Lok DTBM-R male connectors are designed to connect individual fractional or metric tube lines to a female British Standard Pipe Tapered (BSPT) threaded port in both single ferrule and double ferrule designs.
|

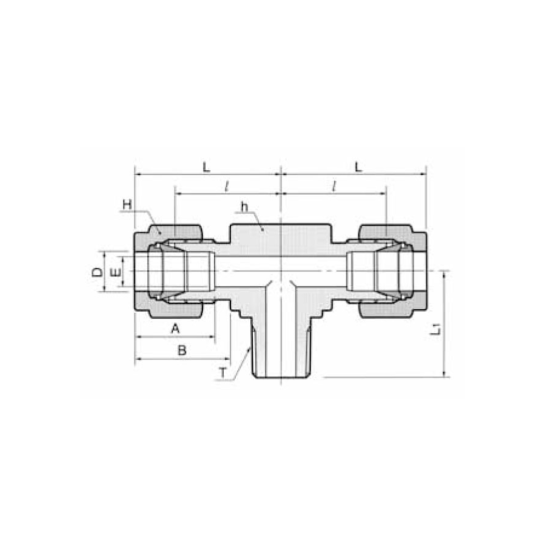

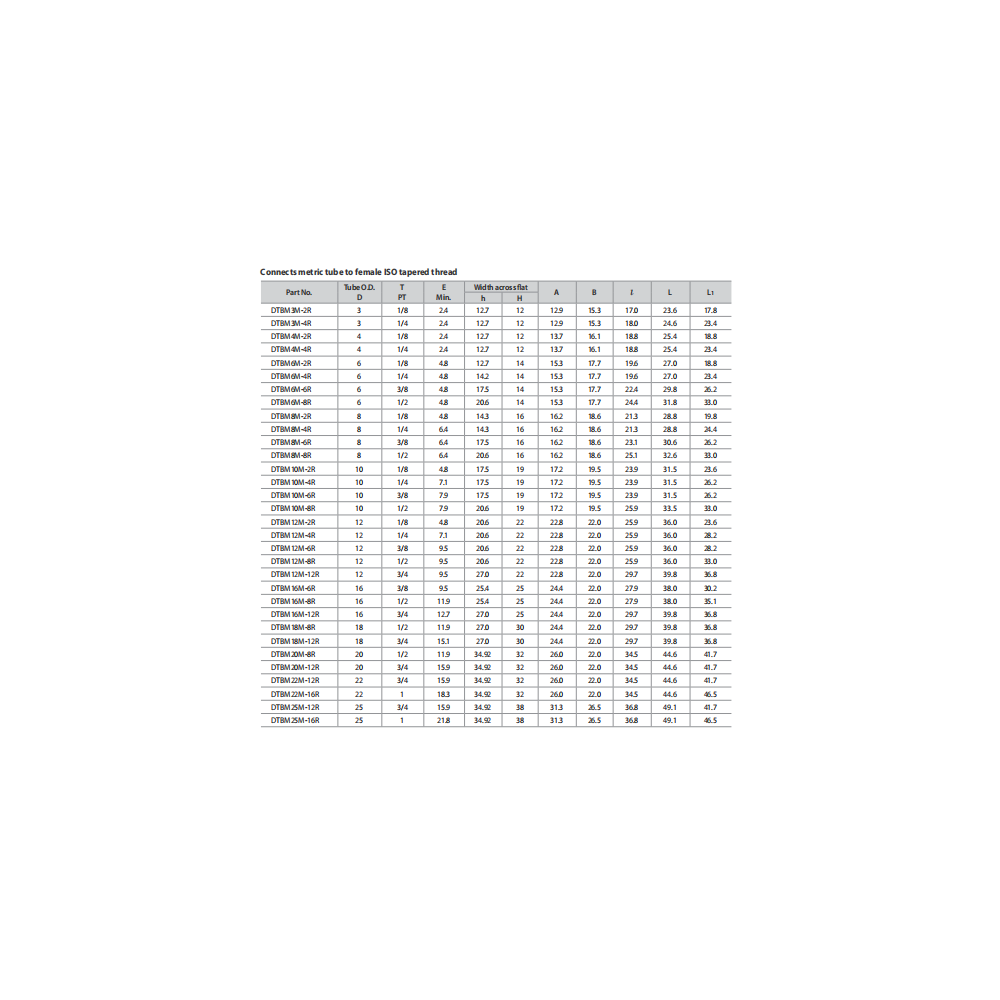

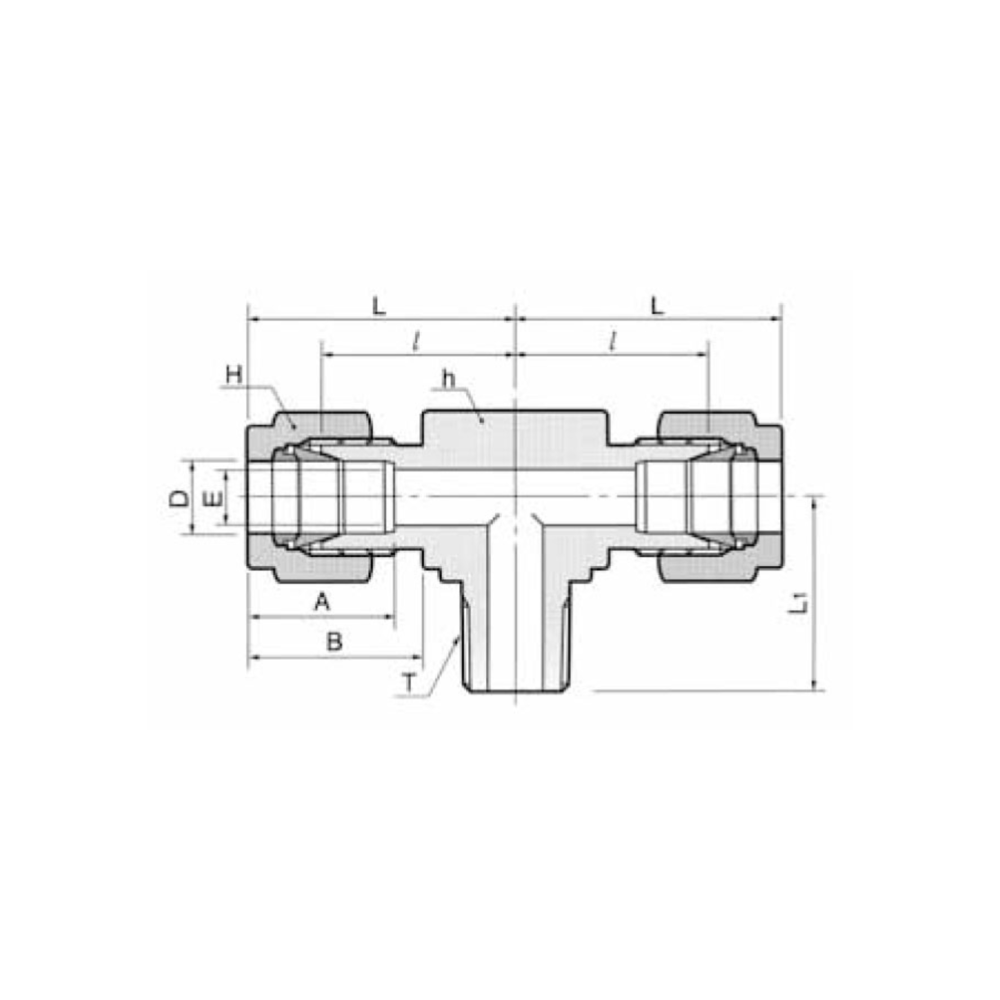

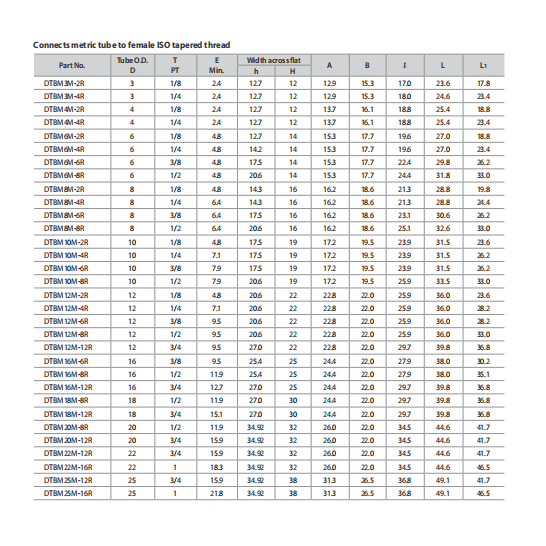

Part No |
Tube O.D. D (mm) |
T PT |
|
DTBM3M-2R |
3 |
1/8 |
|
DTBM3M-4R |
3 |
1/4 |
|
DTBM4M-2R |
4 |
1/8 |
|
DTBM4M-4R |
4 |
1/4 |
|
DTBM6M-2R |
6 |
1/8 |
|
DTBM6M-4R |
6 |
1/4 |
|
DTBM6M-6R |
6 |
3/8 |
|
DTBM6M-8R |
6 |
1/2 |
|
DTBM8M-2R |
8 |
1/8 |
|
DTBM8M-4R |
8 |
1/4 |
|
DTBM8M-6R |
8 |
3/8 |
|
DTBM8M-8R |
8 |
1/2 |
|
DTBM10M-2R |
10 |
1/8 |
|
DTBM10M-4R |
10 |
1/4 |
|
DTBM10M-6R |
10 |
3/8 |
|
DTBM10M-8R |
10 |
1/2 |
|
DTBM12M-2R |
12 |
1/8 |
|
DTBM12M-4R |
12 |
1/4 |
|
DTBM12M-6R |
12 |
3/8 |
|
DTBM12M-8R |
12 |
1/2 |
|
DTBM12M-12R |
12 |
3/4 |
|
DTBM16M-6R |
16 |
3/8 |
|
DTBM16M-8R |
16 |
1/2 |
|
DTBM16M-12R |
16 |
3/4 |
|
DTBM18M-8R |
18 |
1/2 |
|
DTBM18M-12R |
18 |
3/4 |
|
DTBM20M-8R |
20 |
1/2 |
|
DTBM20M-12R |
20 |
3/4 |
|
DTBM22M-12R |
22 |
3/4 |
|
DTBM22M-16R |
22 |
1 |
|
DTBM25M-12R |
25 |
3/4 |
|
DTBM25M-16R |
25 |
1 |
