Brand:

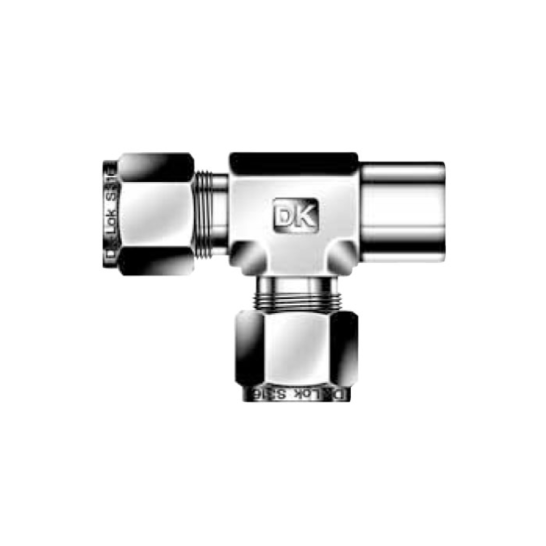

DK-LOK SS316 Female Run Tee DTRF-N Metric Series
Tube to Female Pipe
Model No.
DTRFXM-XN-SS
DK-Lok DTRF-N female run tees are designed to connect two fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.
|

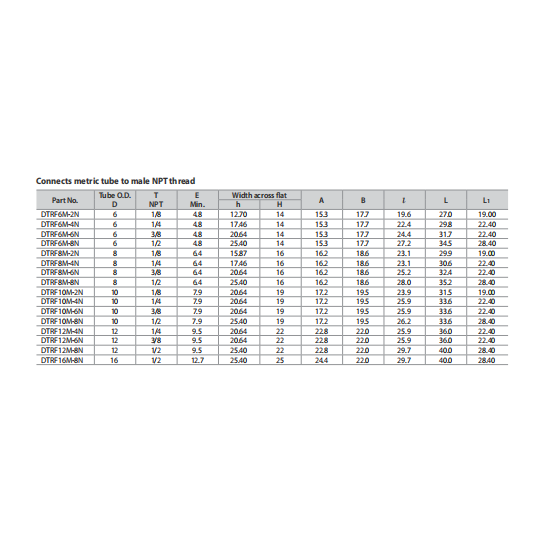

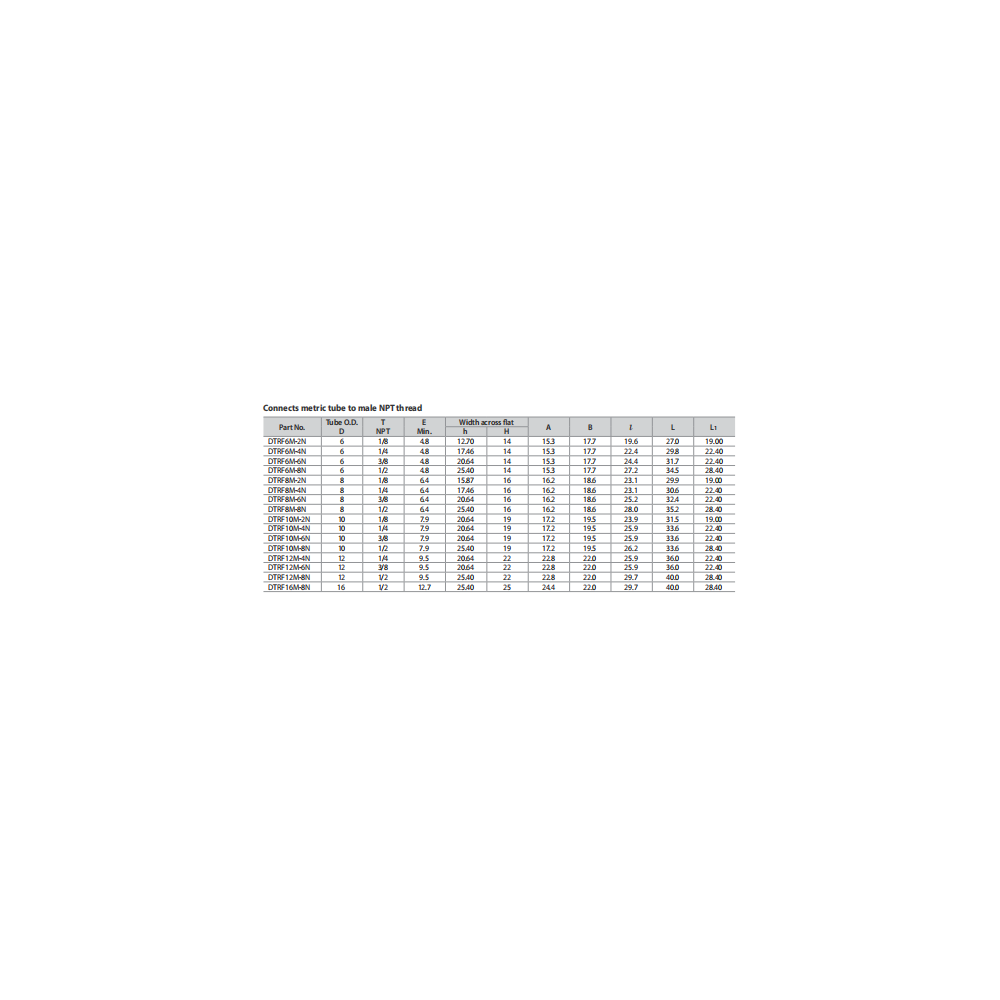

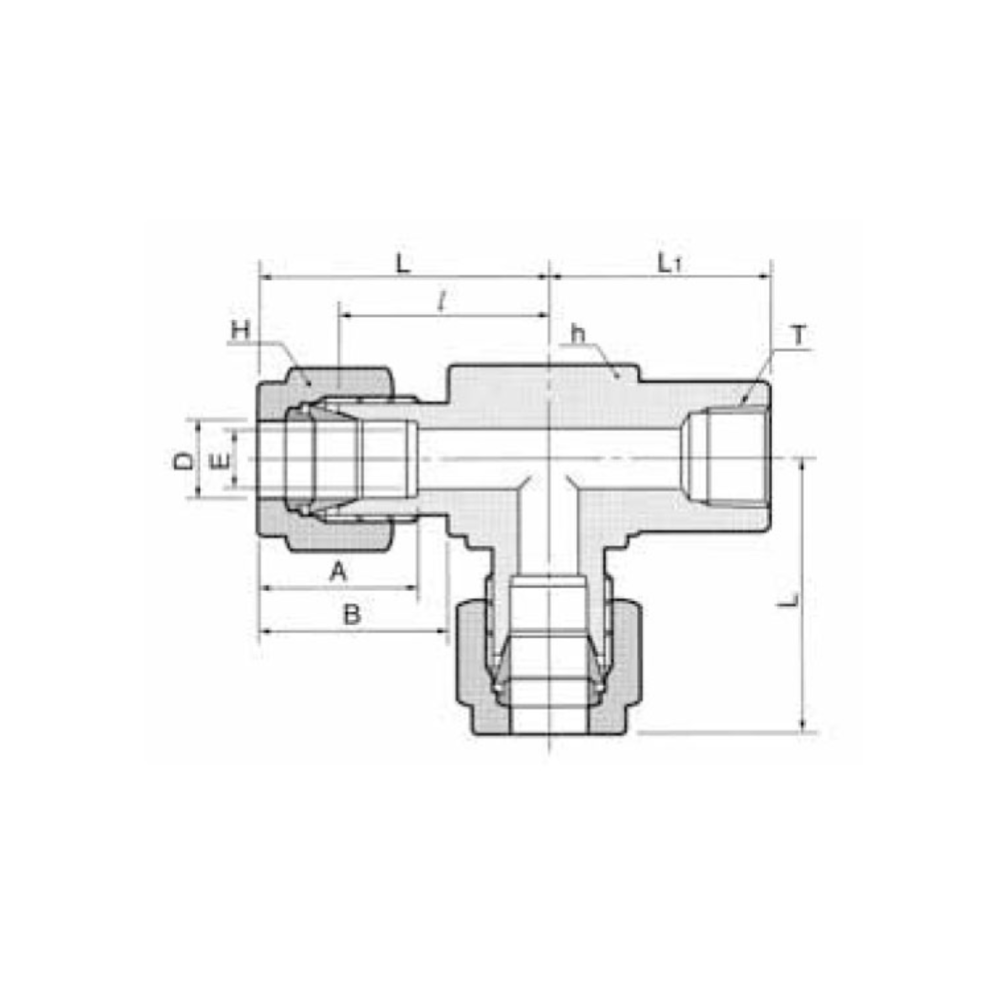

Part No
|
Tube O.D.
D (mm)
|
T
NPT
|
|
DTRF6M-2N |
6 |
1/8 |
|
DTRF6M-4N |
6 |
1/4 |
|
DTRF6M-6N |
6 |
3/8 |
|
DTRF6M-8N |
6 |
1/2 |
|
DTRF8M-2N |
8 |
1/8 |
|
DTRF8M-4N |
8 |
1/4 |
|
DTRF8M-6N |
8 |
3/8 |
|
DTRF8M-8N |
8 |
1/2 |
|
DTRF10M-2N |
10 |
1/8 |
|
DTRF10M-4N |
10 |
1/4 |
|
DTRF10M-6N |
10 |
3/8 |
|
DTRF10M-8N |
10 |
1/2 |
|
DTRF12M-4N |
12 |
1/4 |
|
DTRF12M-6N |
12 |
3/8 |
|
DTRF12M-8N |
12 |
1/2 |
|
DTRF16M-8N |
16 |
1/2 |
