Brand:
DK-LOK SS316 Low Pressure Relief Valves 3/8" MNPT-3/8" FNPT
Model No.
V63-MF-6N-S
V63-MF-6N-S
Data sheet
- Valve Series
- V63 Series
- Orifice Series
- 4.8 mm Orifice
- End Connection
- Male NPT, Female NPT
- Size Inlet x Outlet
- 3/8" Male NPT x 3/8" Female NPT
- Seal Material
- Viton
- Spring Specify
- Factory Pressure Set Valve (psi)
- Cracking Pressure (psi)
- 10
- CE Certified
- None

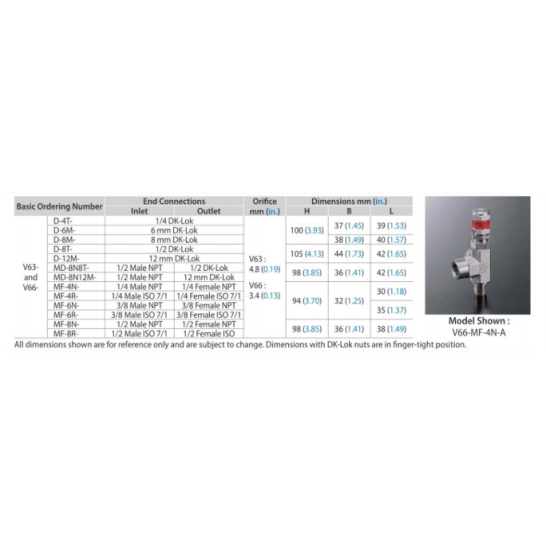

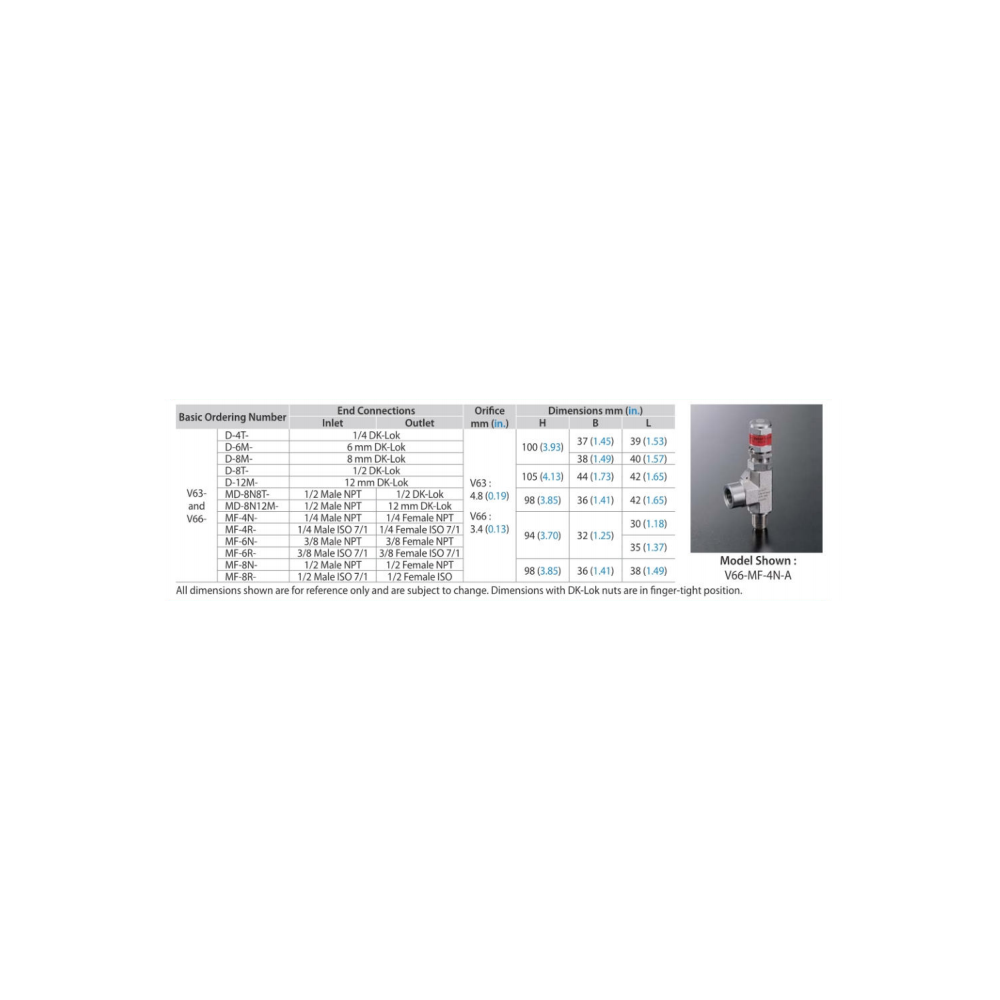

- Dimensions (Orifice)
- 4.8 mm
- Dimension (Cv)
- 0.6

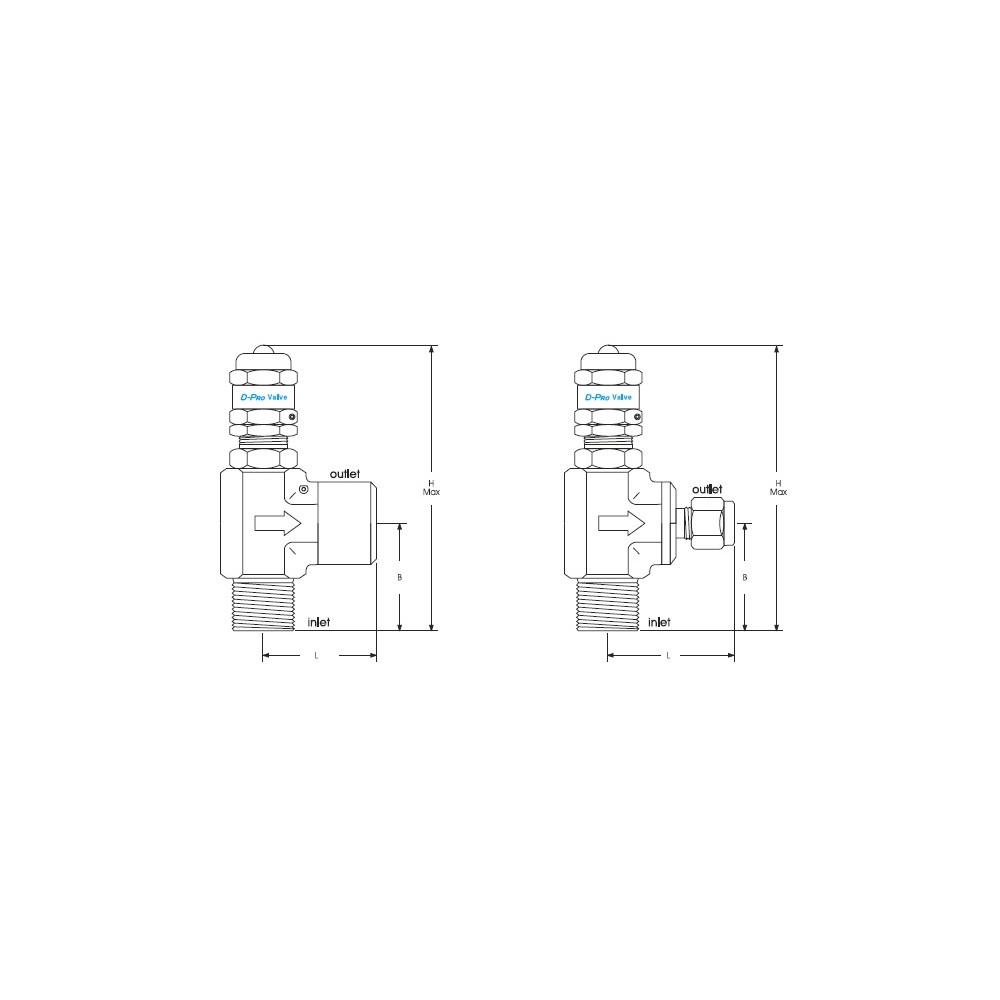

- Dimension (H)
- 94.0 mm
- Dimension (B)
- 32.0 mm
- Dimension (L)
- 35.0 mm
