DK-LOK
SS316 Weld Bulkhead Union (Tube to Tube)
Brand:

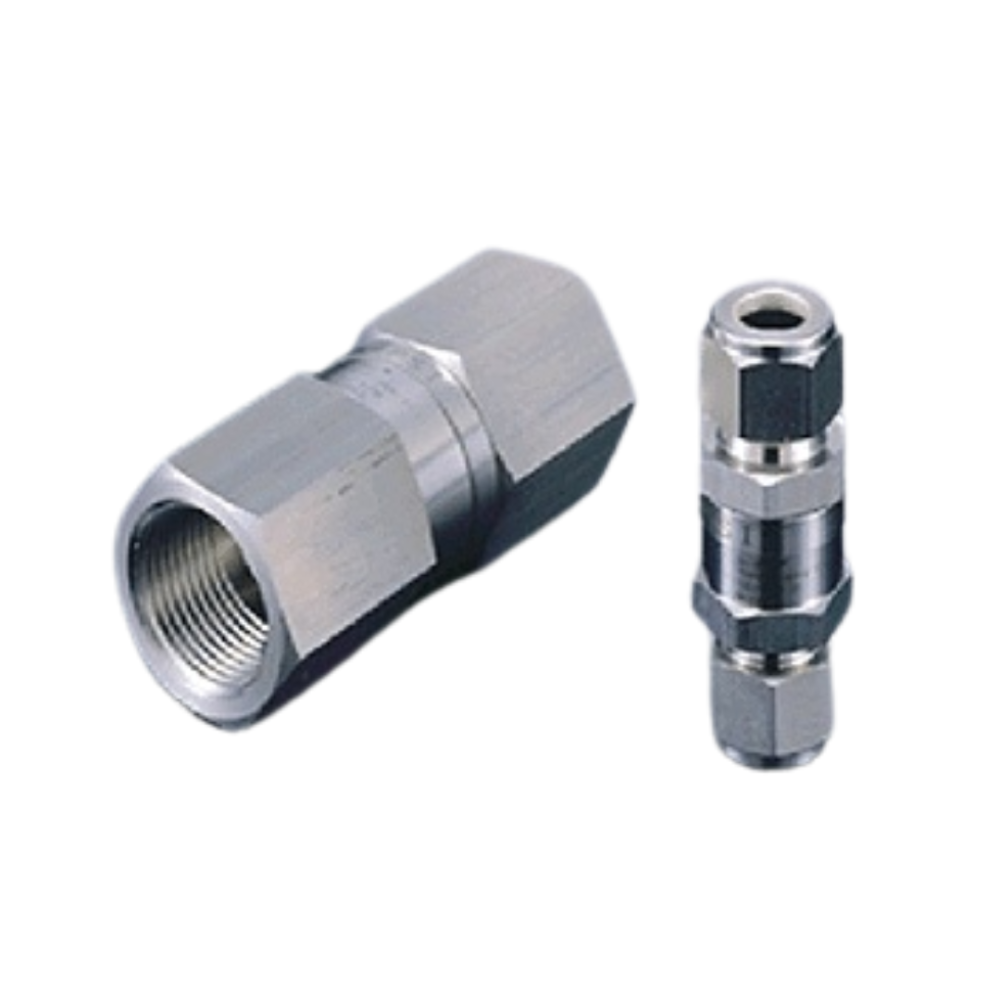

DK-LOK SS316 High Pressure Check Valve (1/4" Tube Fitting 1PSI) VH36A Series
Compact Check Valves
Model No.
VH36A-D-4T-1-SS
Features
- Fixed and adjustable cracking pressure.
- Reliable DK-LOK Tube Fitting, NPT and ISO pipe end connections.
- Stainless and Brass material construction.
- High pressure 6,000 psig (413 bar)
- Seal blow-out proof design with the bonded seal on poppet.

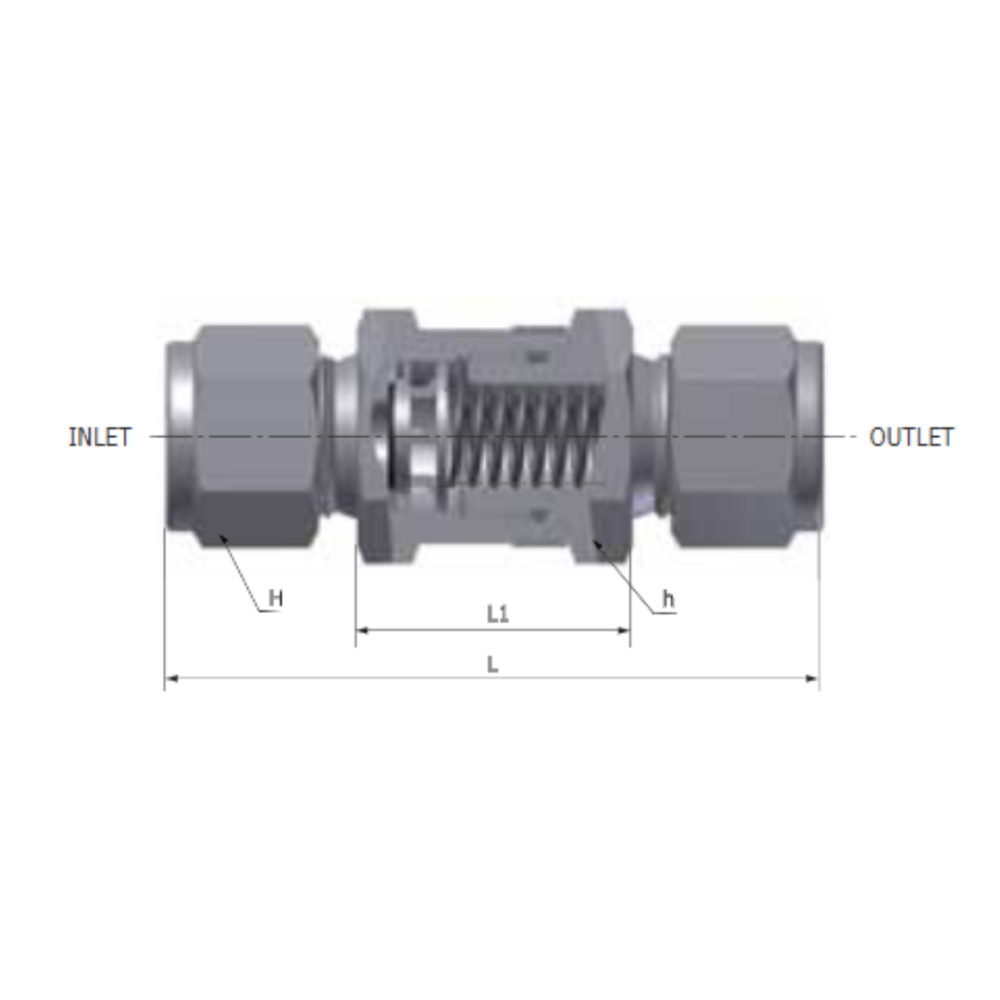

| Size | CV | L (in.) | L1(in.) | H(in.) | h(in.) | Pressure Rating psig(bar) |
| 1/4 in. DK-LOK | 0.67 | 61.7(2.43) | 26.4(1.04) | 14.29(9/16) | 11/16 | 6000(413) |
