DK-LOK
SS316 Hex Coupling (Female NPT both ends)
Brand:
DK-LOK SS316 Adapter (Male NPT to equal female NPT) GAAMF Series

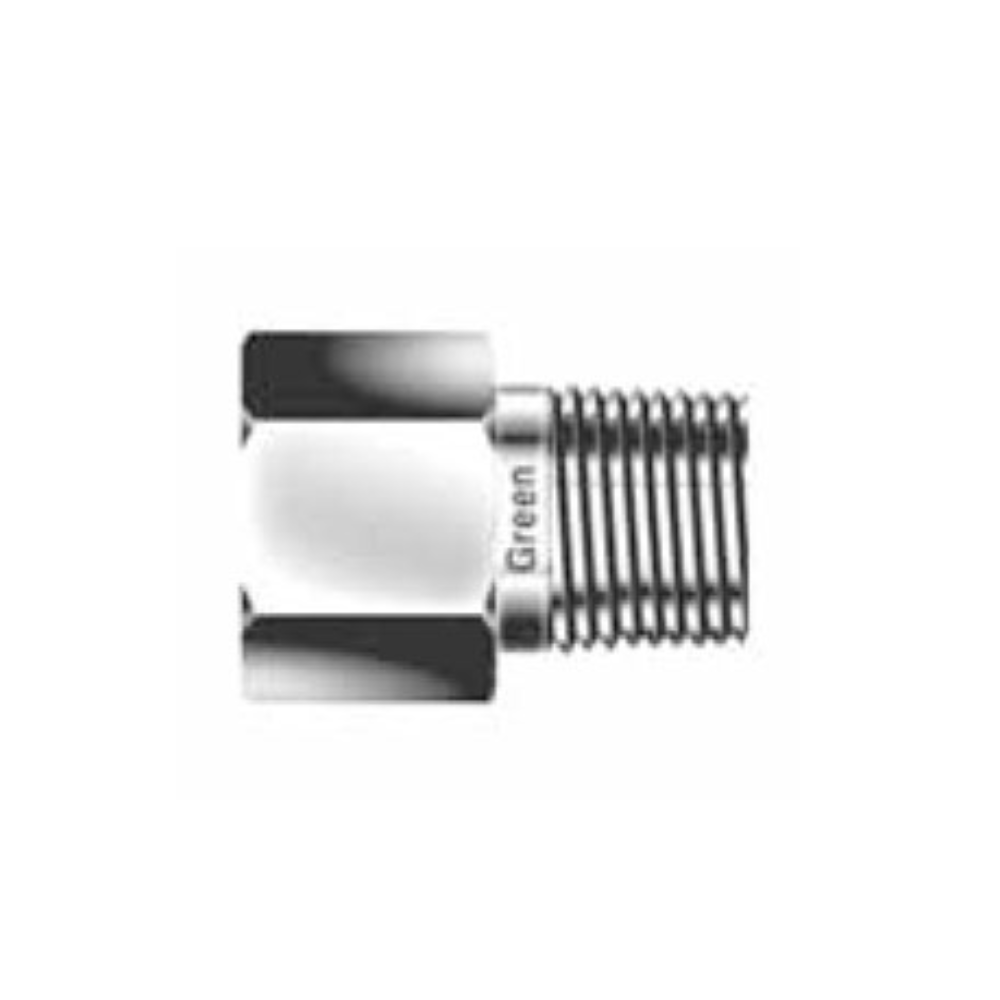

SS316 Adapter (Male NPT to equal female NPT)
Model No.
GAAMF-N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

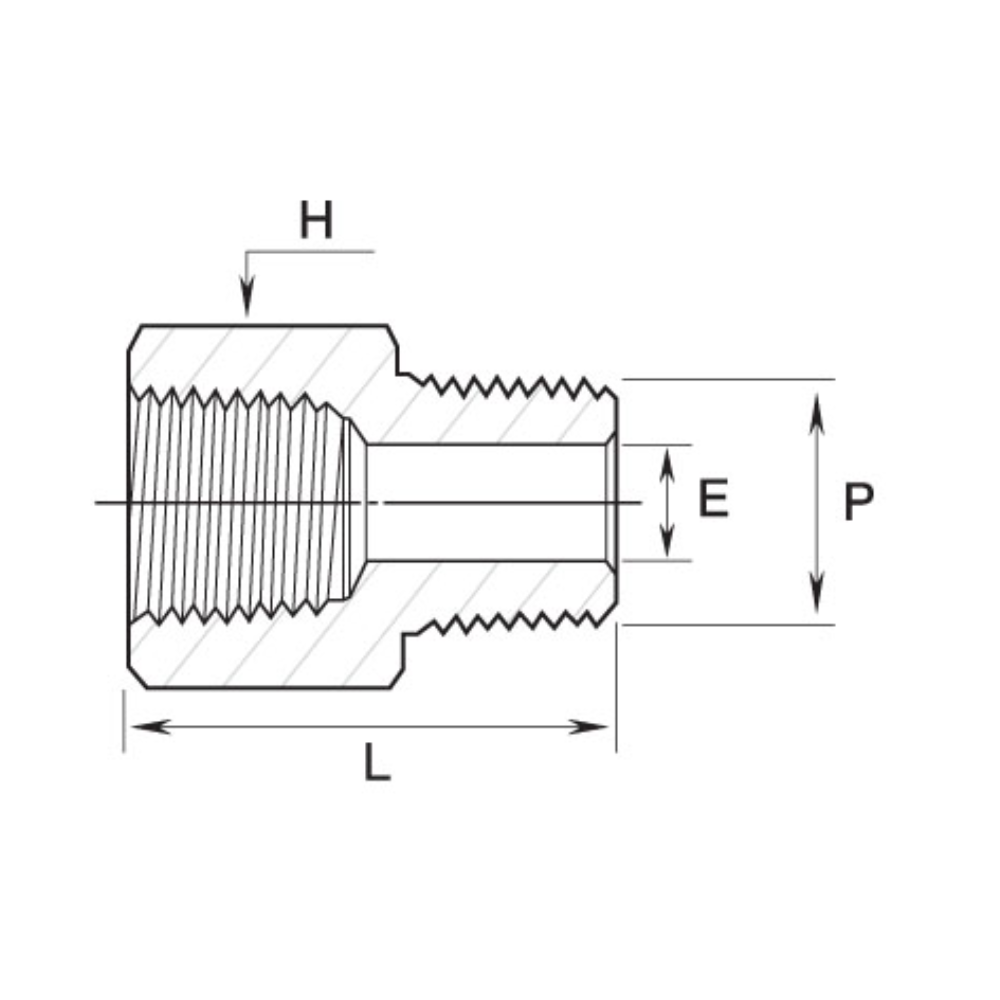

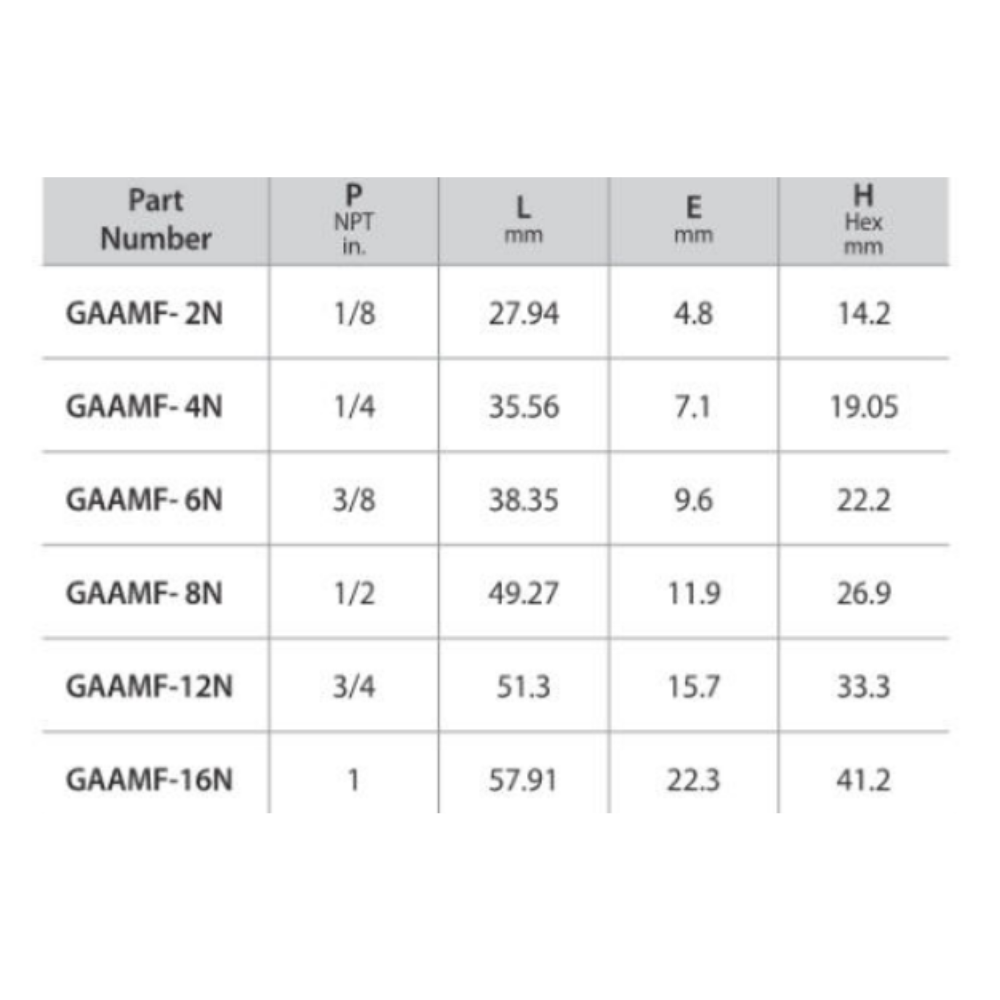

| Part number | P (NPT in.) | L (mm) | E(mm) | H(Hex mm) |
| GAAMF-2N-SS | 1/8 | 27.94 | 4.8 | 14.2 |
| GAAMF-4N-SS | 1/4 | 35.56 | 7.1 | 19.05 |
| GAAMF-6N-SS | 3/8 | 38.35 | 9.6 | 22.2 |
| GAAMF-8N-SS | 1/2 | 49.27 | 11.9 | 26.9 |
| GAAMF-12N-SS | 3/4 | 51.3 | 15.7 | 33.3 |
| GAAMF-16N-SS | 1 | 57.91 | 22.3 | 41.2 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
