Brand:
DK-LOK BRASS Female Run Tee DTRF-N Series
Tube to Female Pipe
Model No.
DTRFX-XN-B

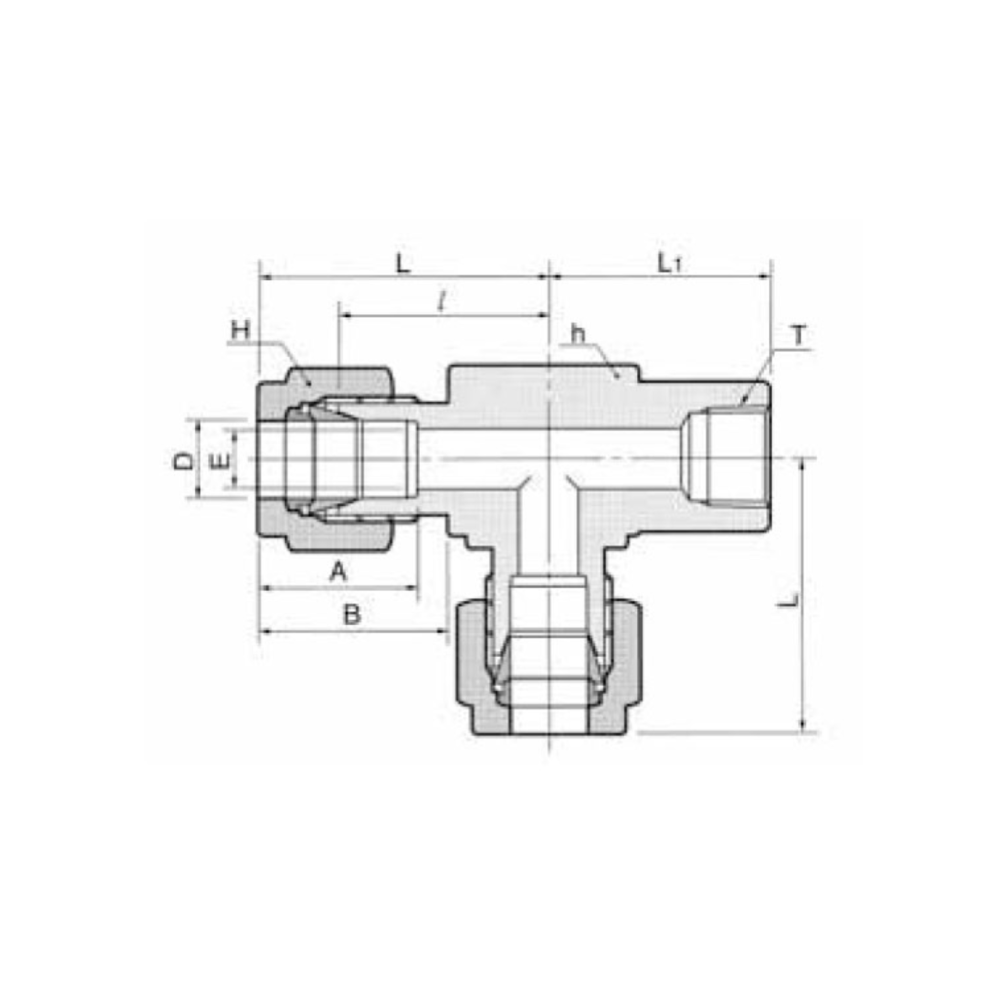

DK-Lok DTRF-N female run tees are designed to connect two fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.
|

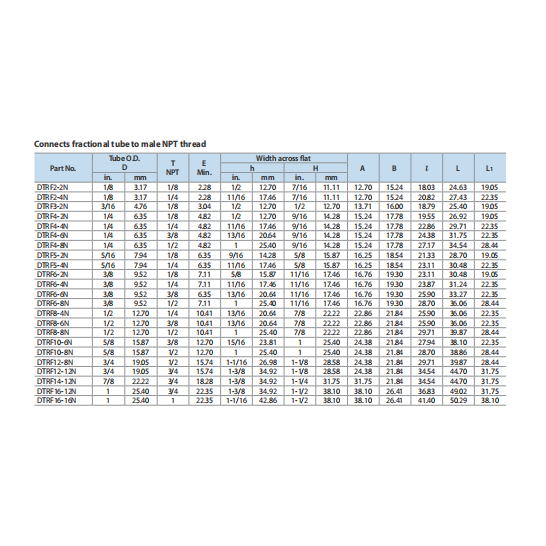

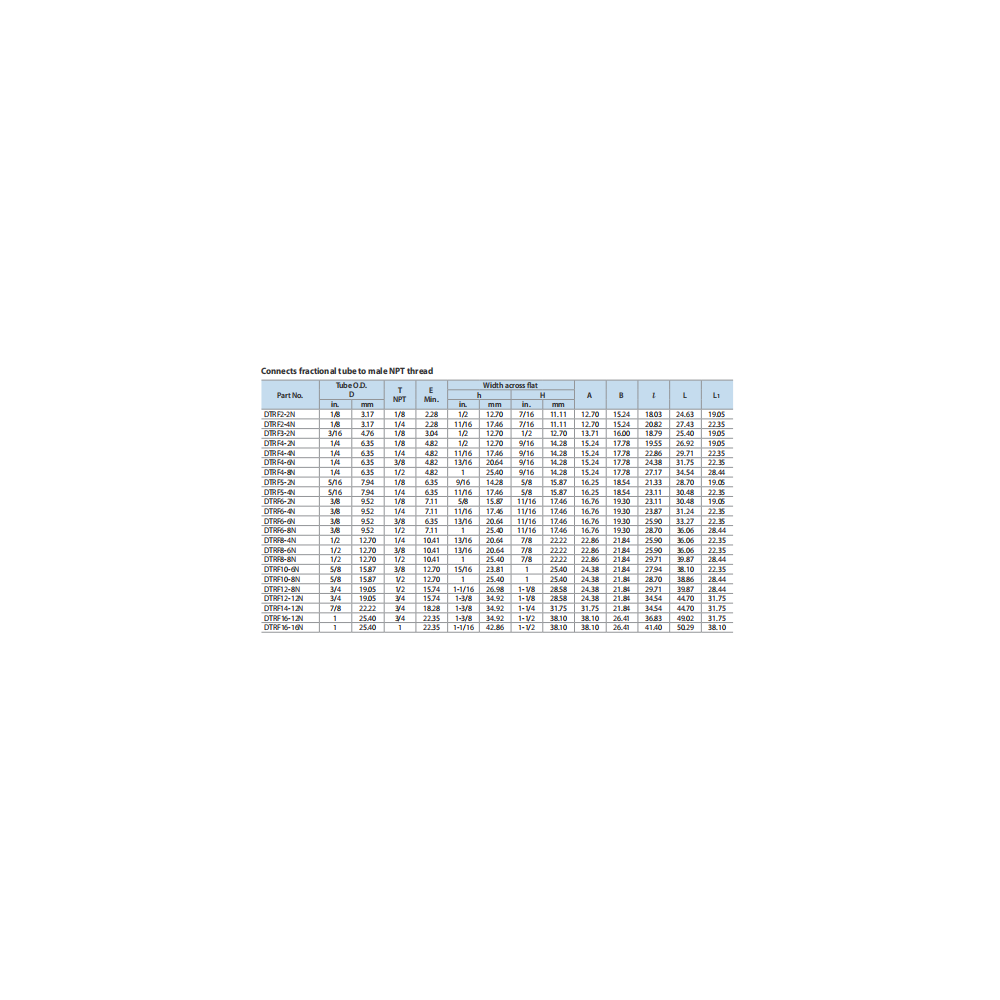

Part No
|
Tube O.D.
D (inches)
|
T
NPT
|
|
DTRF2-2N |
1/8 |
1/8 |
|
DTRF2-4N |
1/8 |
1/4 |
|
DTRF3-2N |
3/16 |
1/8 |
|
DTRF4-2N |
1/4 |
1/8 |
|
DTRF4-4N |
1/4 |
1/4 |
|
DTRF4-6N |
1/4 |
3/8 |
|
DTRF4-8N |
1/4 |
1/2 |
|
DTRF5-2N |
5/16 |
1/8 |
|
DTRF5-4N |
5/16 |
1/4 |
|
DTRF6-2N |
3/8 |
1/8 |
|
DTRF6-4N |
3/8 |
1/4 |
|
DTRF6-6N |
3/8 |
3/8 |
|
DTRF6-8N |
3/8 |
1/2 |
|
DTRF8-4N |
1/2 |
1/4 |
|
DTRF8-6N |
1/2 |
3/8 |
|
DTRF8-8N |
1/2 |
1/2 |
|
DTRF10-6N |
5/8 |
3/8 |
|
DTRF10-8N |
5/8 |
1/2 |
|
DTRF12-8N |
3/4 |
1/2 |
|
DTRF12-12N |
3/4 |
3/4 |
|
DTRF14-12N |
7/8 |
3/4 |
|
DTRF16-12N |
1 |
3/4 |
|
DTRF16-16N |
1 |
1 |
