Brand:

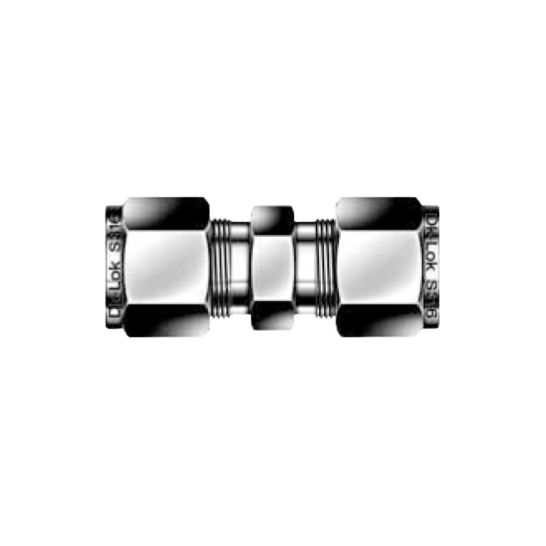

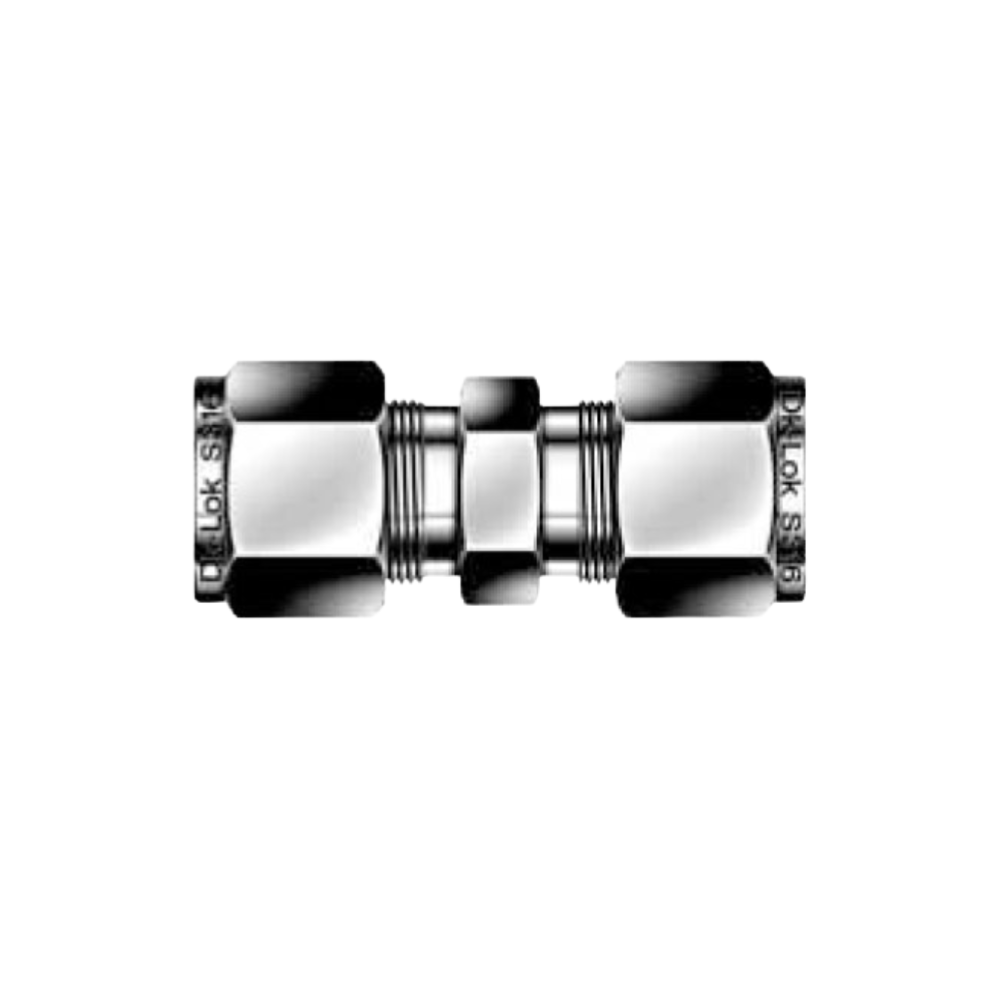

DK-LOK SS316 Union DU Metric Series
Tube to Tube Union
Model No.
DU-XM-SS
DK-Lok unions are designed to connect two individual lines of the same outside diameter size together in either fractional or metric in both single ferrule and double ferrule designs.
|

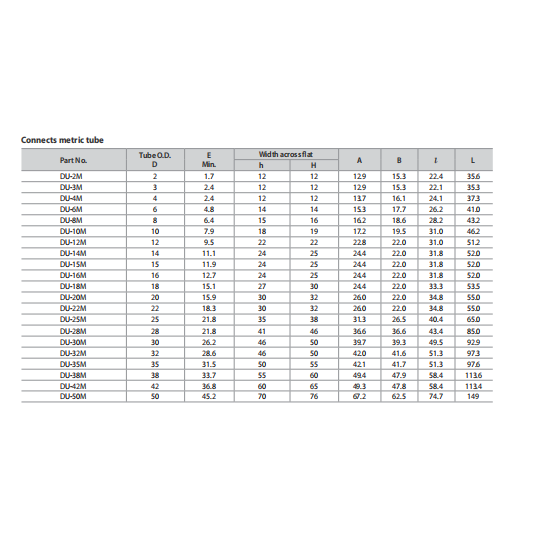

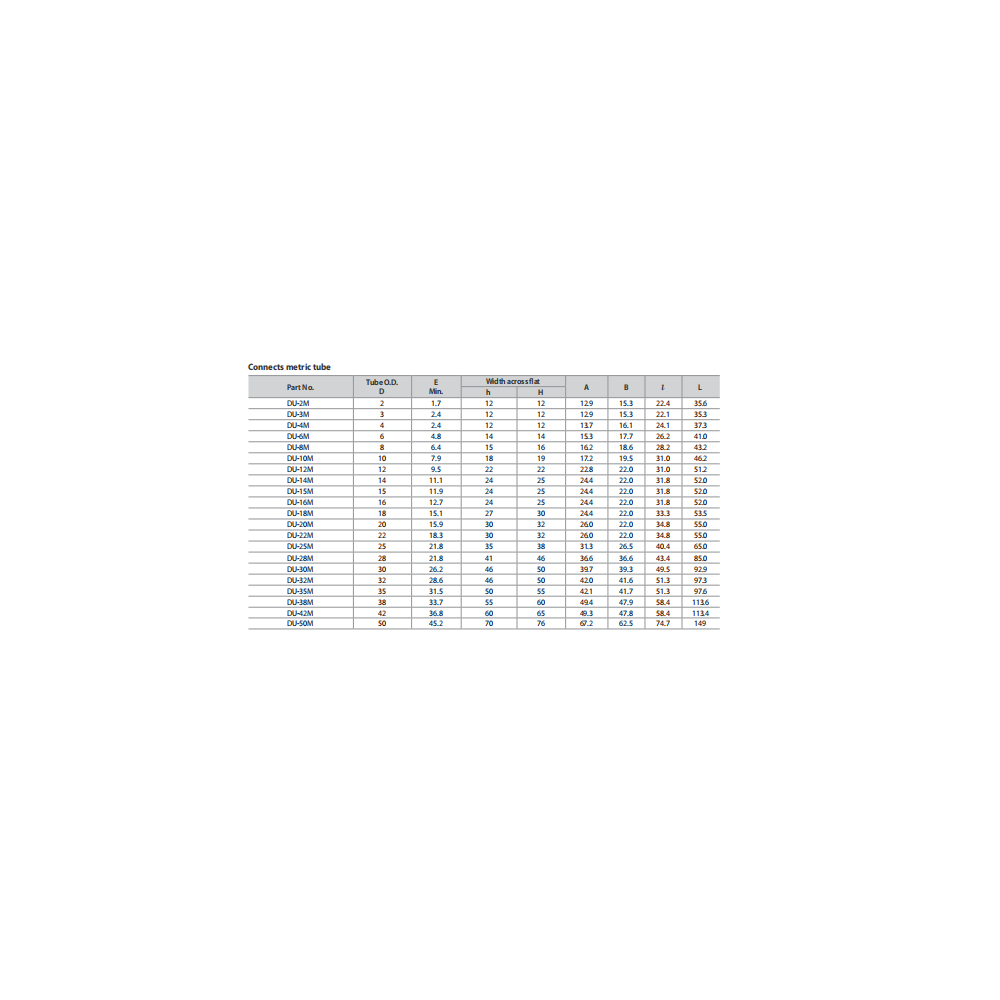

Part No |

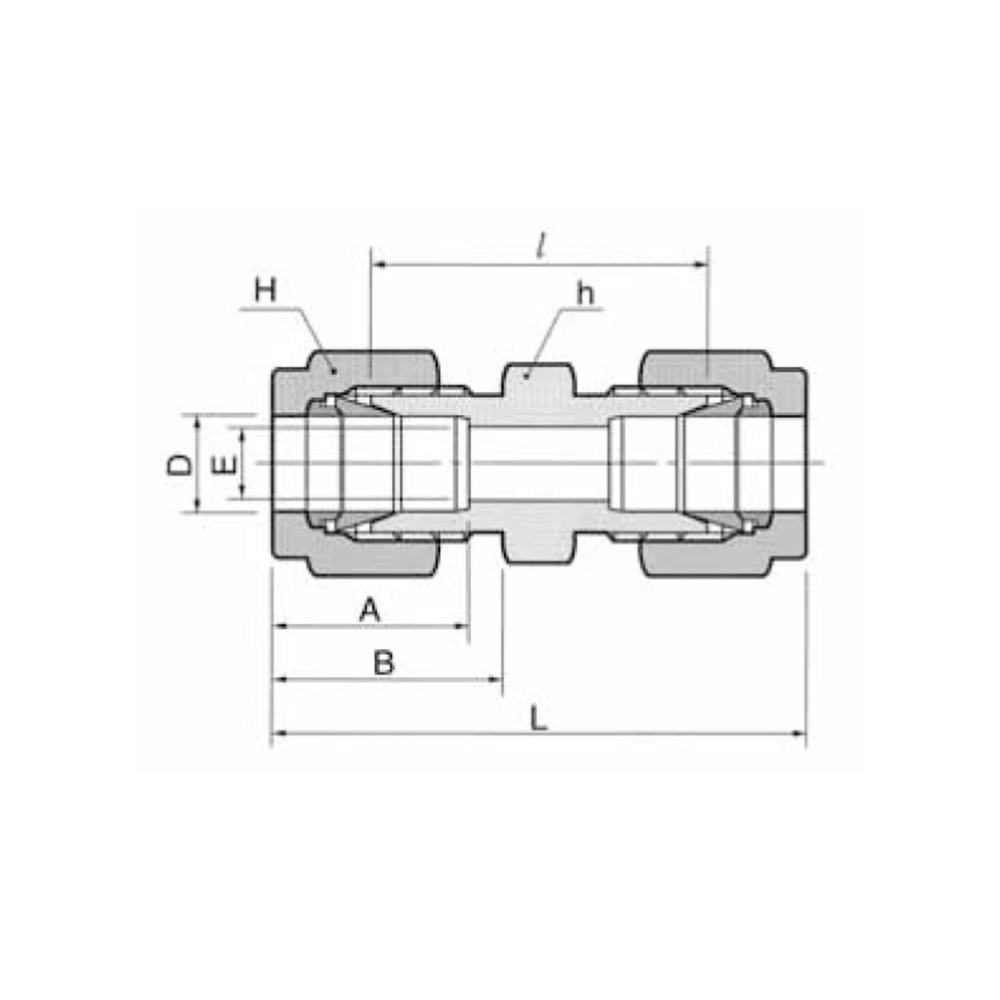

Tube O.D. D (mm) |
|
DU-2M |
2 |
|
DU-3M |
3 |
|
DU-4M |
4 |
|
DU-6M |
6 |
|
DU-8M |
8 |
|
DU-10M |
10 |
|
DU-12M |
12 |
|
DU-14M |
14 |
|
DU-15M |
15 |
|
DU-16M |
16 |
|
DU-18M |
18 |
|
DU-20M |
20 |
|
DU-22M |
22 |
|
DU-25M |
25 |
|
DU-28M |
28 |
|
DU-30M |
30 |
|
DU-32M |
32 |
|
DU-35M |
35 |
|
DU-38M |
38 |
|
DU-42M |
42 |
|
DU-50M |
50 |
