Brand:

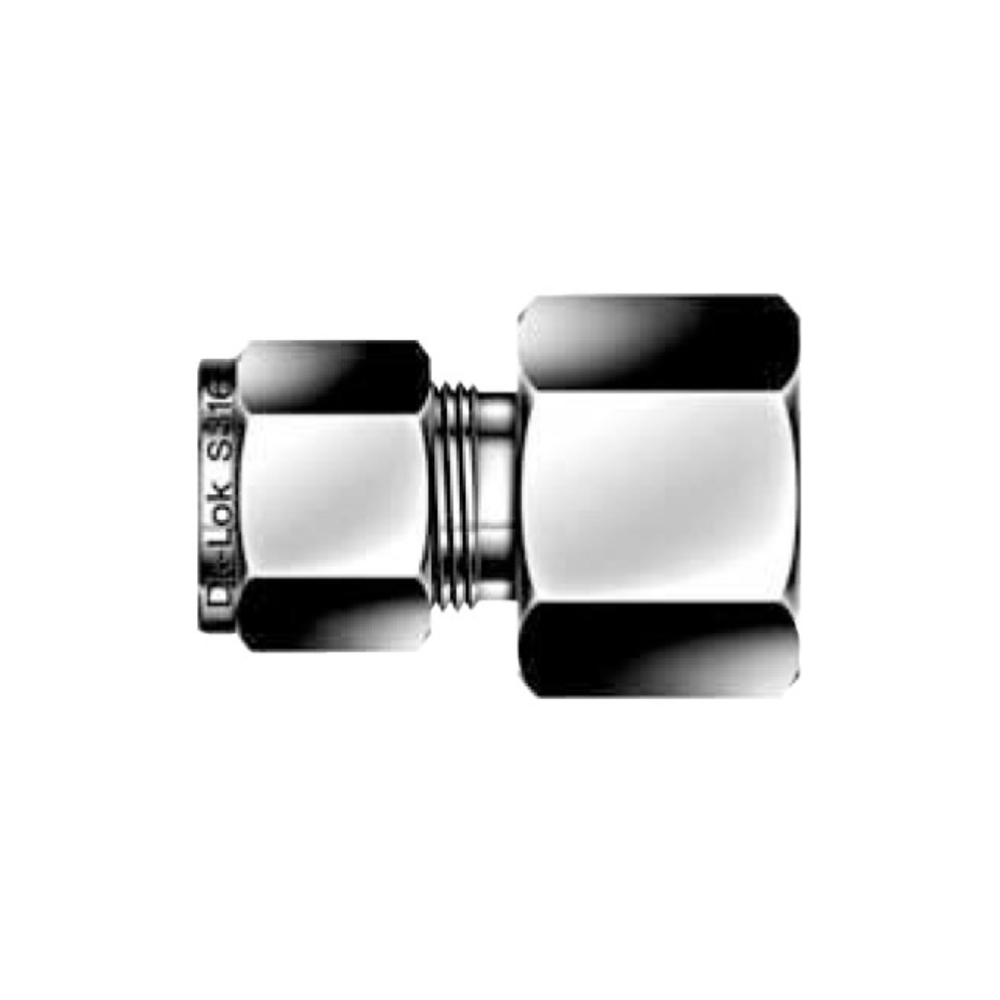

DK-LOK SS316 Female Connector DCF-N Series
Tube to Female Pipe
Model No.
DCFX-XN-SS

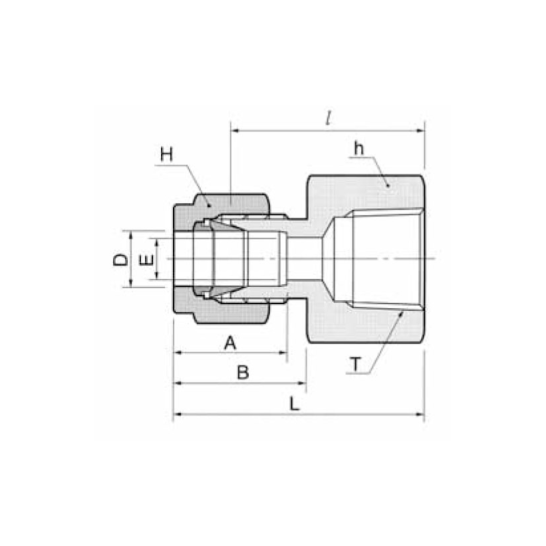

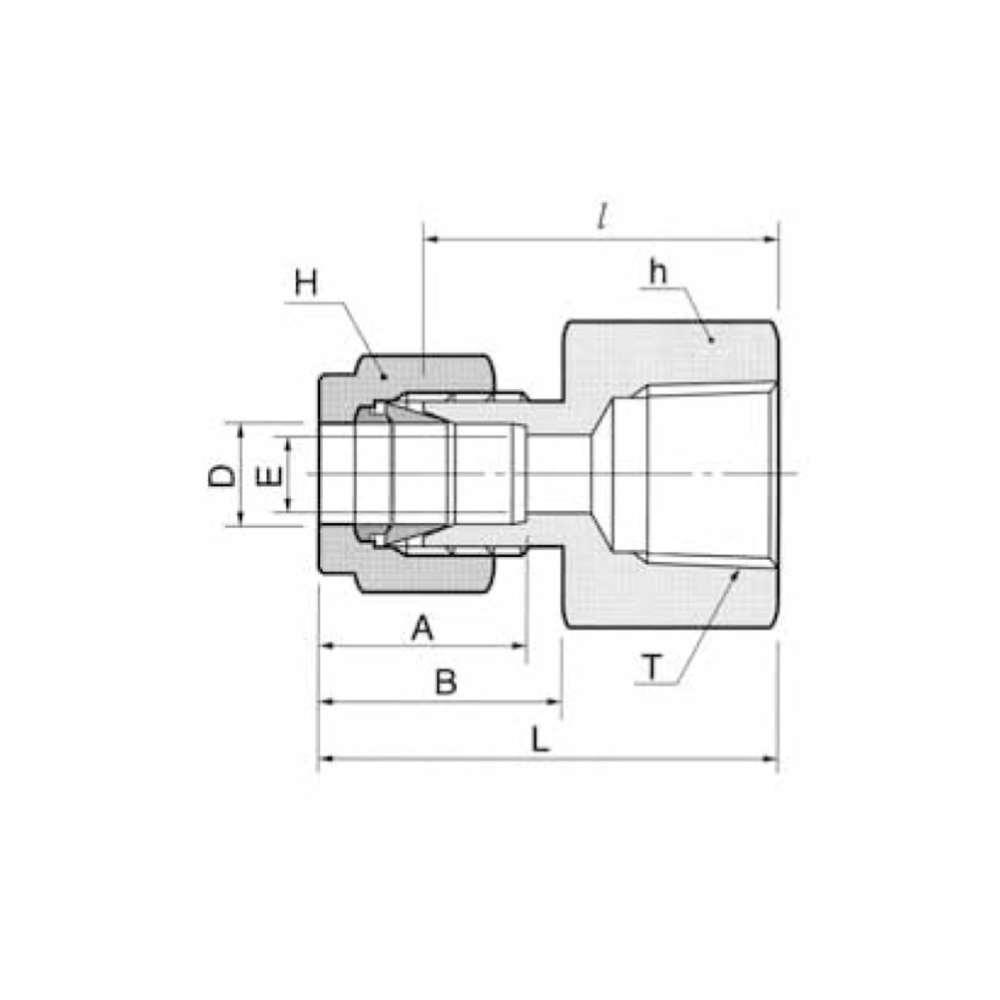

DK-Lok DCF-N female connectors are designed to connect individual fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.
|

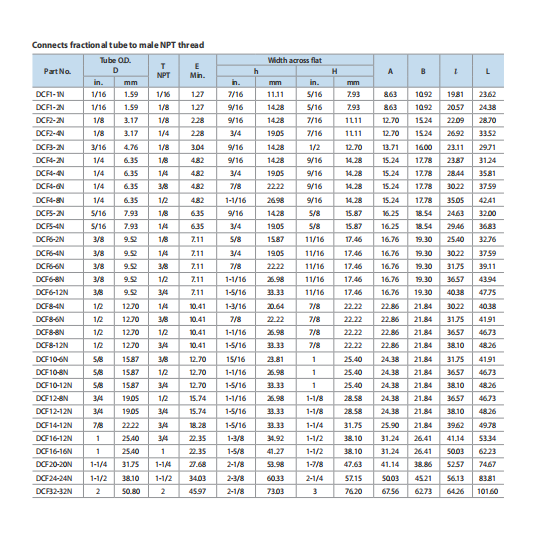

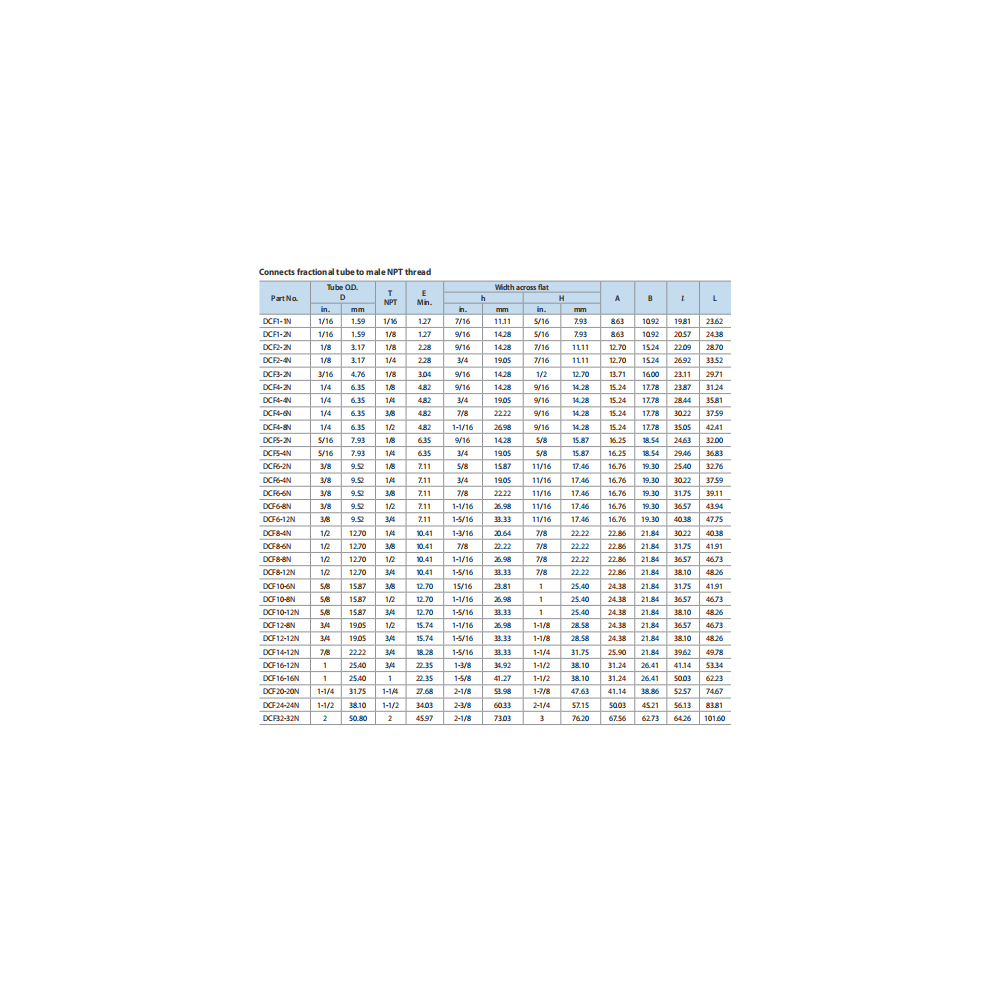

Part No
|
Tube O.D.
D (inches)
|
T
NPT
|
|
DCF1-1N |
1/16 |
1/16 |
|
DCF1-2N |
1/16 |
1/8 |
|
DCF2-2N |
1/8 |
1/8 |
|
DCF2-4N |
1/8 |
1/4 |
|
DCF3-2N |
3/16 |
1/8 |
|
DCF4-2N |
1/4 |
1/8 |
|
DCF4-4N |
1/4 |
1/4 |
|
DCF4-6N |
1/4 |
3/8 |
|
DCF4-8N |
1/4 |
1/2 |
|
DCF5-2N |
5/16 |
1/8 |
|
DCF5-4N |
5/16 |
1/4 |
|
DCF6-2N |
3/8 |
1/8 |
|
DCF6-4N |
3/8 |
1/4 |
|
DCF6-6N |
3/8 |
3/8 |
|
DCF6-8N |
3/8 |
1/2 |
|
DCF6-12N |
3/8 |
3/4 |
|
DCF8-4N |
1/2 |
1/4 |
|
DCF8-6N |
1/2 |
3/8 |
|
DCF8-8N |
1/2 |
1/2 |
|
DCF8-12N |
1/2 |
3/4 |
|
DCF10-6N |
5/8 |
3/8 |
|
DCF10-8N |
5/8 |
1/2 |
|
DCF10-12N |
5/8 |
3/4 |
|
DCF12-8N |
3/4 |
1/2 |
|
DCF12-12N |
3/4 |
3/4 |
|
DCF14-12N |
7/8 |
3/4 |
|
DCF16-12N |
1 |
3/4 |
|
DCF16-16N |
1 |
1 |
|
DCF20-20N |
1-1/4 |
1-1/4 |
|
DCF24-24N |
1-1/2 |
1-1/2 |
|
DCF32-32N |
2 |
2 |
