Brand:

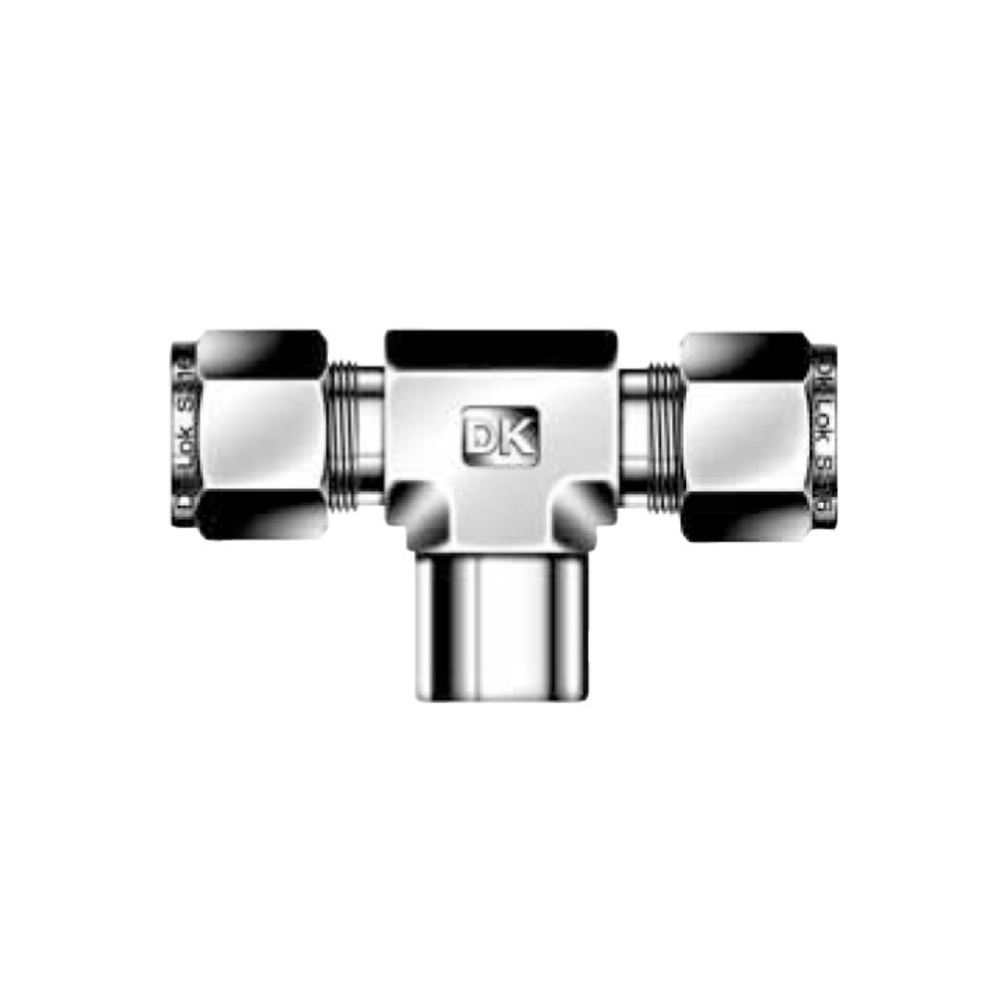

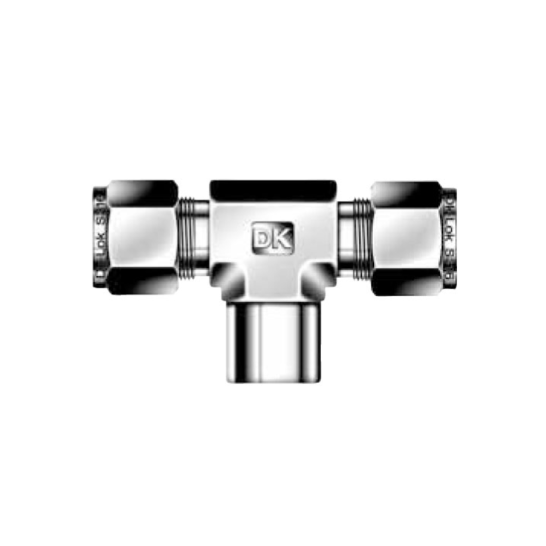

DK-LOK BRASS Female Branch Tee DTBF-N Series
Tube to Female Pipe
Model No.
DTBFX-XN-B
DK-Lok DTFF-N female branch tees are designed to connect two fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.
|

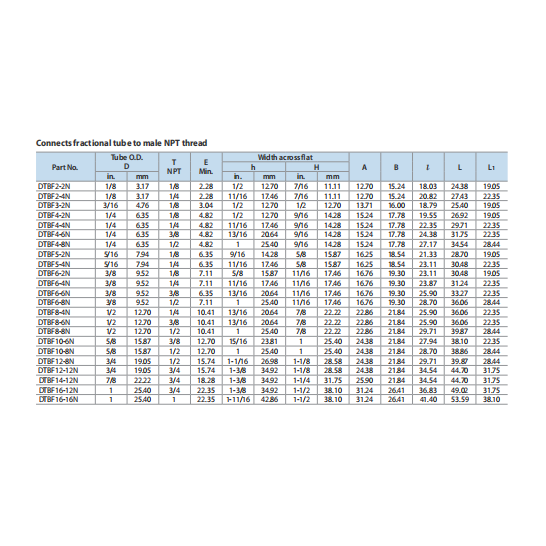

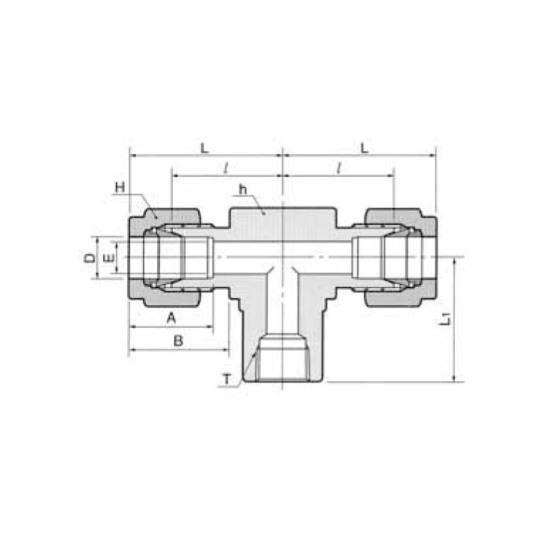

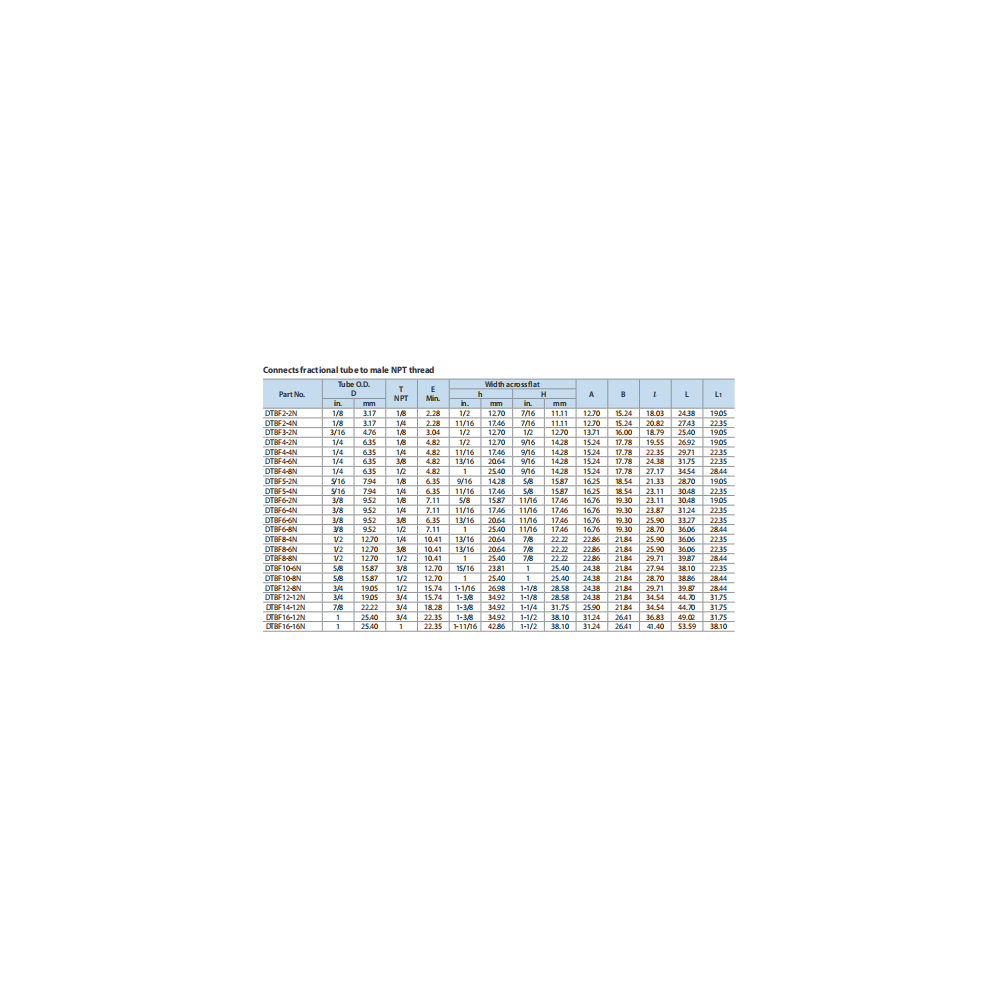

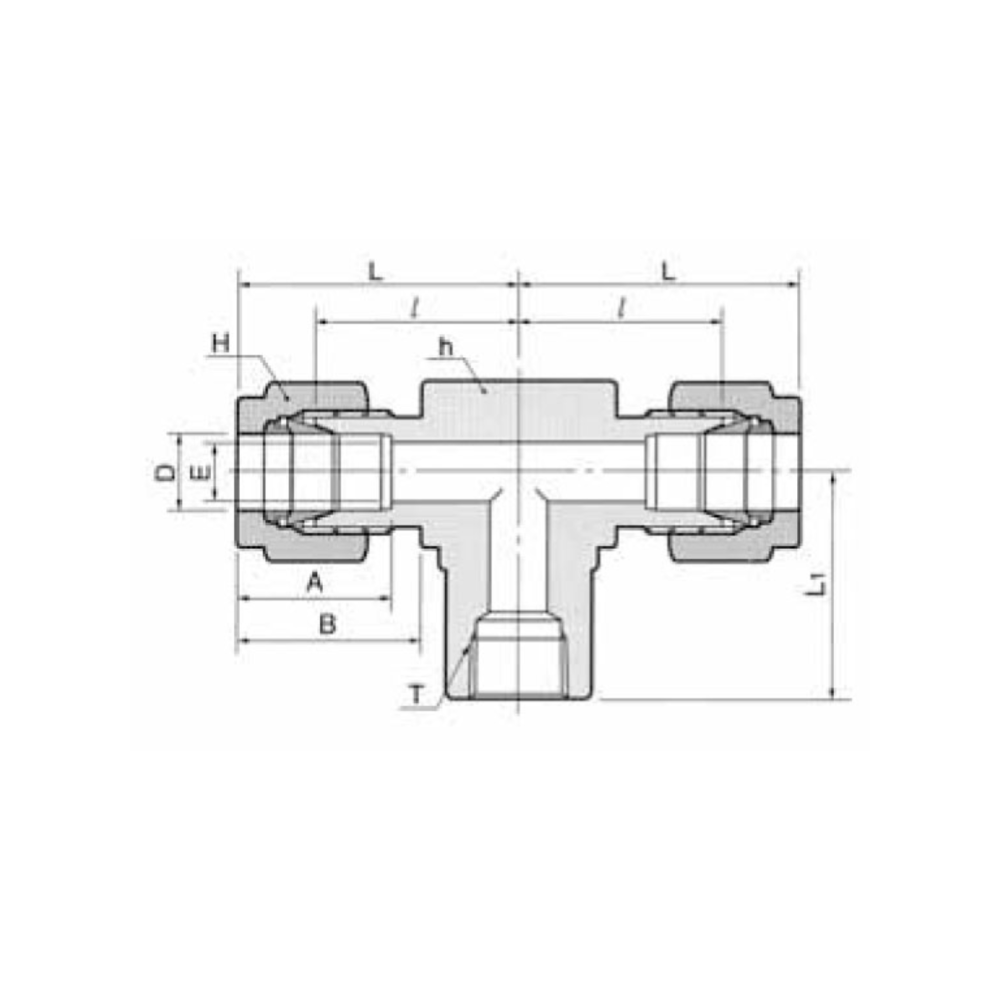

Part No
|
Tube O.D.
D (inches)
|
T
NPT
|
|
DTBF2-2N |
1/8 |
1/8 |
|
DTBF2-4N |
1/8 |
1/4 |
|
DTBF3-2N |
3/16 |
1/8 |
|
DTBF4-2N |
1/4 |
1/8 |
|
DTBF4-4N |
1/4 |
1/4 |
|
DTBF4-6N |
1/4 |
3/8 |
|
DTBF4-8N |
1/4 |
1/2 |
|
DTBF5-2N |
5/16 |
1/8 |
|
DTBF5-4N |
5/16 |
1/4 |
|
DTBF6-2N |
3/8 |
1/8 |
|
DTBF6-4N |
3/8 |
1/4 |
|
DTBF6-6N |
3/8 |
3/8 |
|
DTBF6-8N |
3/8 |
1/2 |
|
DTBF8-4N |
1/2 |
1/4 |
|
DTBF8-6N |
1/2 |
3/8 |
|
DTBF8-8N |
1/2 |
1/2 |
|
DTBF10-6N |
5/8 |
3/8 |
|
DTBF10-8N |
5/8 |
1/2 |
|
DTBF12-8N |
3/4 |
1/2 |
|
DTBF12-12N |
3/4 |
3/4 |
|
DTBF14-12N |
7/8 |
3/4 |
|
DTBF16-12N |
1 |
3/4 |
|
DTBF16-16N |
1 |
1 |
