DK-LOK
Tube to Positionable Straight Thread
Brand:

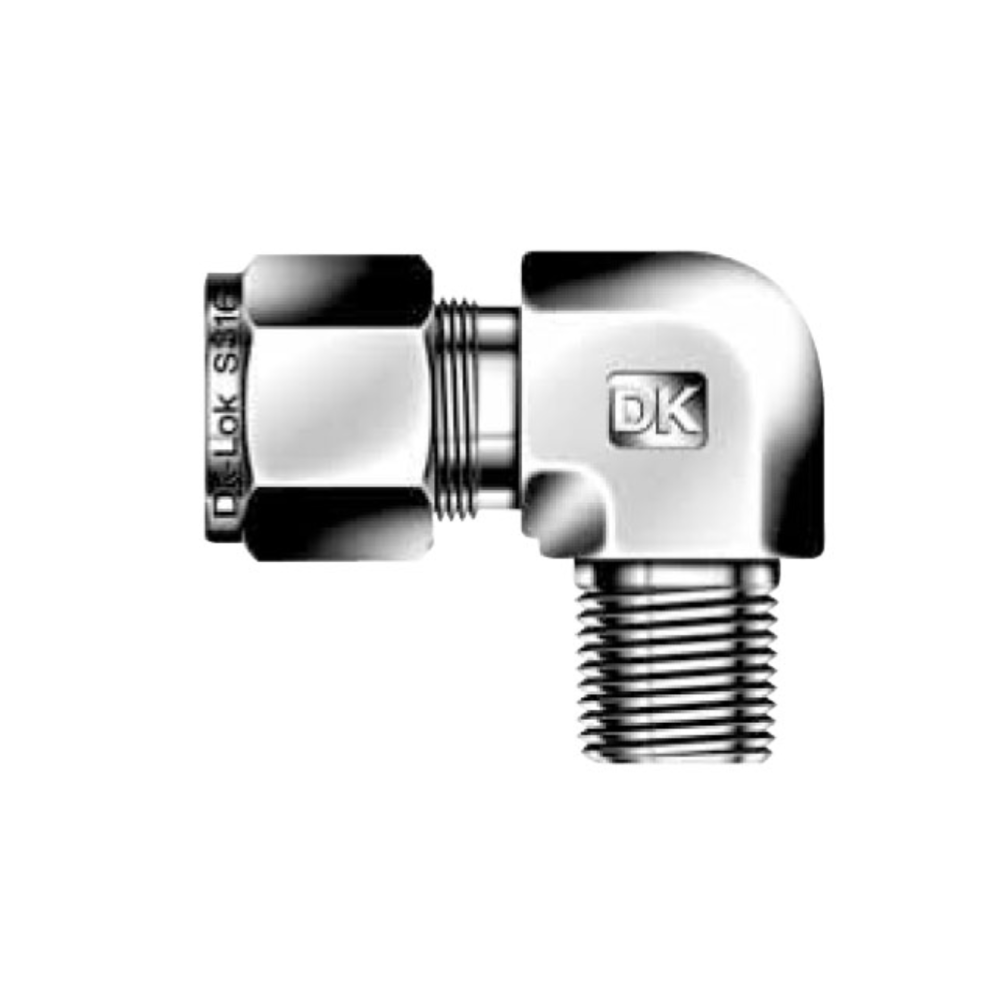

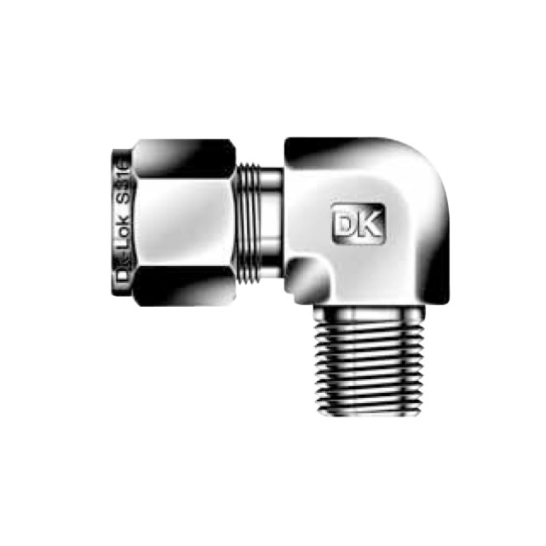

DK-LOK BRASS Male Elbow DLM-N Metric Series
Tube to Male Pipe
Model No.
DLMXM-XN-B

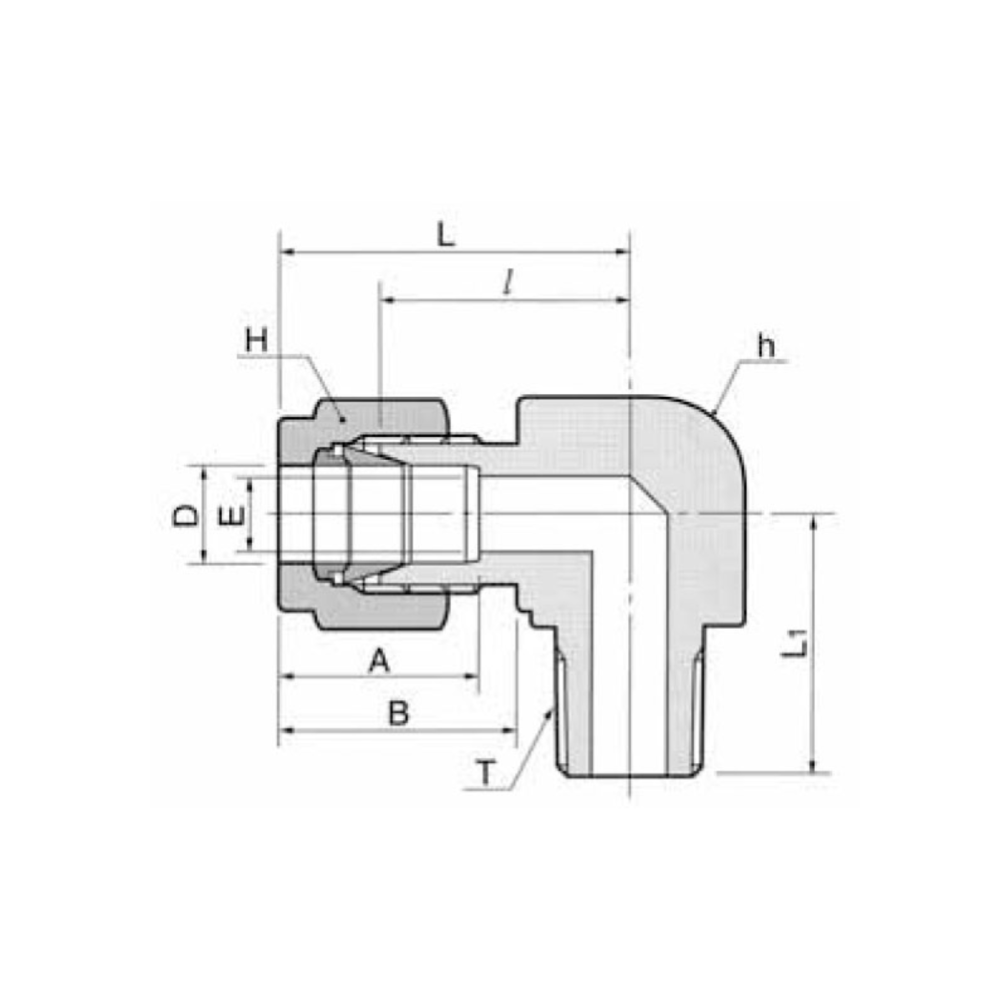

DK-Lok DLM-N male elbows are designed to connect individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

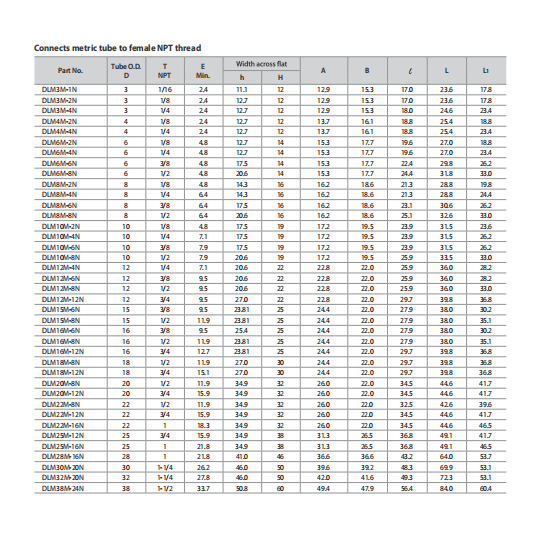

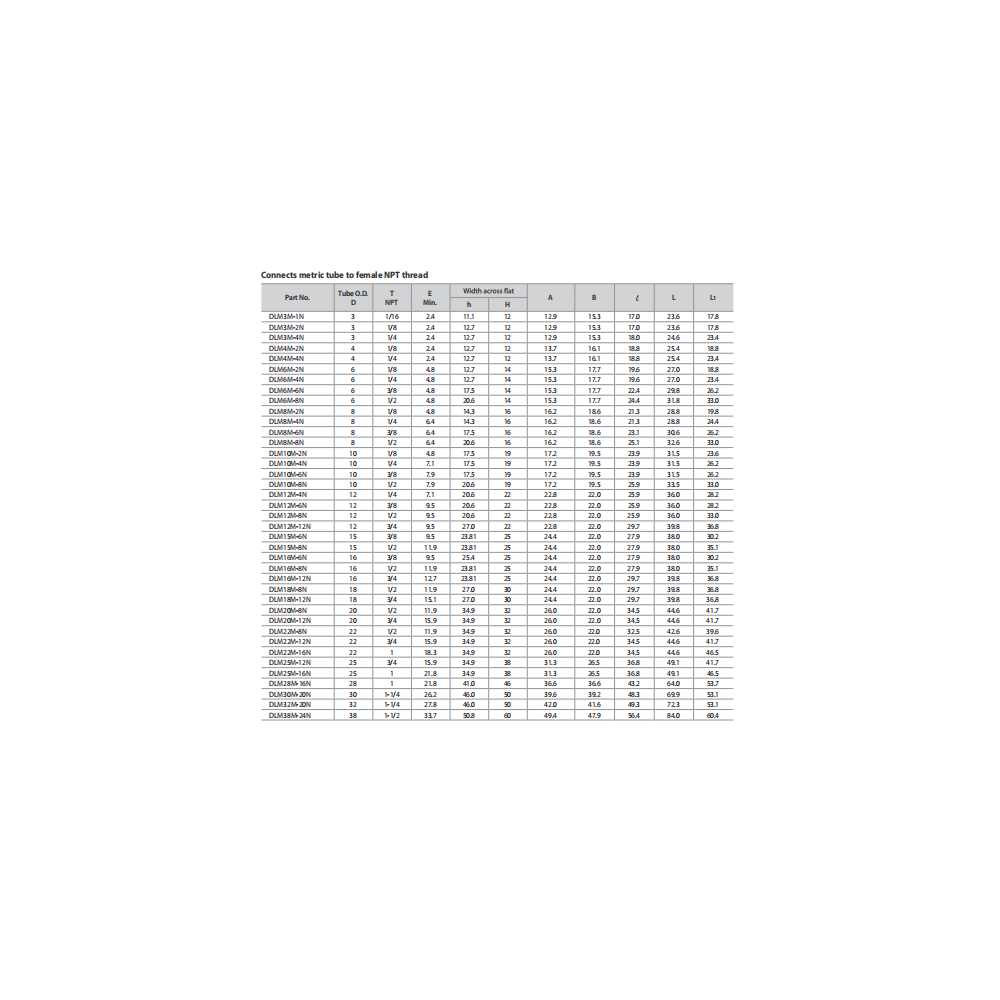

Part No |
Tube O.D. D (mm) |
T NPT |
|
DLM3M-1N |
3 |
1/16 |
|
DLM3M-2N |
3 |
1/8 |
|
DLM3M-4N |
3 |
1/4 |
|
DLM4M-2N |
4 |
1/8 |
|
DLM4M-4N |
4 |
1/4 |
|
DLM6M-2N |
6 |
1/8 |
|
DLM6M-4N |
6 |
1/4 |
|
DLM6M-6N |
6 |
3/8 |
|
DLM6M-8N |
6 |
1/2 |
|
DLM8M-2N |
8 |
1/8 |
|
DLM8M-4N |
8 |
1/4 |
|
DLM8M-6N |
8 |
3/8 |
|
DLM8M-8N |
8 |
1/2 |
|
DLM10M-2N |
10 |
1/8 |
|
DLM10M-4N |
10 |
1/4 |
|
DLM10M-6N |
10 |
3/8 |
|
DLM10M-8N |
10 |
1/2 |
|
DLM12M-4N |
12 |
1/4 |
|
DLM12M-6N |
12 |
3/8 |
|
DLM12M-8N |
12 |
1/2 |
|
DLM12M-12N |
12 |
3/4 |
|
DLM15M-6N |
15 |
3/8 |
|
DLM15M-8N |
15 |
1/2 |
|
DLM16M-6N |
16 |
3/8 |
|
DLM16M-8N |
16 |
1/2 |
|
DLM16M-12N |
16 |
3/4 |
|
DLM18M-8N |
18 |
1/2 |
|
DLM18M-12N |
18 |
3/4 |
|
DLM20M-8N |
20 |
1/2 |
|
DLM20M-12N |
20 |
3/4 |
|
DLM22M-8N |
22 |
1/2 |
|
DLM22M-12N |
22 |
3/4 |
|
DLM22M-16N |
22 |
1 |
|
DLM25M-12N |
25 |
3/4 |
|
DLM25M-16N |
25 |
1 |
|
DLM28M-16N |
28 |
1 |
|
DLM30M-20N |
30 |
1-1/4 |
|
DLM32M-20N |
32 |
1-1/4 |
|
DLM38M-24N |
38 |
1-1/2 |
