DK-LOK
Fixed cracking pressure valves
Brand:

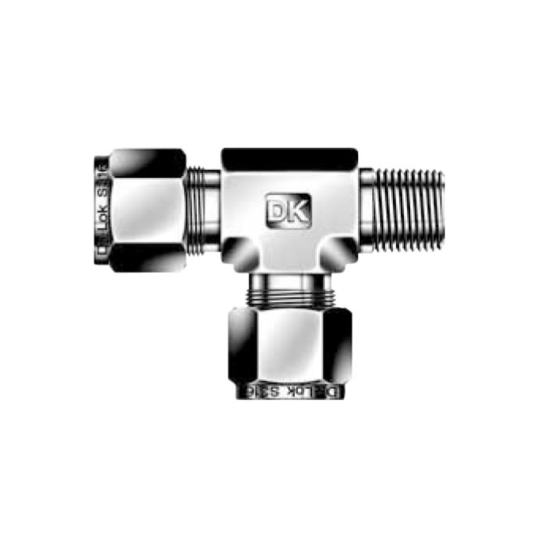

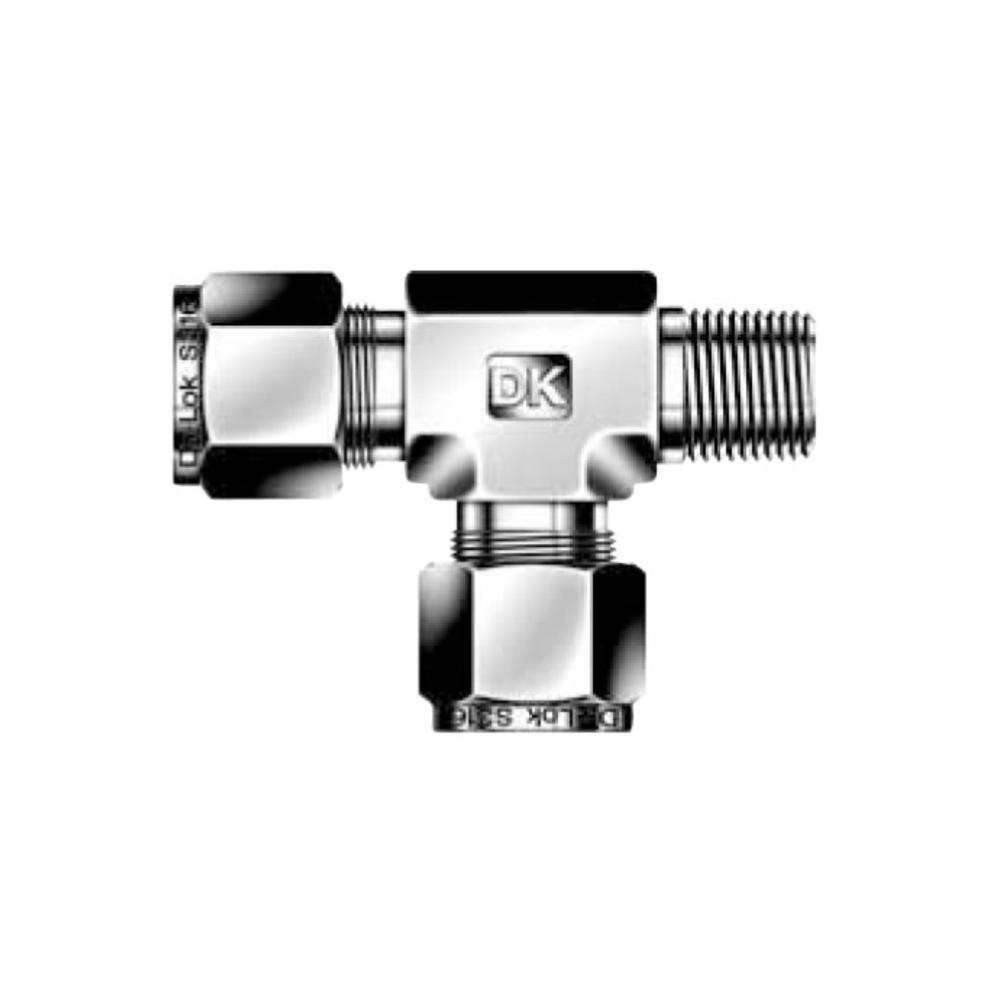

DK-LOK BRASS Male Run Tee DTRM-N Metric Series
Tube to Male Pipe
Model No.
DTRMXM-XN-B
DK-Lok DTRM-R male run tees are designed to connect two individual fractional or metric tube lines to a female British Standard Pipe Tapered (BSPT) threaded port in both single ferrule and double ferrule designs.
|
Part No |
Tube O.D. D (mm) |
T NPT |
|
DTRM3M-2N |
3 |
1/8 |
|
DTRM3M-4N |
3 |
1/4 |
|
DTRM4M-2N |
4 |
1/8 |
|
DTRM4M-4N |
4 |
1/4 |
|
DTRM6M-2N |
6 |
1/8 |
|
DTRM6M-4N |
6 |
1/4 |
|
DTRM6M-6N |
6 |
3/8 |
|
DTRM6M-8N |
6 |
1/2 |
|
DTRM8M-2N |
8 |
1/8 |
|
DTRM8M-4N |
8 |
1/4 |
|
DTRM8M-6N |
8 |
3/8 |
|
DTRM8M-8N |
8 |
1/2 |
|
DTRM10M-2N |
10 |
1/8 |
|
DTRM10M-4N |
10 |
1/4 |
|
DTRM10M-6N |
10 |
3/8 |
|
DTRM10M-8N |
10 |
1/2 |
|
DTRM12M-2N |
12 |
1/8 |
|
DTRM12M-4N |
12 |
1/4 |
|
DTRM12M-6N |
12 |
3/8 |
|
DTRM12M-8N |
12 |
1/2 |
|
DTRM12M-12N |
12 |
3/4 |
|
DTRM16M-6N |
16 |
3/8 |
|
DTRM16M-8N |
16 |
1/2 |
|
DTRM16M-12N |
16 |
3/4 |
|
DTRM18M-8N |
18 |
1/2 |
|
DTRM18M-12N |
18 |
3/4 |
|
DTRM20M-8N |
20 |
1/2 |
|
DTRM20M-12N |
20 |
3/4 |
|
DTRM22M-12N |
22 |
3/4 |
|
DTRM22M-16N |
22 |
1 |
|
DTRM25M-12N |
25 |
3/4 |
|
DTRM25M-16N |
25 |
1 |
