DK-LOK SS316 Low Pressure Relief Valves 1/2"MNPT-1/2" Tube
DK-LOK SS316 Low Pressure Relief Valves 1/2"MNPT-1/2" Tube
DK-LOK SS316 Low Pressure Relief Valves 1/2"MNPT-1/2" Tube
DK-LOK SS316 Low Pressure Relief Valves 1/2"MNPT-1/2" Tube
DK-LOK SS316 Low Pressure Relief Valves 1/2"MNPT-1/2" Tube
DK-LOK SS316 Low Pressure Relief Valves 1/2"MNPT-1/2" Tube
Brand:
DK-LOK

DK-LOK SS316 Low Pressure Relief Valves 1/2"MNPT-1/2" Tube

Model No.
V63-MD-8N8T-S
Get a quote
Like0
Share
Specifications
V63-MD-8N8T-S

Data sheet

Valve Series
V63 Series
Orifice Series
4.8 mm Orifice
End Connection
Male NPT, Dk-Lok
Size Inlet x Outlet
1/2" Male NPT x 1/2" Dk-Lok
Seal Material
Viton
Spring Specify
Factory Pressure Set Valve (psi)
Cracking Pressure (psi)
10
CE Certified
None

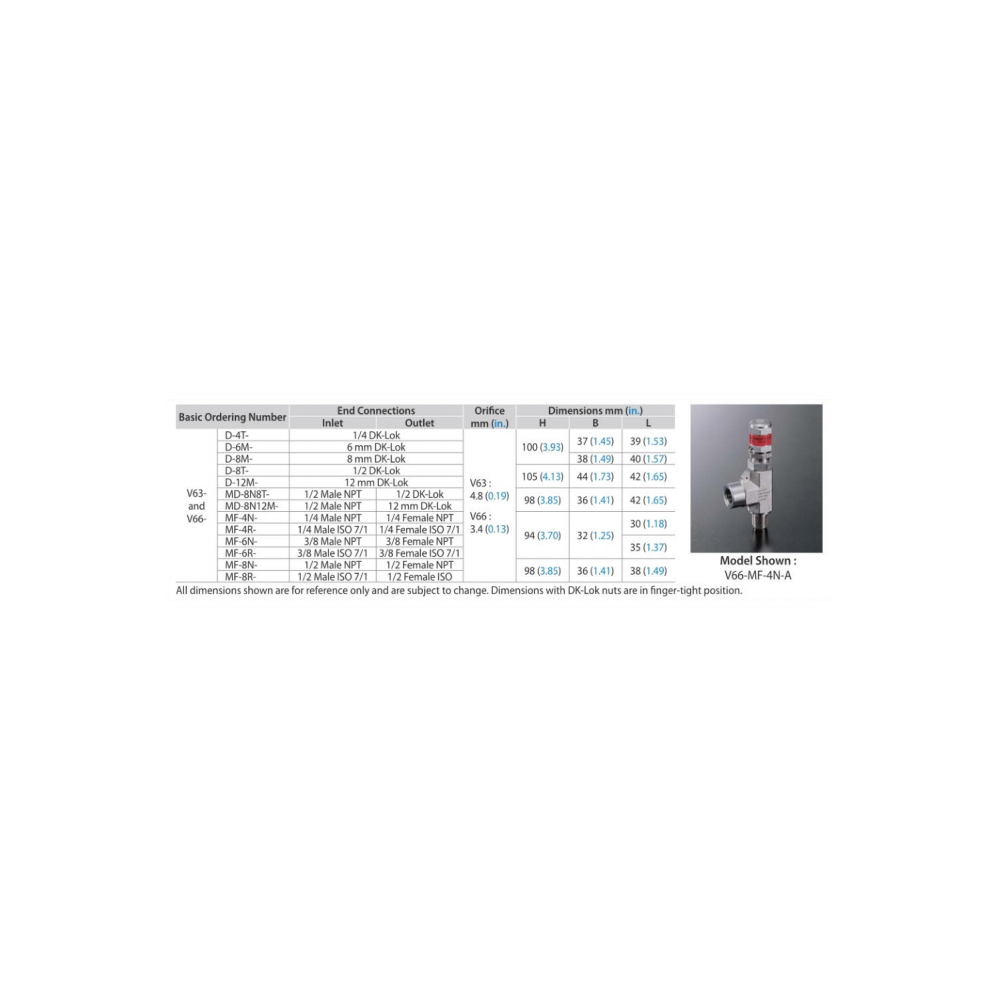

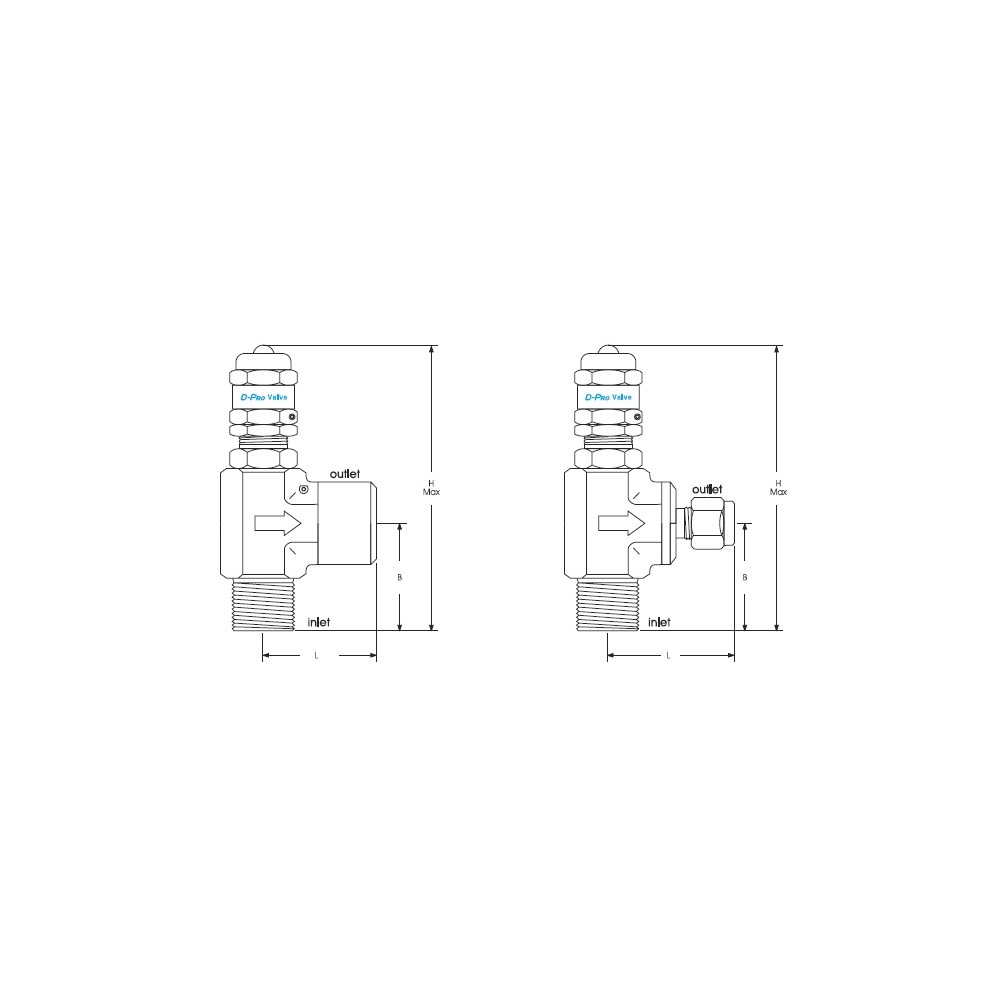

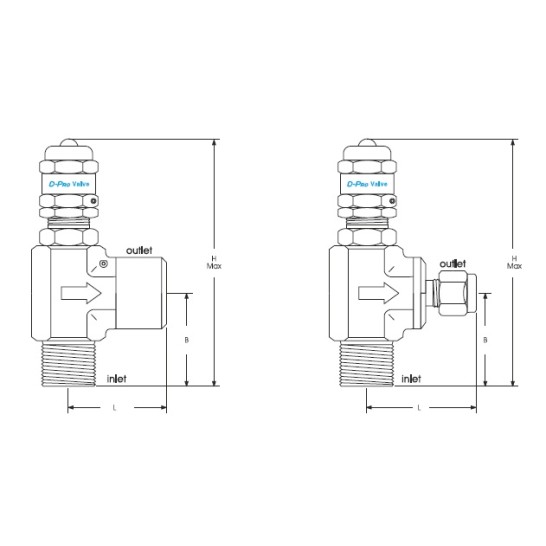

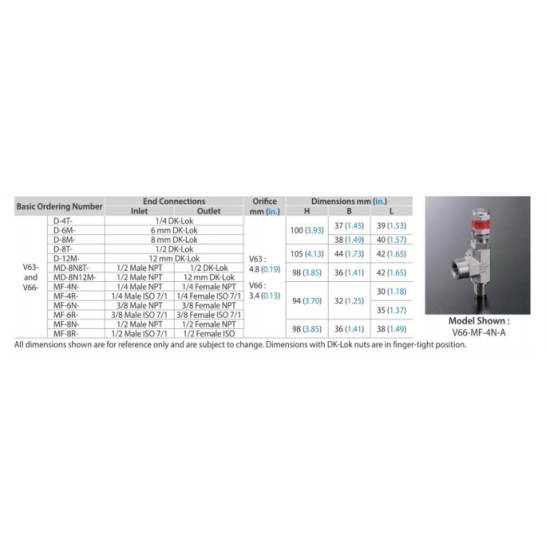

Dimensions (Orifice)
4.8 mm
Dimension (Cv)
0.6
Dimension (H)
98.0 mm
Dimension (B)
36.0 mm
Dimension (L)
42.0 mm
