DK-LOK
Tube to none-Positionable O-Seal
Brand:

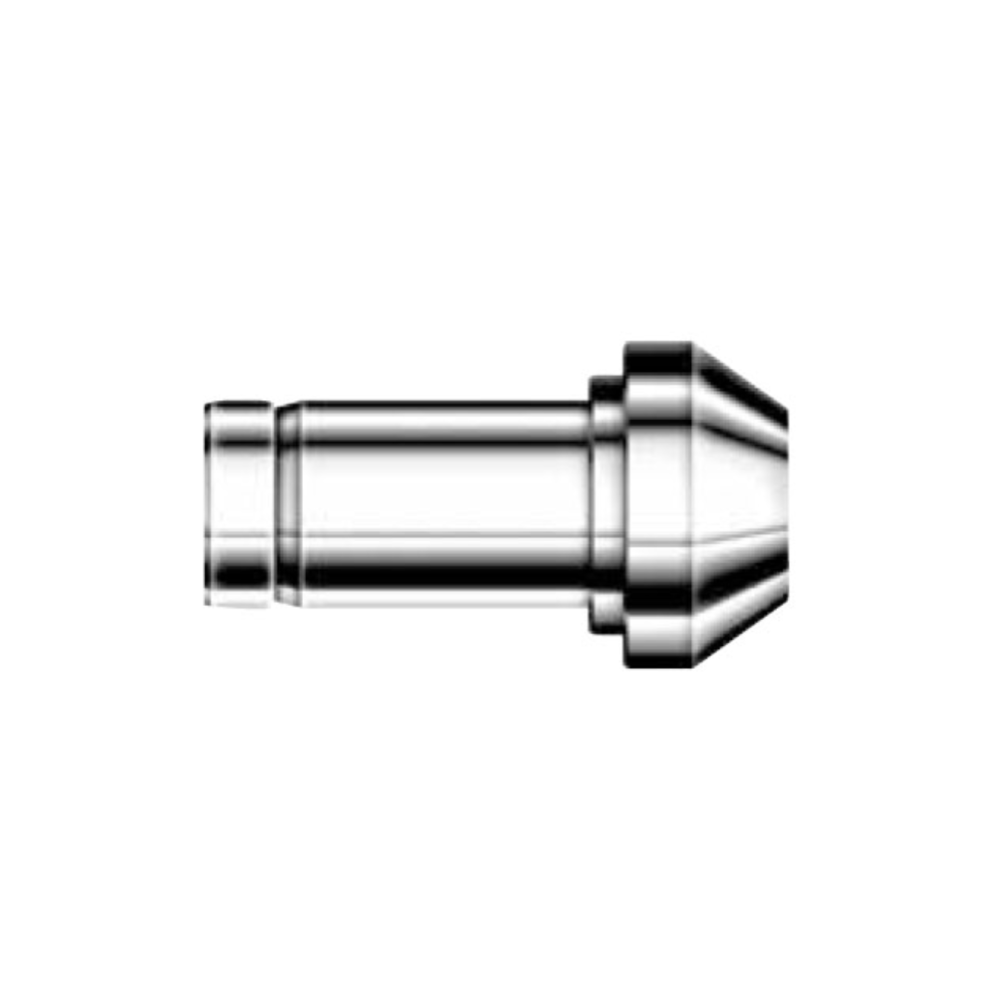

DK-LOK SS316 Reducing Port Connector DCRP Series
Tube Stub Connector
Model No.
DCRPX-X-SS
DK-Lok DCRP reducing port connectors are designed to connect two individual fractional or metric nut and ferrule(s) ports of different outside diameter sizes very close together in order to eliminate cutting very short lengths of tube to accomplish this while also addressing alignment issues.
|

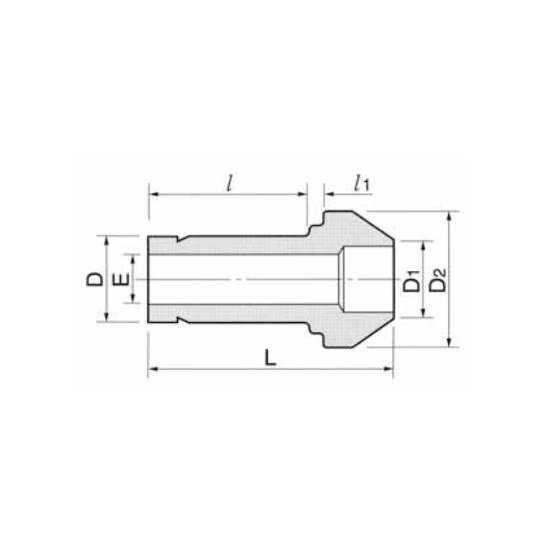

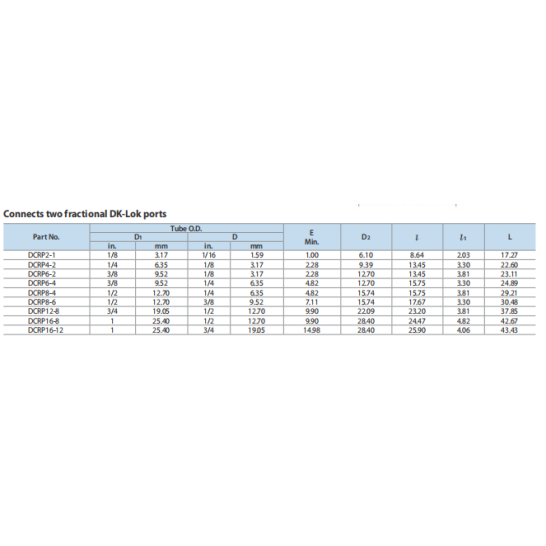

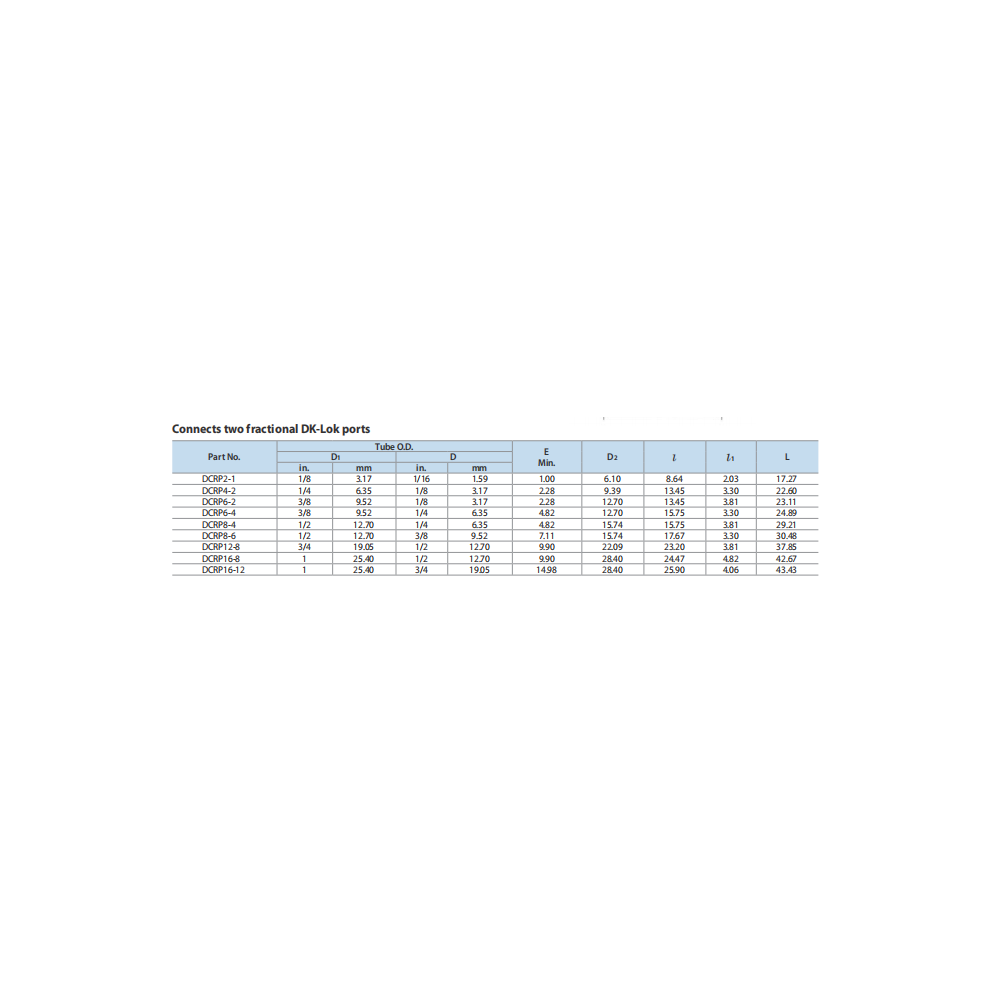

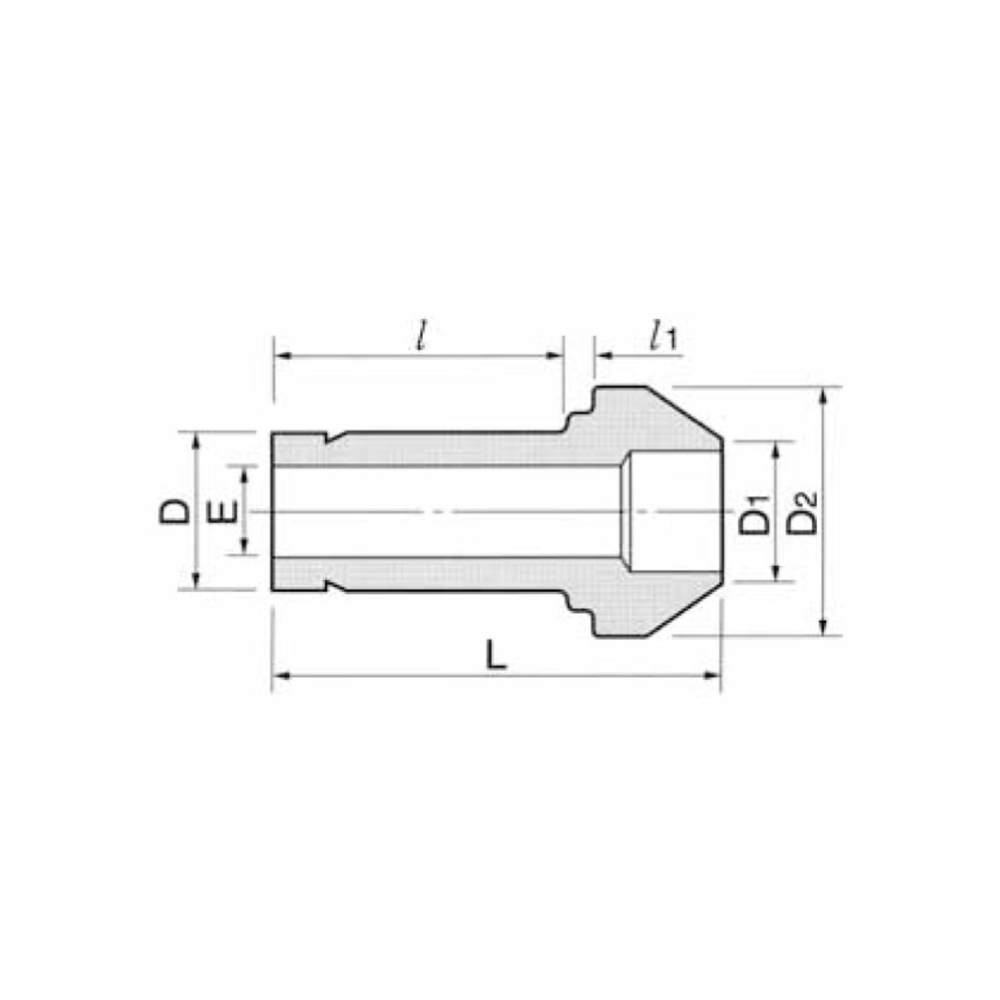

Part No
|
Tube O.D.
|
|
|
|
D1 (inches)
|
D (inches)
|
|
DCRP2-1 |
1/8 |
1/16 |
|
DCRP4-2 |
1/4 |
1/8 |
|
DCRP6-2 |
3/8 |
1/8 |
|
DCRP6-4 |
3/8 |
1/4 |
|
DCRP8-4 |
1/2 |
1/4 |
|
DCRP8-6 |
1/2 |
3/8 |
|
DCRP12-8 |
3/4 |
1/2 |
|
DCRP16-8 |
1 |
1/2 |
|
DCRP16-12 |
1 |
3/4 |
