Brand:

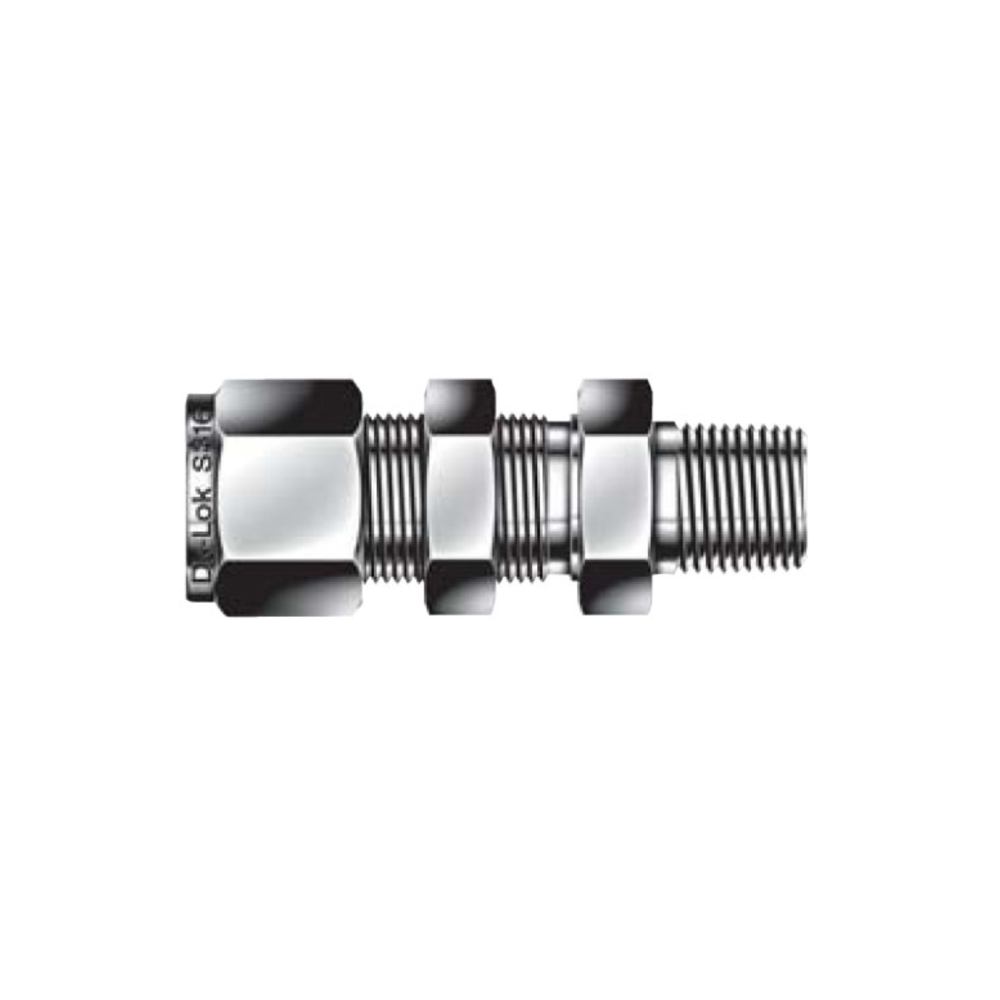

DK-LOK SS316 Bulkhead Male Connector DMCB-N Series
Tube to Male Pipe
Model No.
DMCBX-XN-SS
DK-Lok DMCB-N bulkhead male connectors are designed to connect individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

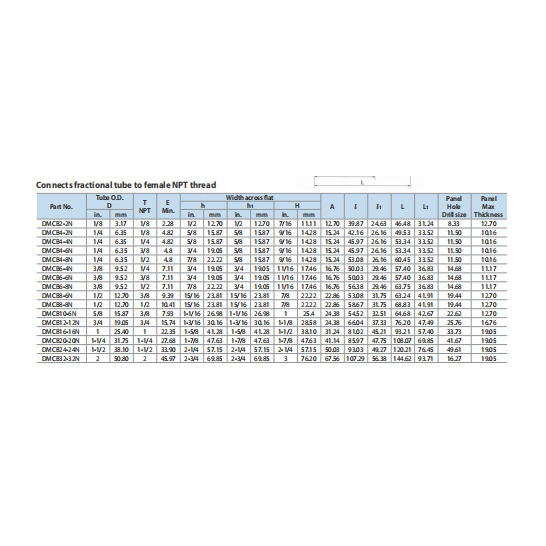

Part No |
Tube O.D. D (inches) |
T NPT |
|
DMCB2-2N |
1/8 |
1/8 |
|
DMCB4-2N |
1/4 |
1/8 |
|
DMCB4-4N |
1/4 |
1/4 |
|
DMCB4-6N |
1/4 |
3/8 |
|
DMCB4-8N |
1/4 |
1/2 |
|
DMCB6-4N |
3/8 |
1/4 |
|
DMCB6-6N |
3/8 |
3/8 |
|
DMCB6-8N |
3/8 |
1/2 |
|
DMCB8-6N |
1/2 |
3/8 |
|
DMCB8-8N |
1/2 |
1/2 |
|
DMCB10-6N |
5/8 |
3/8 |
|
DMCB12-12N |
3/4 |
3/4 |
|
DMCB16-16N |
1 |
1 |
|
DMCB20-20N |
1-1/4 |
1-1/4 |
|
DMCB24-24N |
1-1/2 |
1-1/2 |
|
DMCB32-32N |
2 |
2 |
|
DMC16-8G |
1 |
1/2 |
|
DMC16-12G |
1 |
3/4 |
|
DMC16-16G |
1 |
1 |
|
DMC20-20G |
1-1/4 |
1-1/4 |
|
DMC24-24G |
1-1/2 |
1-1/2 |
