Brand:

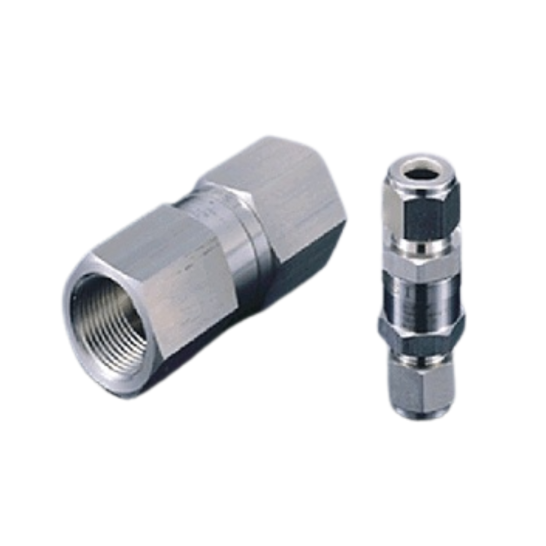

DK-LOK SS316 High Pressure Check Valve (1/2" FNPT 10PSI) VH36B Series
Compact Check Valves
Model No.
VH36B-M-8N-10-SS
Features
- Fixed and adjustable cracking pressure.
- Reliable DK-LOK Tube Fitting, NPT and ISO pipe end connections.
- Stainless and Brass material construction.
- High pressure 6,000 psig (413 bar)
- Seal blow-out proof design with the bonded seal on poppet.

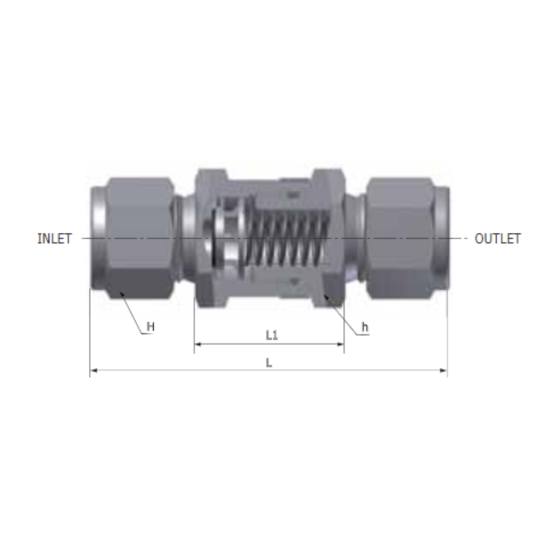

| Size | CV | L (in.) | L1(in.) | H(in.) | h(in.) | Pressure Rating psig(bar) |
| 1/2 in. Male NPT | 1.8 | 69.3(2.73) | 31.2(1.23) | - | 1 | 6000(413) |
