DK-LOK BRASS Reducing Adapter (Male NPT to larger female NPT) GABMF Series

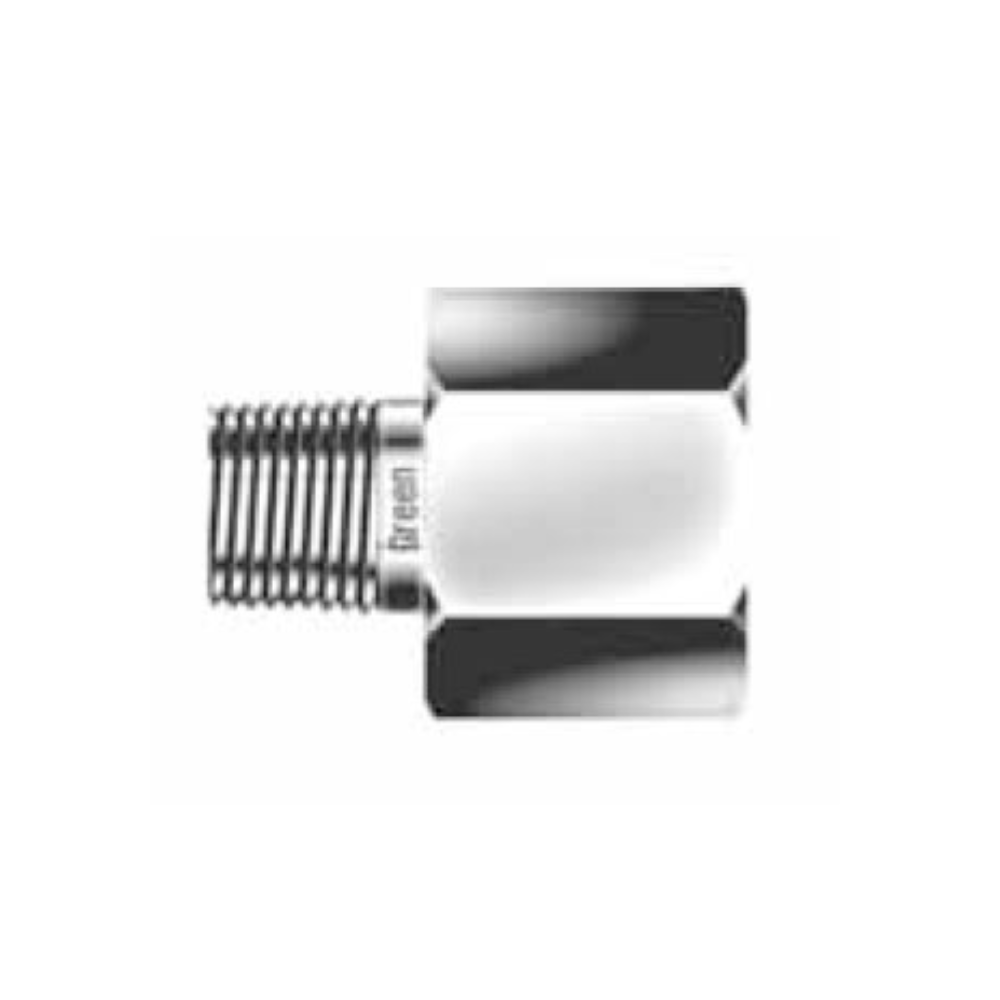

BRASS Reducing Adapter (Male NPT to larger female NPT)
Model No.
GABMF -N-B
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

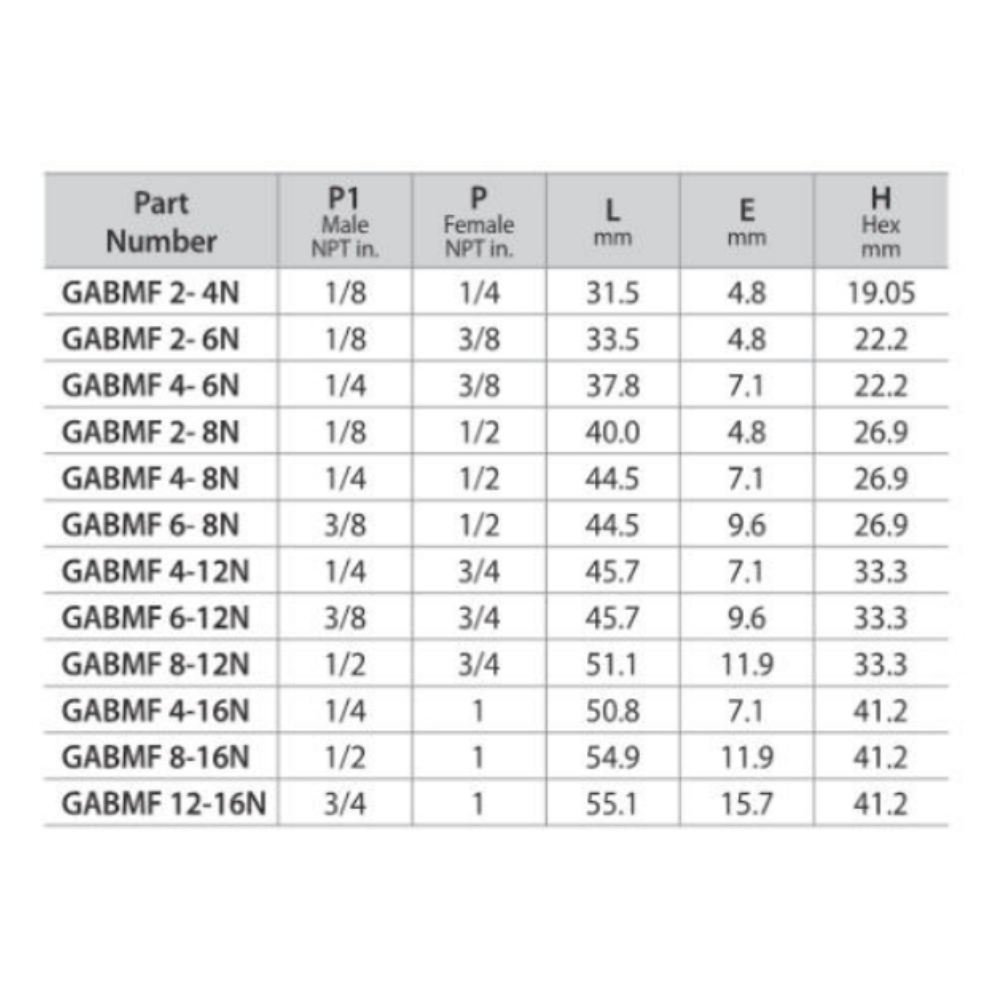

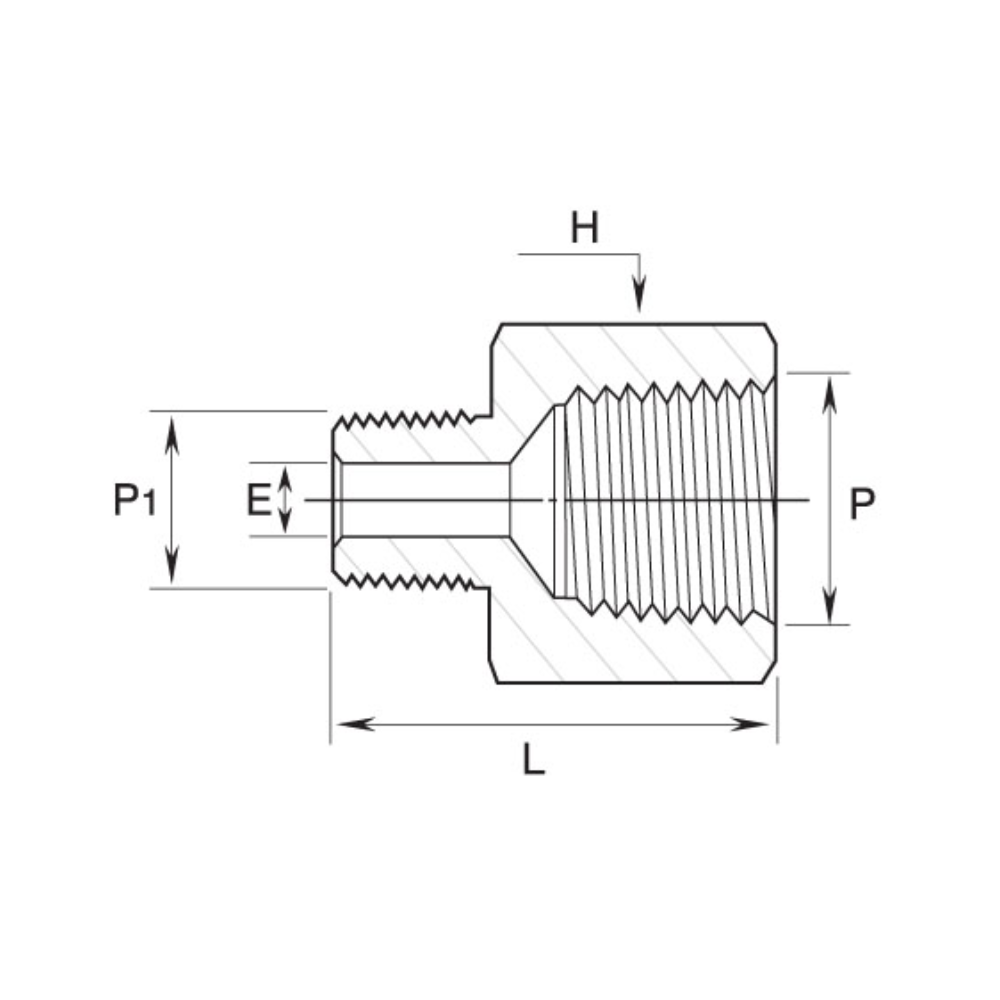

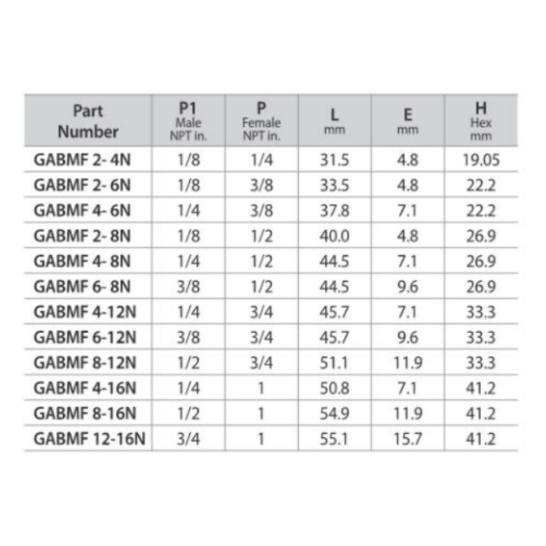

| Part number | P1 (Male NPT in.) | P (Female NPT in.) | L (mm) | E(mm) | H(Hex mm) |
| GABMF 2-4N-B | 1/8 | 1/4 | 31.5 | 4.8 | 19.05 |
| GABMF 2-6N-B | 1/8 | 3/8 | 33.5 | 4.8 | 22.2 |
| GABMF 4-6N-B | 1/4 | 3/8 | 37.8 | 7.1 | 22.2 |
| GABMF 2-8N-B | 1/8 | 1/2 | 40.0 | 4.8 | 26.9 |
| GABMF 4-8N-B | 1/4 | 1/2 | 44.5 | 7.1 | 26.9 |
| GABMF 6-8N-B | 3/8 | 1/2 | 44.5 | 9.6 | 26.9 |
| GABMF 4-12N-B | 1/4 | 3/4 | 45.7 | 7.1 | 33.3 |
| GABMF 6-12N-B | 3/8 | 3/4 | 45.7 | 9.6 | 33.3 |
| GABMF 8-12N-B | 1/2 | 3/4 | 51.1 | 11.9 | 33.3 |
| GABMF 4-16N-B | 1/4 | 1 | 50.8 | 7.1 | 41.2 |
| GABMF 8-16N-B | 1/2 | 1 | 54.9 | 11.9 | 41.2 |
| GABMF 12-16N-B | 3/4 | 1 | 55.1 | 15.7 | 41.2 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
