DK-LOK SS316 Elbow (Female NPT both ends) GL Series
SS316 Elbow (Female NPT both ends)
Model No.
GL-N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

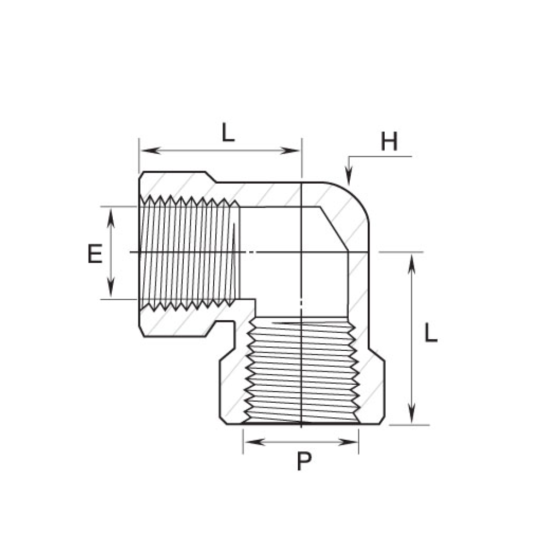

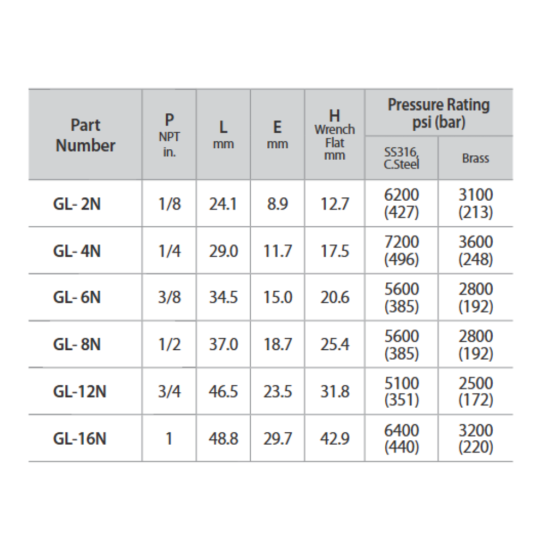

| Part number | P (NPT in.) | L (mm) | E (mm) | H(Wrench Flat mm) |
| GL-2N-SS | 1/8 | 24.1 | 8.9 | 12.7 |
| GL-4N-SS | 1/4 | 29.0 | 11.7 | 17.5 |
| GL-6N-SS | 3/8 | 34.5 | 15.0 | 20.6 |
| GL-8N-SS | 1/2 | 37.0 | 18.7 | 25.4 |
| GL-12N-SS | 3/4 | 46.5 | 23.5 | 31.8 |
| GL-16N-SS | 1 | 48.8 | 29.7 | 42.9 |
