Brand:

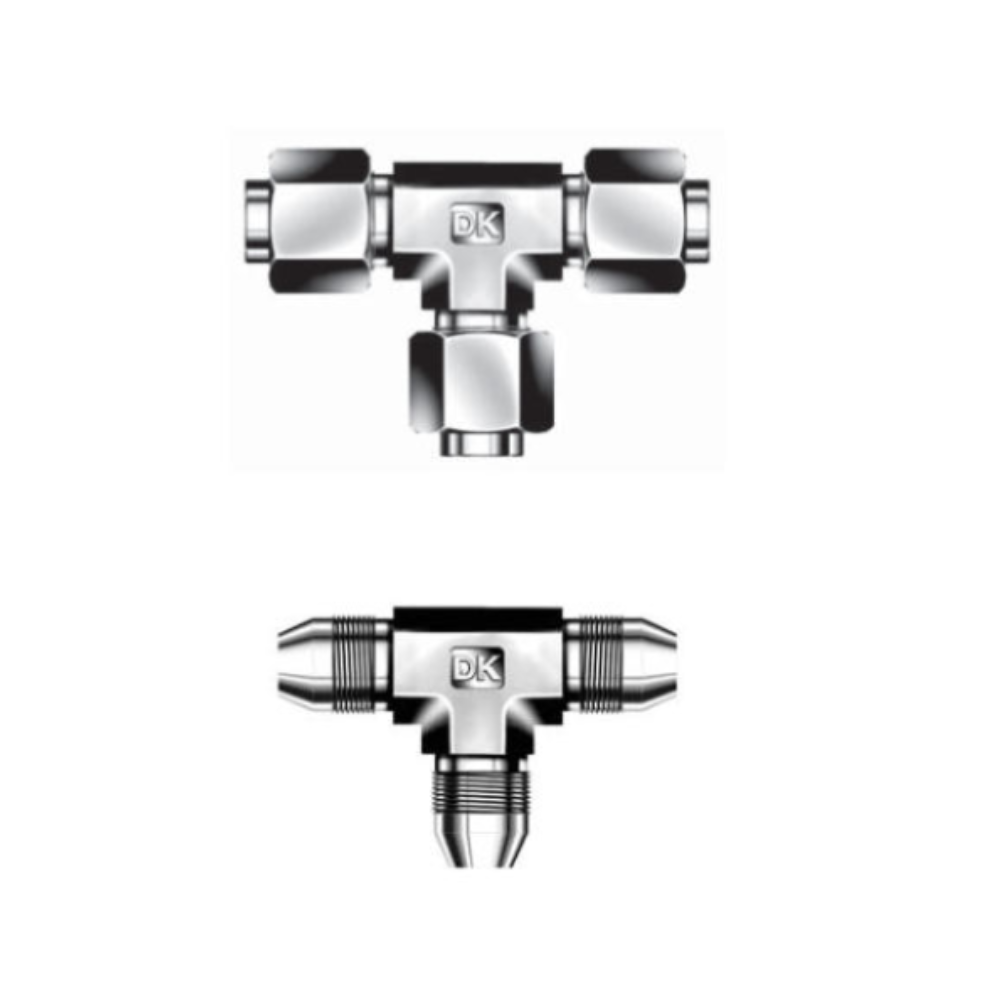

DK-LOK BRASS Union Tee (Tube to Tube) KT Series
BRASS Union Tee (Tube to Tube)
Model No.
KT-T-B
DK-Lok K Series JIC Tube Fitting consists of body, sleeve and nut and meets the requirements of SAE J514 and ISO 8434-2 standards.
DK-Lok K Series JIC Tube Fitting are capable of connecting to inch and metric tube with no changing the Sleeve and Nut.
The fitting body without sleeve and nut is widely used as a hose adapter for connection to a female swivel on a hose assembly.

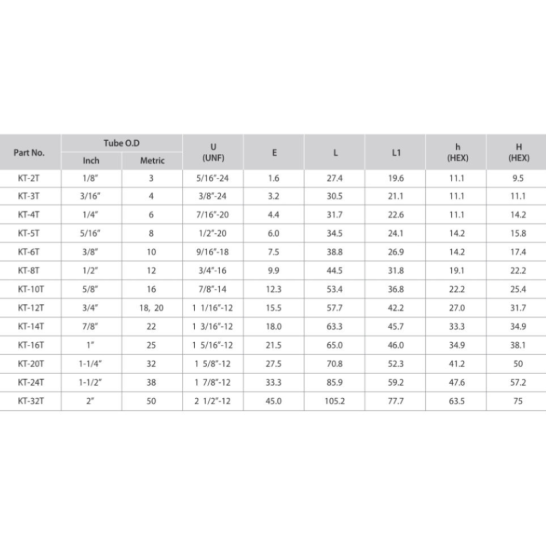

| Part number | Tube O.D (Inch) | Tube O.D (Metric) |
| KT-2T-B | 1/8" | 3 |
| KT-3T-B | 3/16" | 4 |
| KT-4T-B | 1/4" | 6 |
| KT-5T-B | 5/16" | 8 |
| KT-6T-B | 3/8" | 10 |
| KT-8T-B | 1/2" | 12 |
| KT-10T-B | 5/8" | 16 |
| KT-12T-B | 3/4" | 18,20 |
| KT-14T-B | 7/8" | 22 |
| KT-16T-B | 1" | 25 |
| KT-20T-B | 1-1/4" | 32 |
| KT-24T-B | 1-1/2" | 38 |
| KT-32T-B | 2" | 50 |
