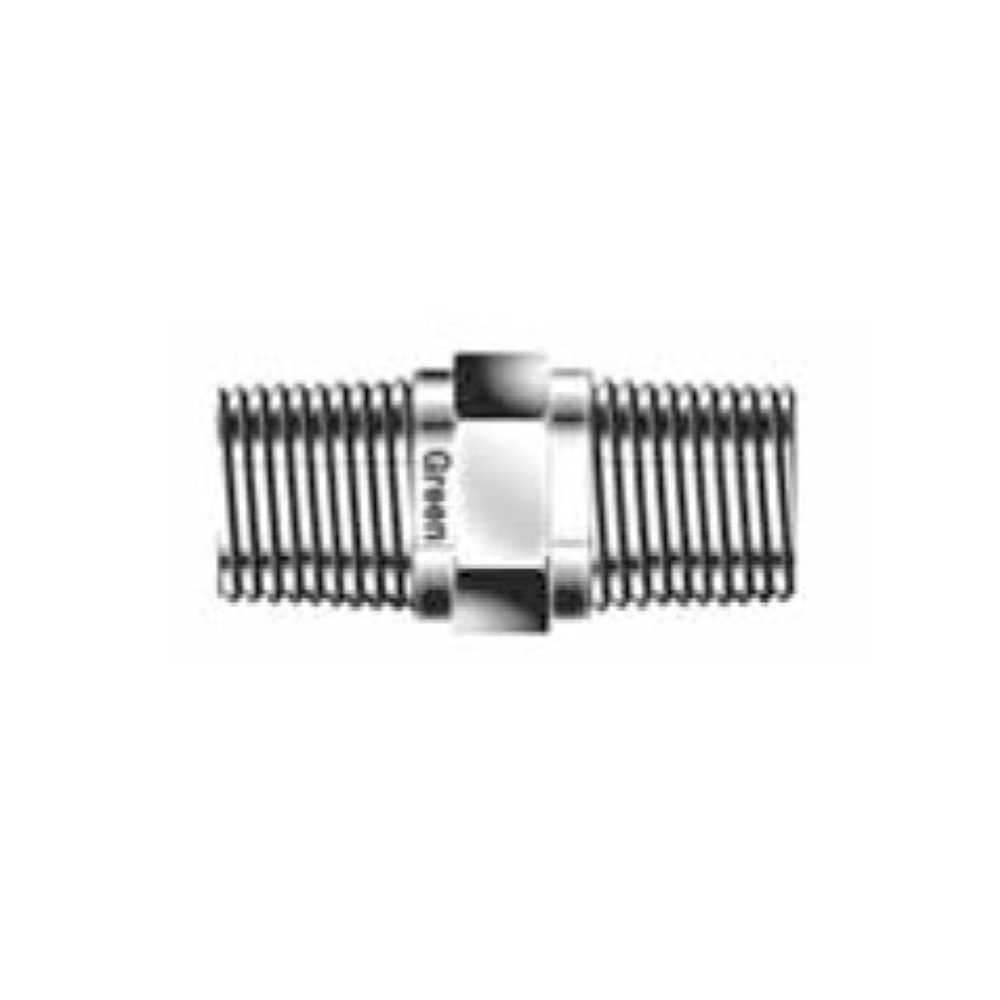

DK-LOK BRASS Hex Nipple (Male NPT both ends) GNH Series
BRASS Hex Nipple (Male NPT both ends)
Model No.
GNH-N-B
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

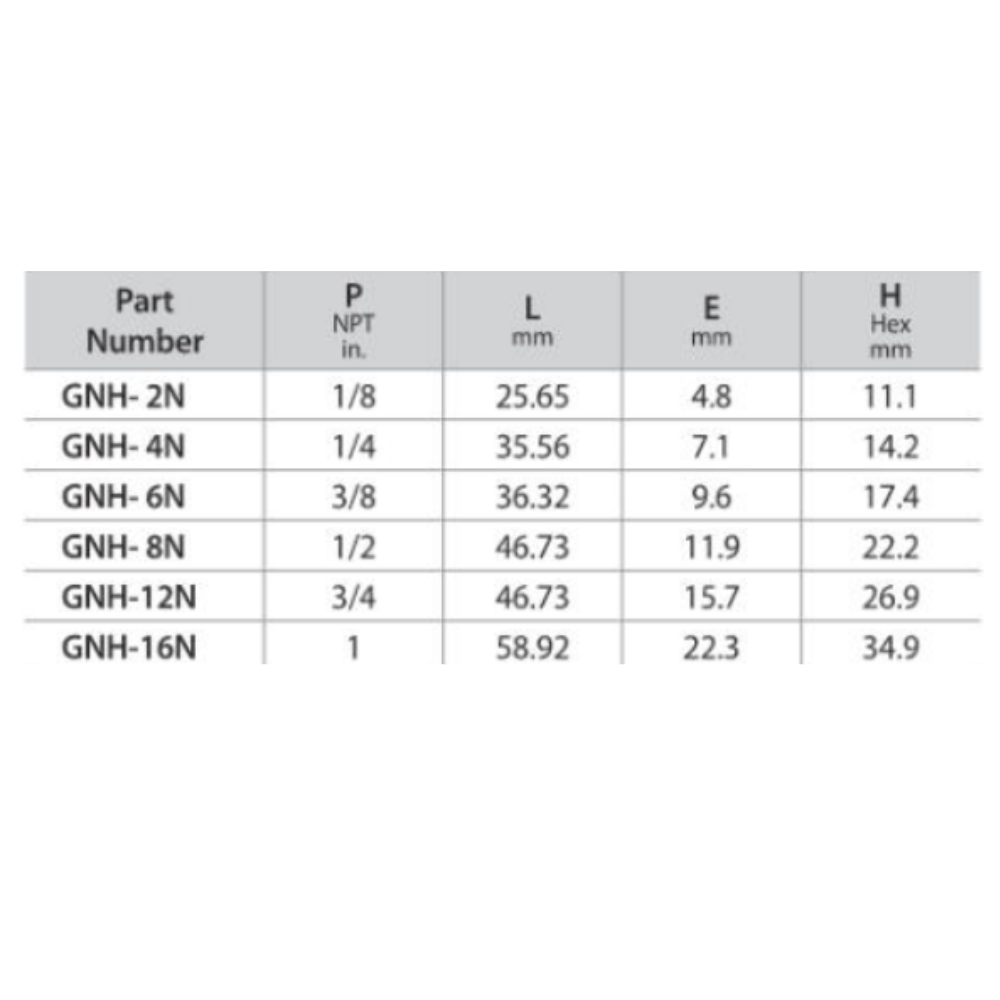

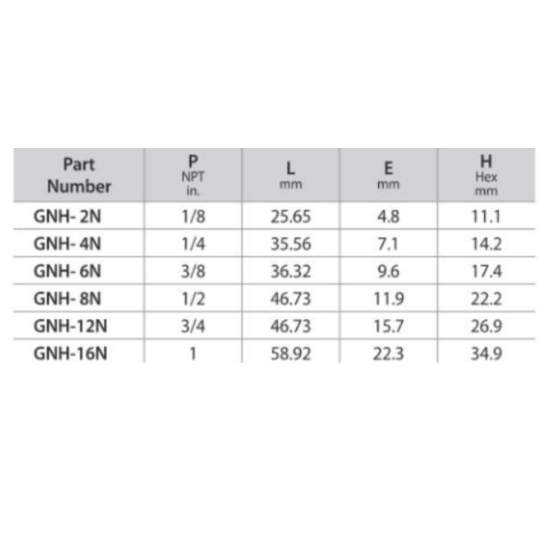

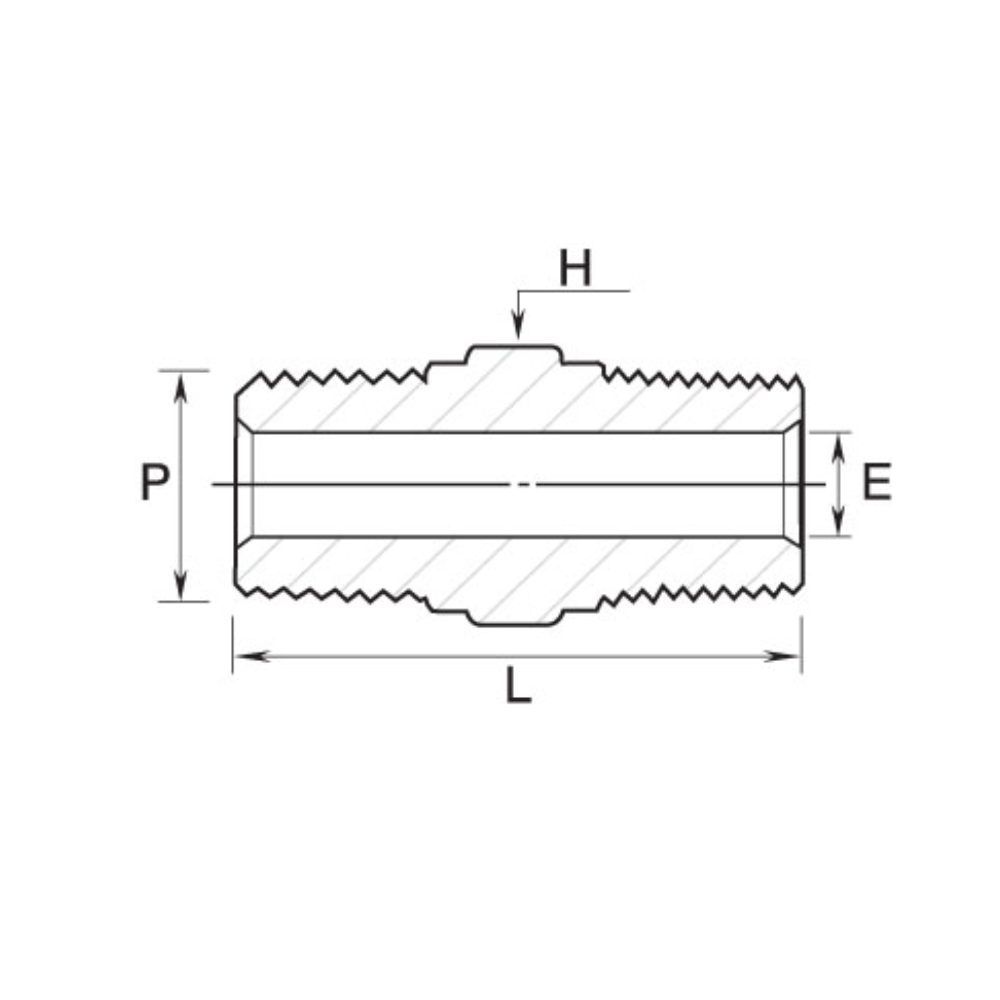

| Part number |
P (NPT in.) |
L (mm) | E (mm) | H (Hex mm) |
| GNH-2N-B | 1/8 | 25.65 | 4.8 | 11.1 |
| GNH-4N-B | 1/4 | 35.56 | 7.1 | 14.2 |
| GNH-6N-B | 3/8 | 36.32 | 9.6 | 17.4 |
| GNH-8N-B | 1/2 | 46.73 | 11.9 | 22.2 |
| GNH-12N-B | 3/4 | 46.73 | 15.7 | 26.9 |
| GNH-16N-B | 1 | 58.92 | 22.3 | 34.9 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
