DK-LOK
SS316 Adapter (Male ISO tapered to Female NPT)
Brand:
DK-LOK SS316 Pipe Cap (Female NPT) GC Series

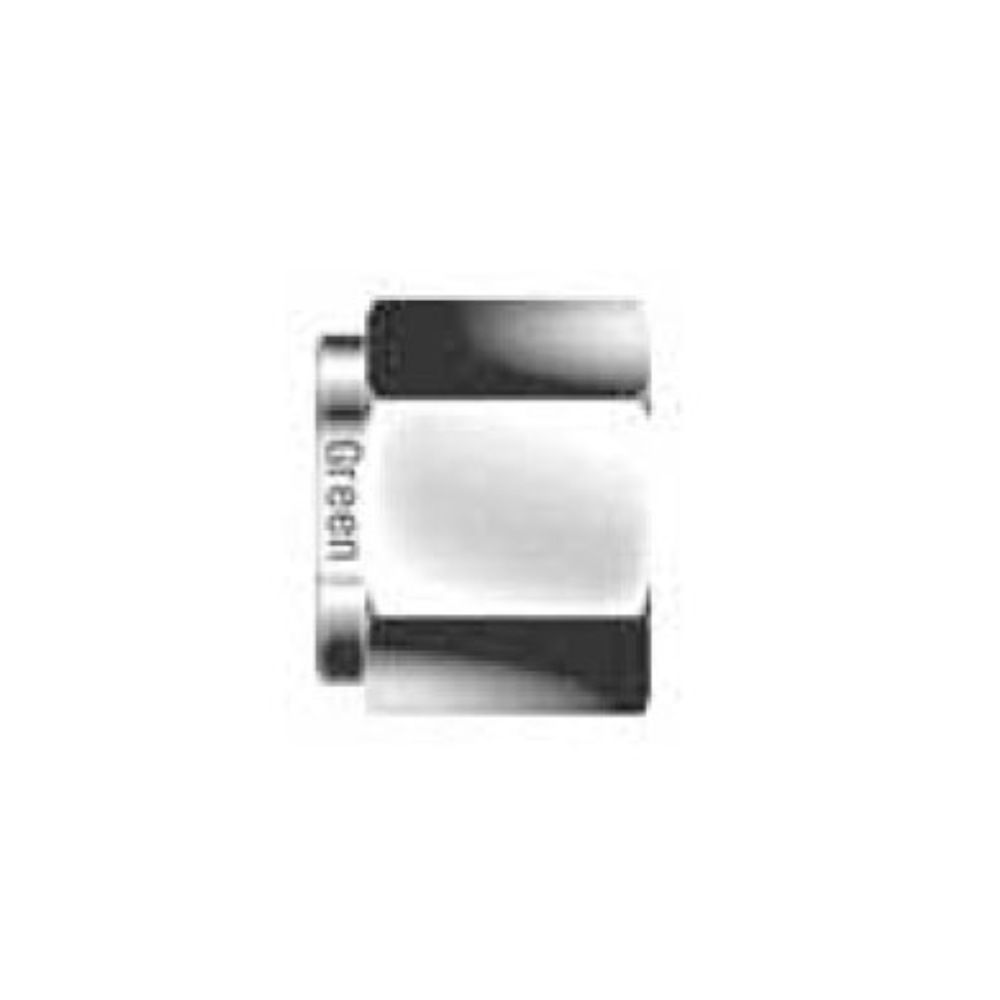

SS316 Pipe Cap (Female NPT)
Model No.
GC-N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

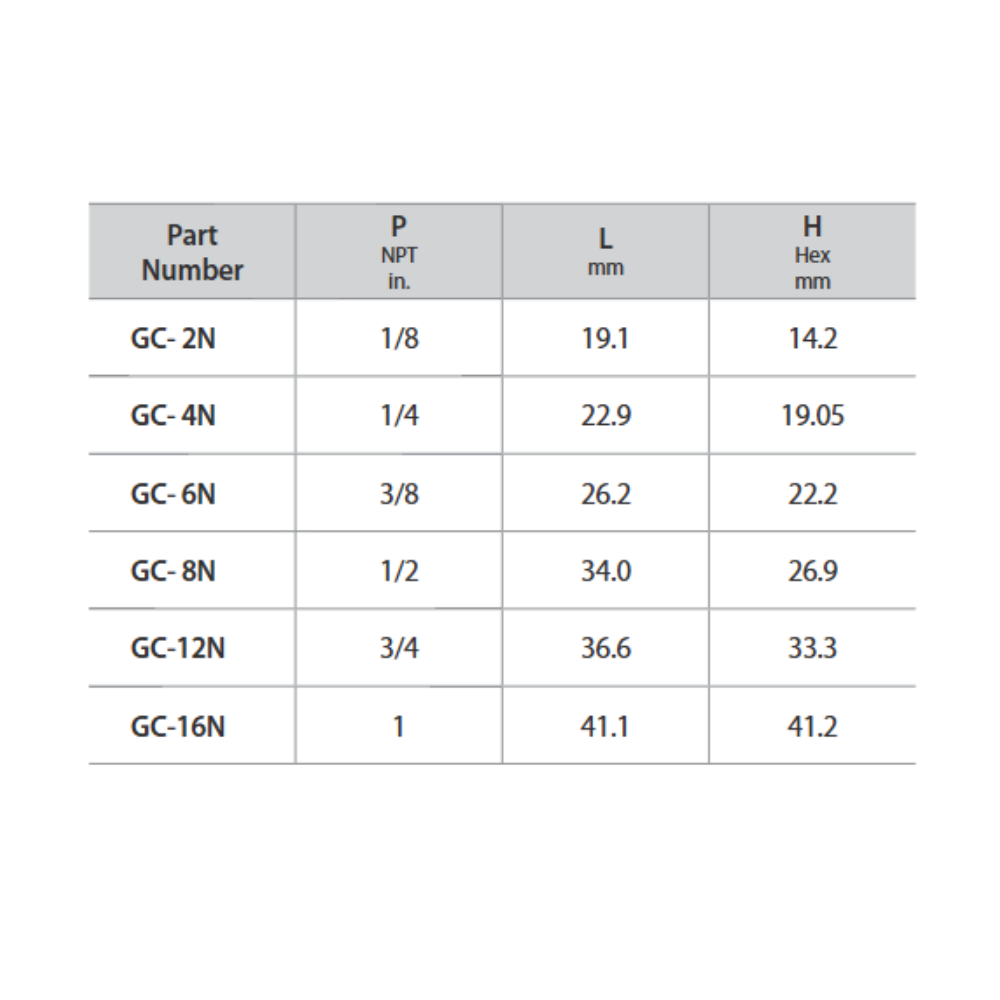

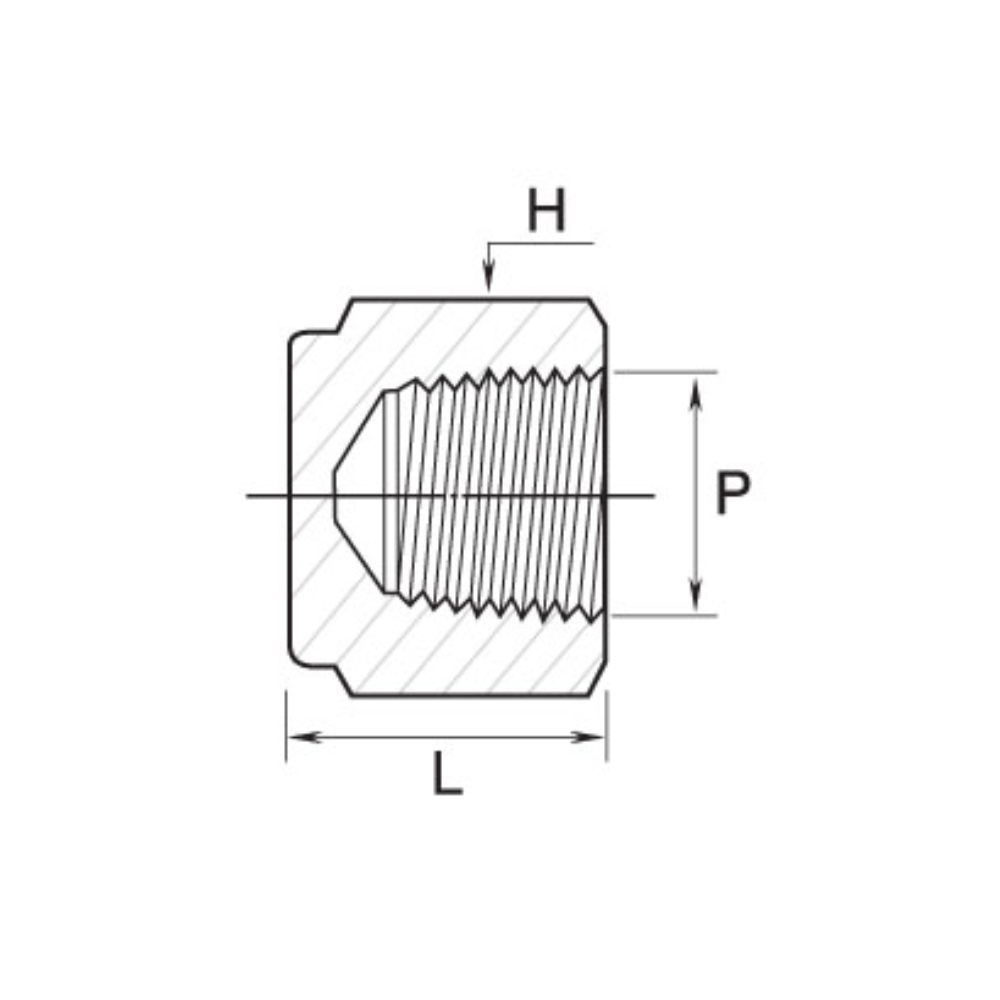

| Part number | P (NPT in.) | L (mm) | H(Hex mm) |
| GC-2N-SS | 1/8 | 19.1 | 14.2 |
| GC-4N-SS | 1/4 | 22.9 | 19.05 |
| GC-6N-SS | 3/8 | 26.2 | 22.2 |
| GC-8N-SS | 1/2 | 34.0 | 26.9 |
| GC-12N-SS | 3/4 | 36.6 | 33.3 |
| GC-16N-SS | 1 | 41.1 | 41.2 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
