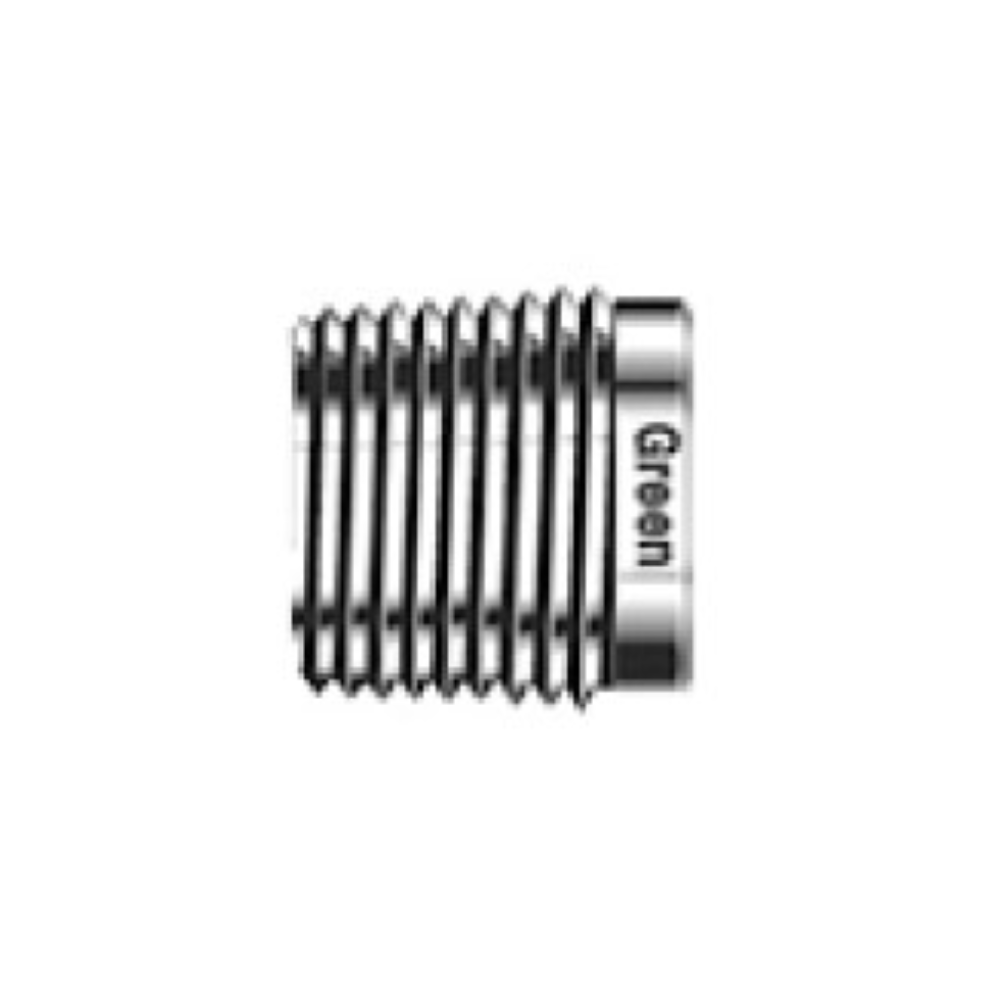

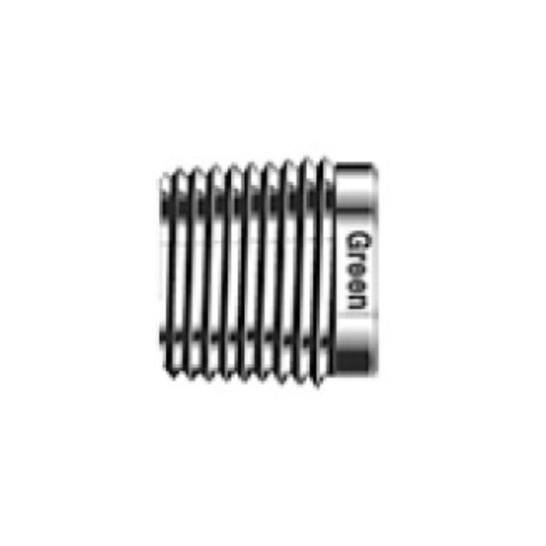

DK-LOK SS316 Hollow Hex Plug (Male NPT) GPB Series
SS316 Hollow Hex Plug (Male NPT)
Model No.
GPB-N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

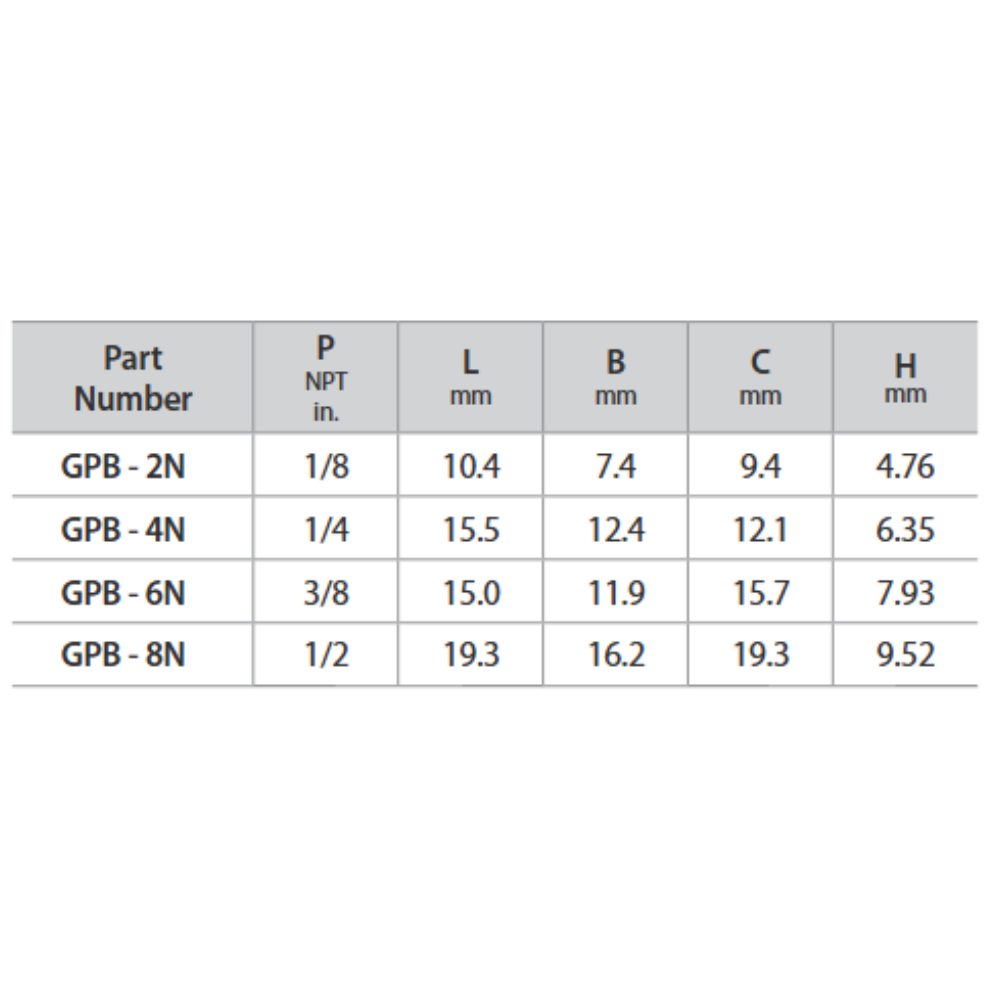

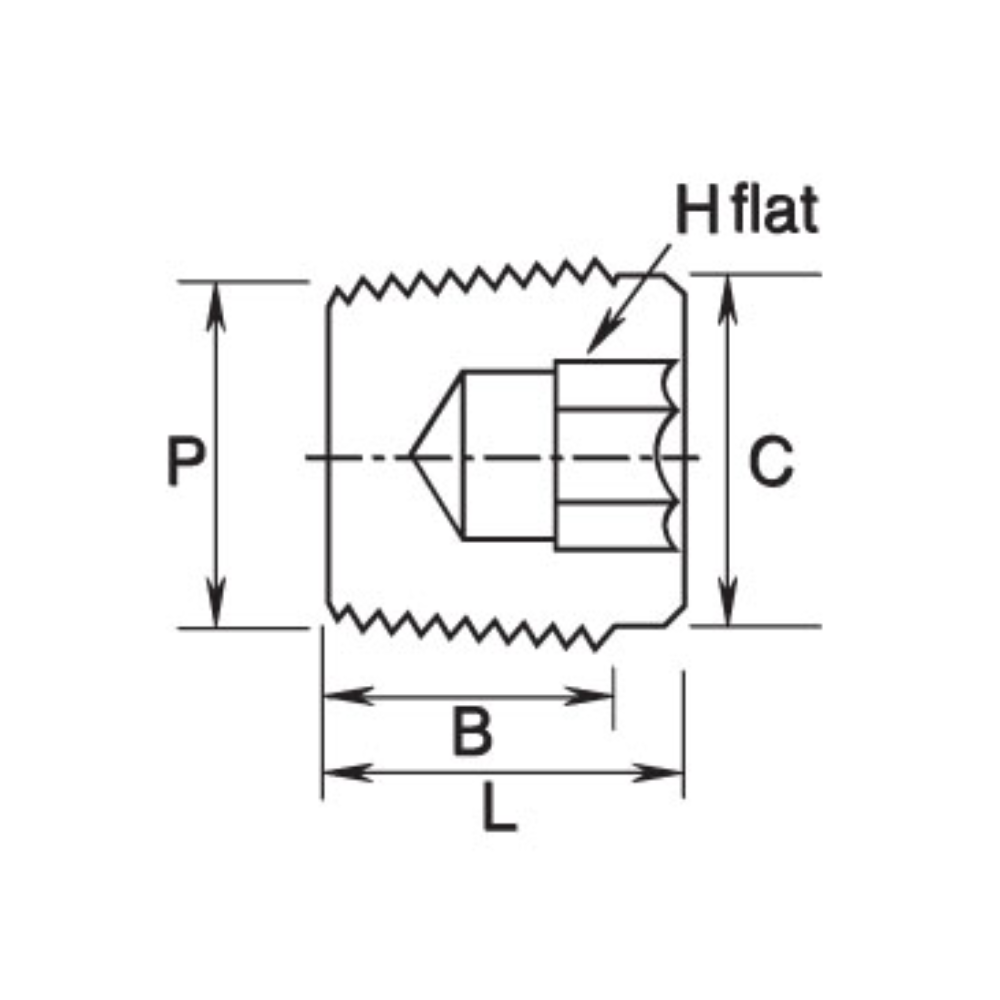

| Part number | P (NPT in.) | L (mm) | B (mm) | C(mm) | H (mm) |
| GPB-2N-SS | 1/8 | 10.4 | 7.4 | 9.4 | 4.76 |
| GPB-4N-SS | 1/4 | 15.5 | 12.4 | 12.1 | 6.35 |
| GPB-6N-SS | 3/8 | 15.0 | 11.9 | 15.7 | 7.93 |
| GPB-8N-SS | 1/2 | 19.3 | 16.2 | 19.3 | 9.52 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
