Brand:

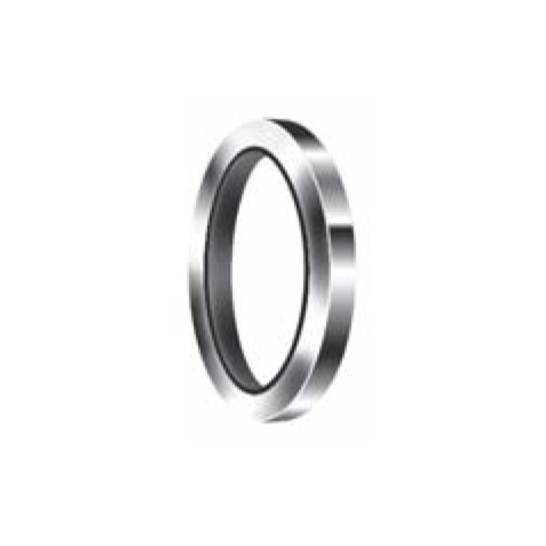

DK-LOK Copper Gasket DGC Series
Spare Parts
Model No.
DGC-X
A metal gasket performs the sealing between the reverse bevel of the fitting and the face of the female threaded component.

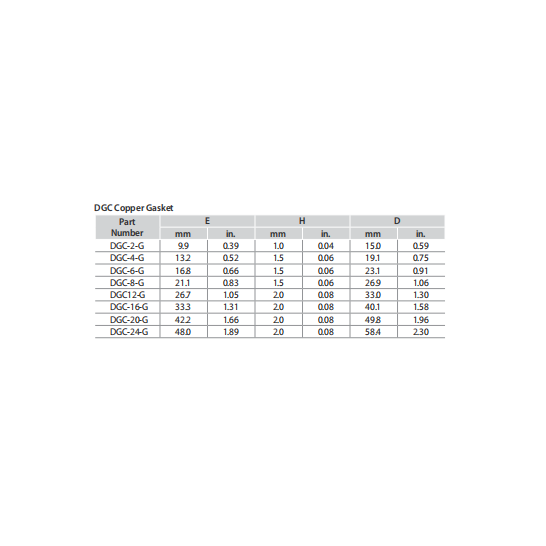

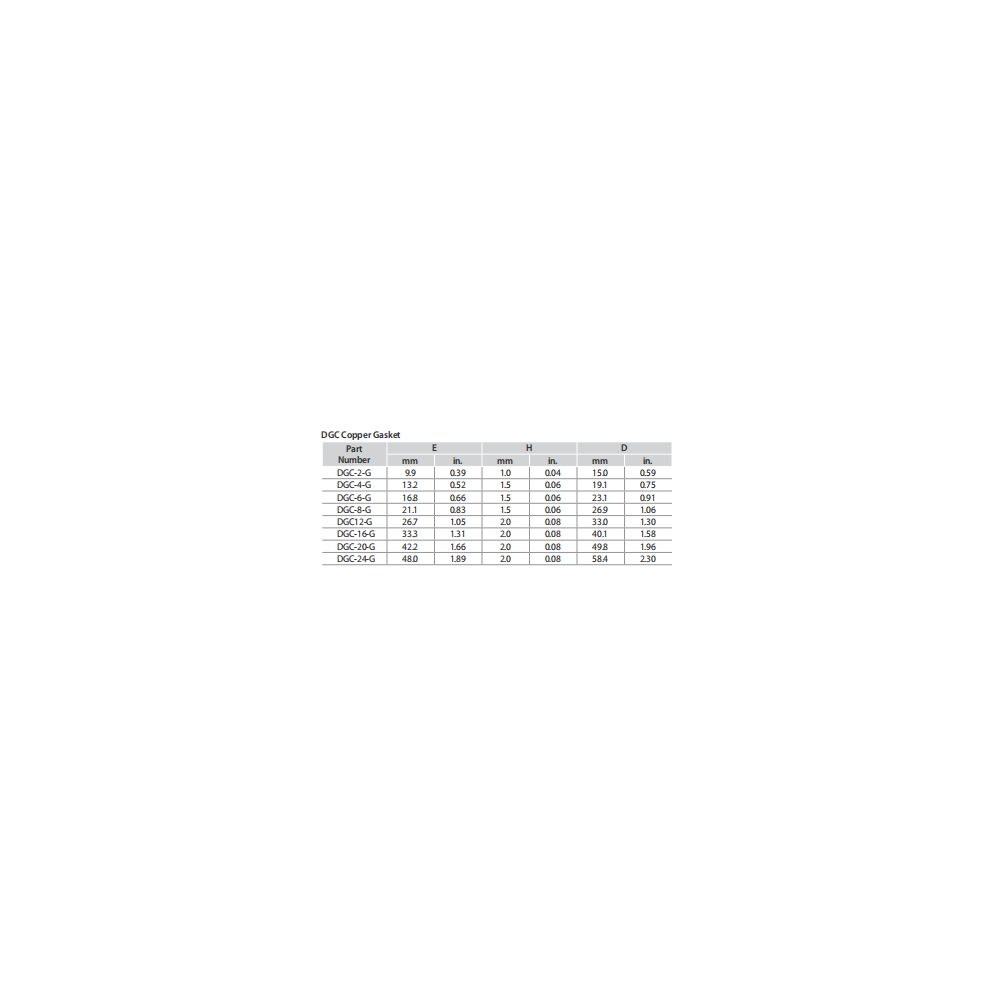

DGC Copper Gasket
|

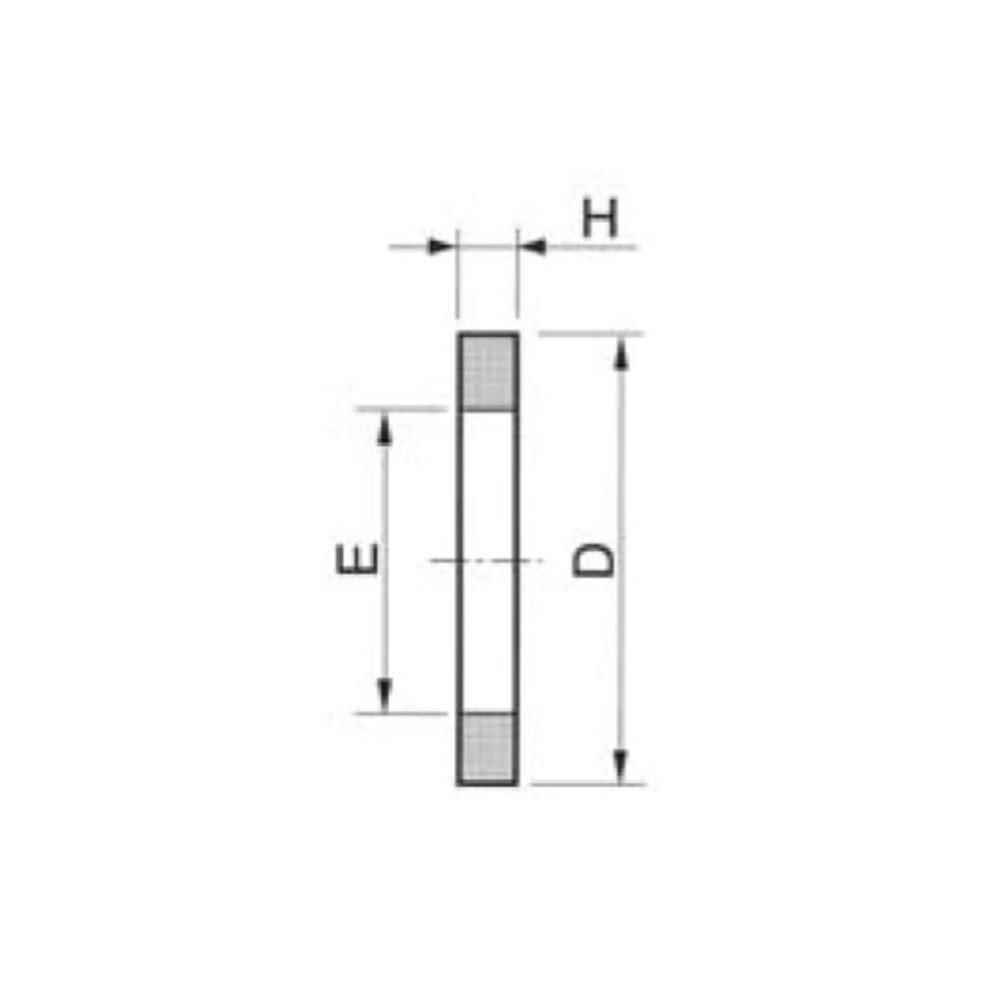

Part Number
|
H (mm)
|
D (mm)
|
|
DGC-2 |
1.0 |
15 |
|
DGC-4 |
1.5 |
19.1 |
|
DGC-6 |
1.5 |
23.1 |
|
DGC-8 |
1.5 |
26.9 |
|
DGC-12 |
2.0 |
33.0 |
|
DGC-16 |
2.0 |
40.1 |
|
DGC-20 |
2.0 |
49.8 |
|
DGC-24 |
2.0 |
58.4 |
