Brand:

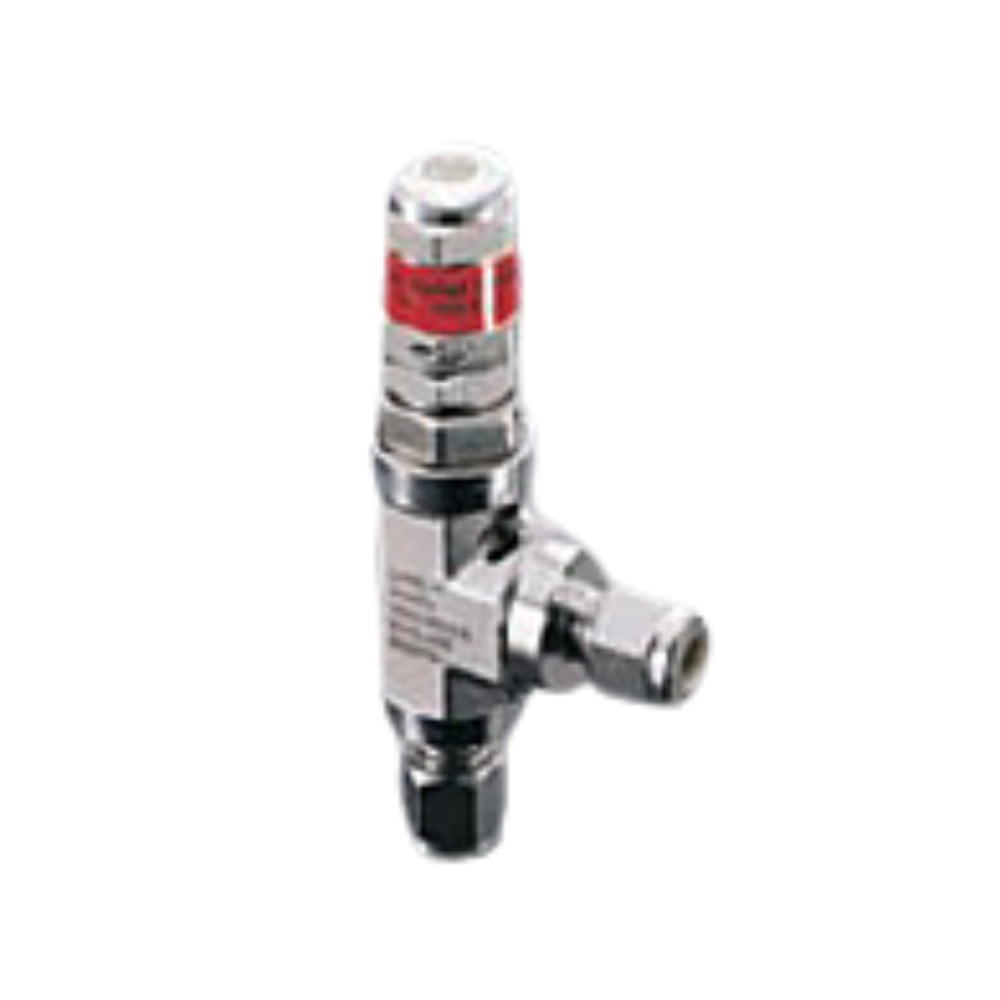

DK-LOK SS316 Low Pressure Relief Valves 1/2"MNPT-12mm Tube
Model No.
V63-MD-8N12M-S
V63-MD-8N12M-S
Data sheet
- Valve Series
- V63 Series
- Orifice Series
- 4.8 mm Orifice
- End Connection
- Male NPT, Dk-Lok
- Size Inlet x Outlet
- 1/2" Male NPT x 12mm Dk-Lok
- Seal Material
- Viton
- Spring Specify
- Factory Pressure Set Valve (psi)
- Cracking Pressure (psi)
- 10
- CE Certified
- None
- Dimensions (Orifice)
- 4.8 mm
- Dimension (Cv)
- 0.6

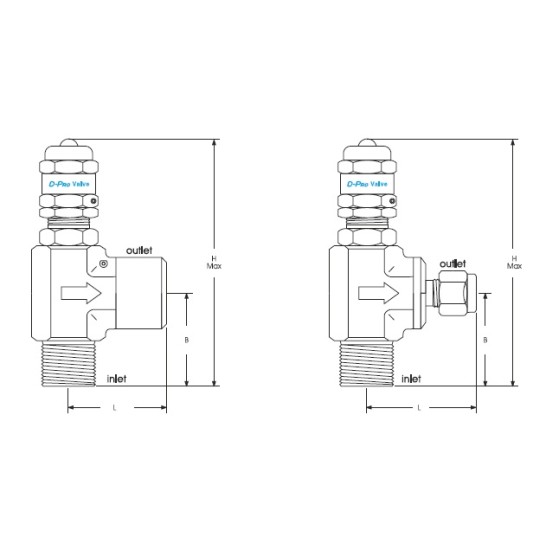

- Dimension (H)
- 98.0 mm
- Dimension (B)
- 36.0 mm
- Dimension (L)
- 42.0 mm
