Brand:

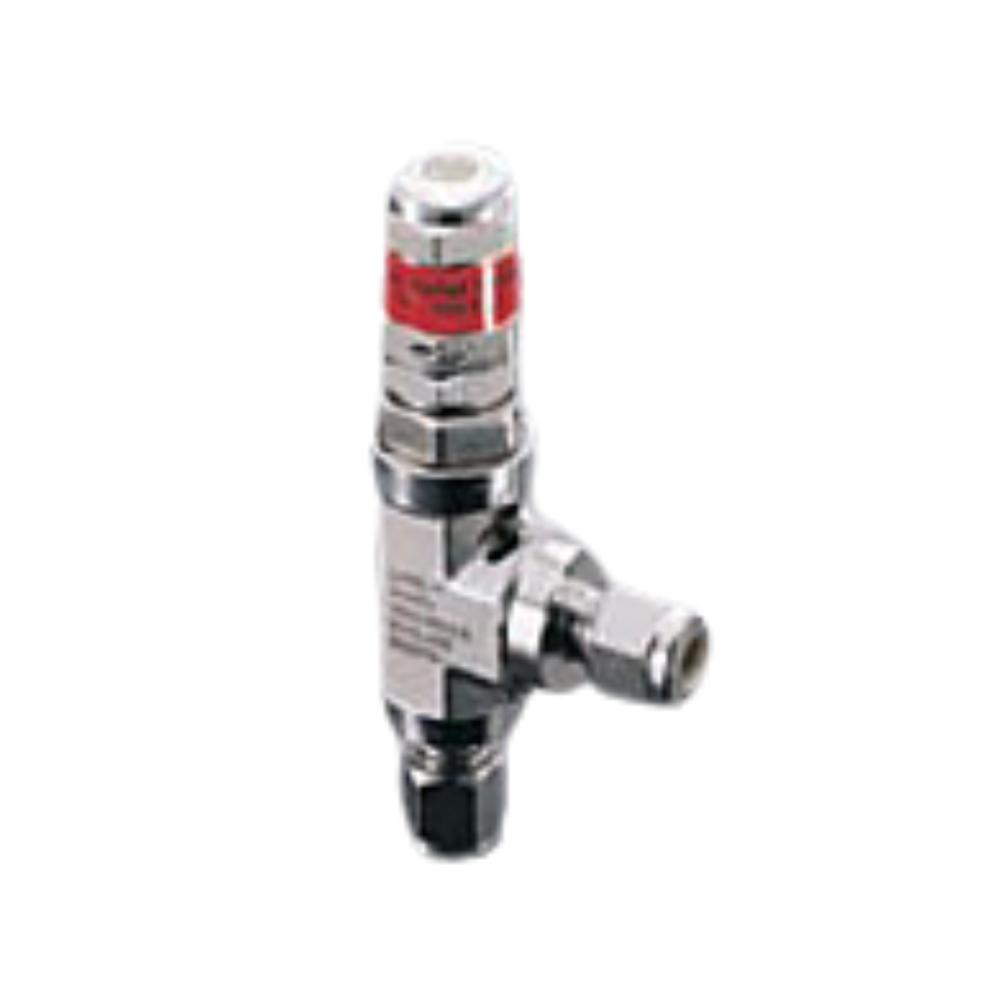

DK-LOK SS316 Relief Valves 3/8" Male ISO 7/1 x 3/8" Female ISO 7/1
Model No.
V66-MF-6R-S
V66-MF-6R-S
Data sheet
- Valve Series
- V66 Series
- Orifice Series
- 4.8 mm Orifice
- End Connection
- Male ISO 7/1, Female ISO 7/1
- Size Inlet x Outlet
- 3/8" Male ISO 7/1 x 3/8" Female ISO 7/1
- Seal Material
- Viton
- Spring Specify
- Factory Pressure Set Valve (psi)
- Cracking Pressure (psi)
- 50
- CE Certified
- None
- Dimensions (Orifice)
- 4.8 mm
- Dimension (Cv)
- 0.41

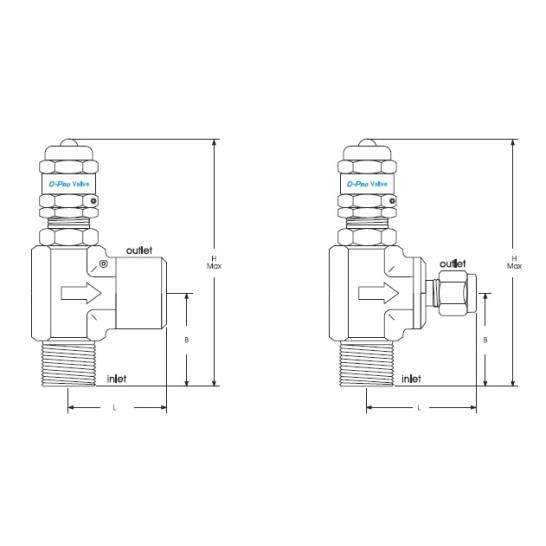

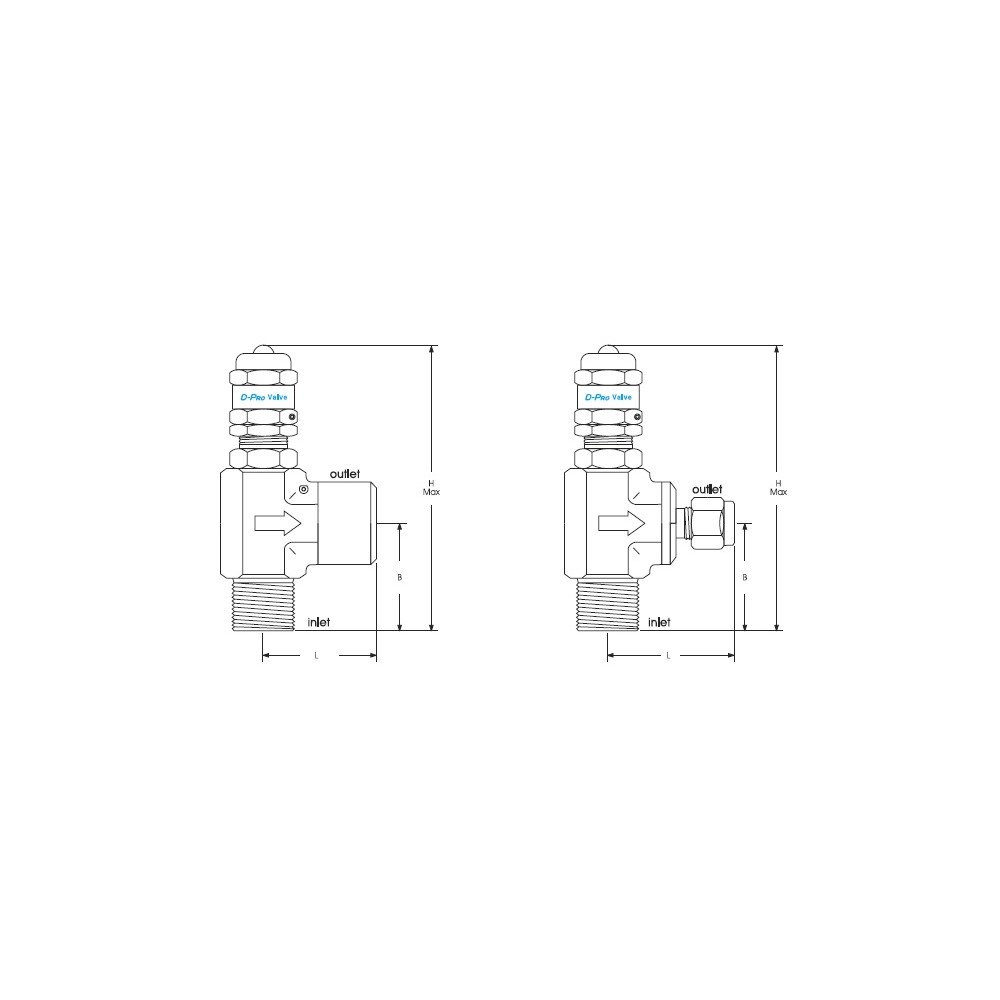

- Dimension (H)
- 94.0 mm
- Dimension (B)
- 32.0 mm
- Dimension (L)
- 35.0 mm
- Cracking Pressure (bar)
- 413.0
