DK-LOK SS316 Relief Valves 1/2" Male ISO 7/1 x 1/2" Female ISO 7/1
DK-LOK SS316 Relief Valves 1/2" Male ISO 7/1 x 1/2" Female ISO 7/1
DK-LOK SS316 Relief Valves 1/2" Male ISO 7/1 x 1/2" Female ISO 7/1
DK-LOK SS316 Relief Valves 1/2" Male ISO 7/1 x 1/2" Female ISO 7/1
DK-LOK SS316 Relief Valves 1/2" Male ISO 7/1 x 1/2" Female ISO 7/1
DK-LOK SS316 Relief Valves 1/2" Male ISO 7/1 x 1/2" Female ISO 7/1
Brand:
DK-LOK

DK-LOK SS316 Relief Valves 1/2" Male ISO 7/1 x 1/2" Female ISO 7/1

Model No.
V66-MF-8R-S
Get a quote
Like0
Share
Specifications
V66-MF-8R-S

Data sheet

Valve Series
V66 Series
Orifice Series
4.8 mm Orifice
End Connection
Male ISO 7/1, Female ISO 7/1
Size Inlet x Outlet
1/2" Male ISO 7/1 x 1/2" Female ISO 7/1
Seal Material
Viton
Spring Specify
Factory Pressure Set Valve (psi)
Cracking Pressure (psi)
50
CE Certified
None

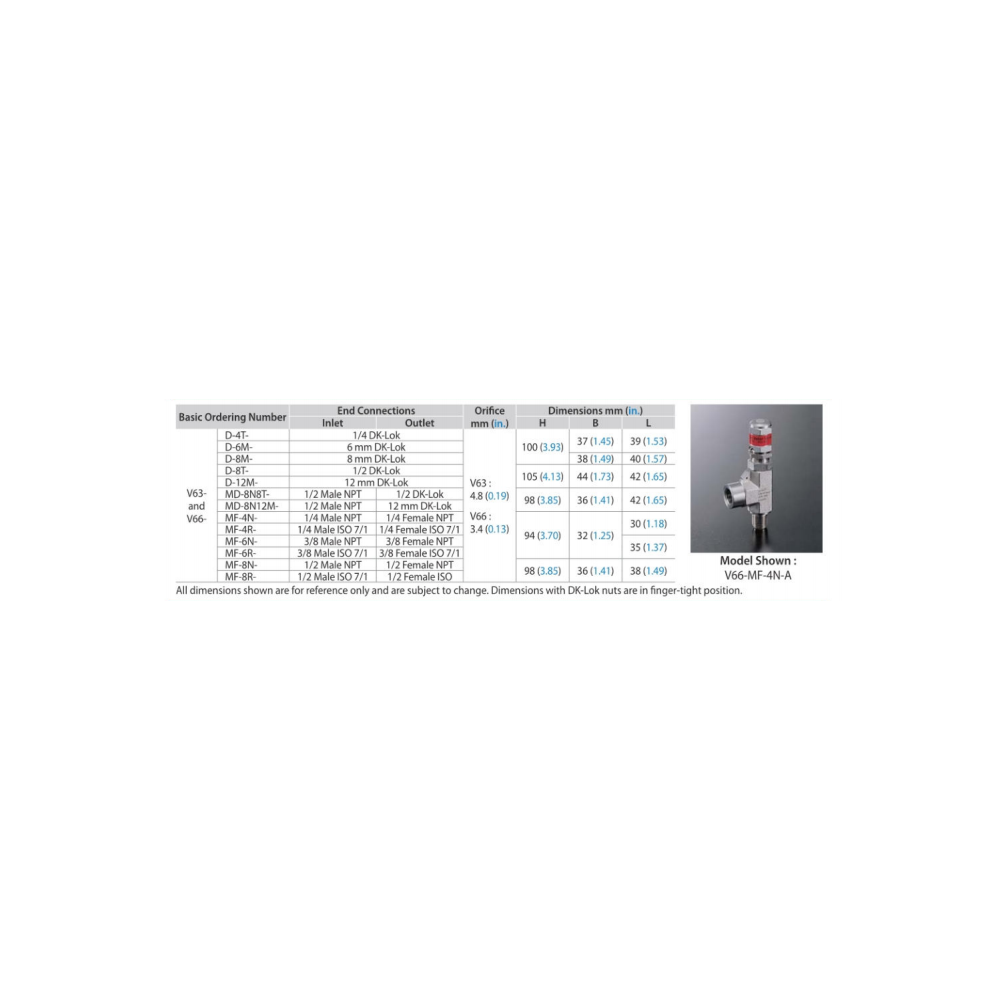

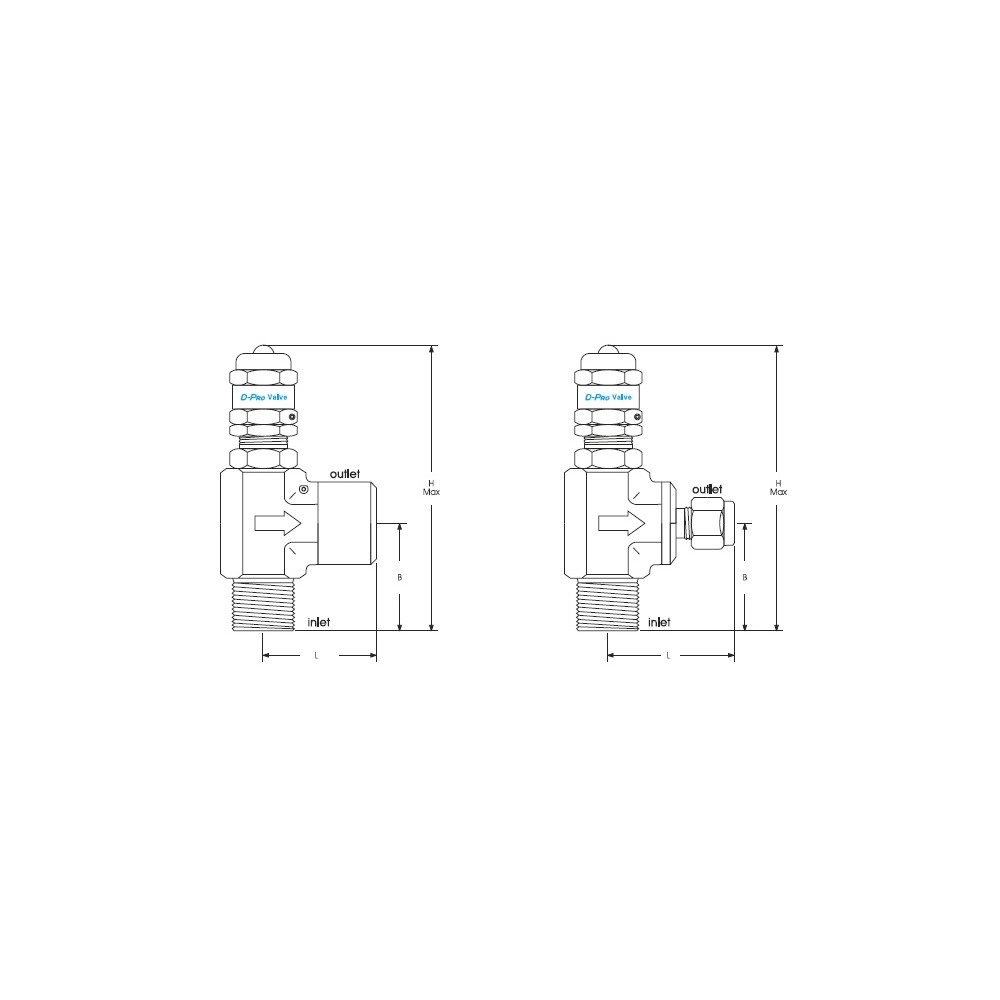

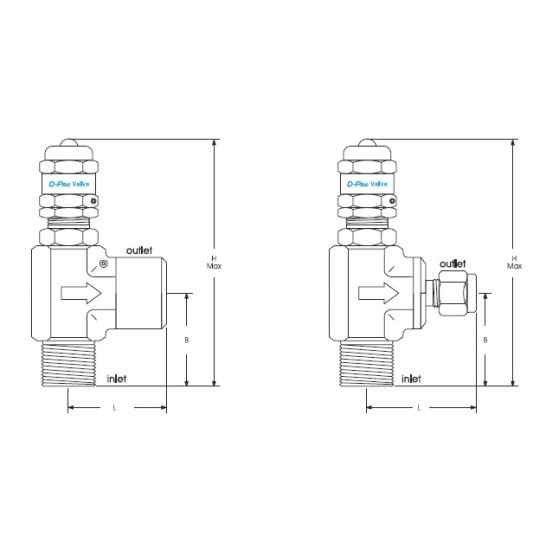

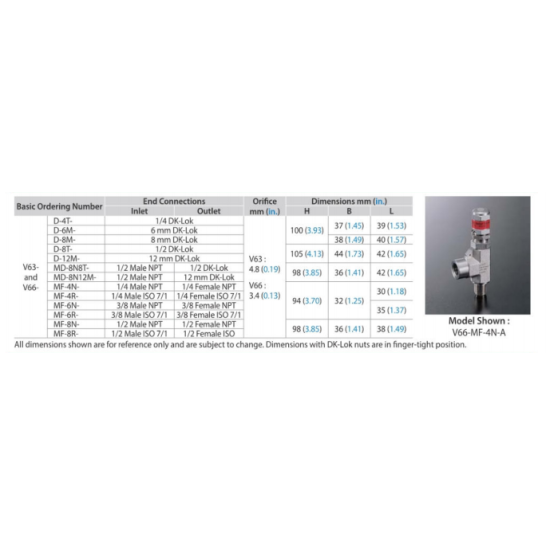

Dimensions (Orifice)
4.8 mm
Dimension (Cv)
0.41
Dimension (H)
98.0 mm
Dimension (B)
36.0 mm
Dimension (L)
38.0 mm
Cracking Pressure (bar)
413.0
