Brand:

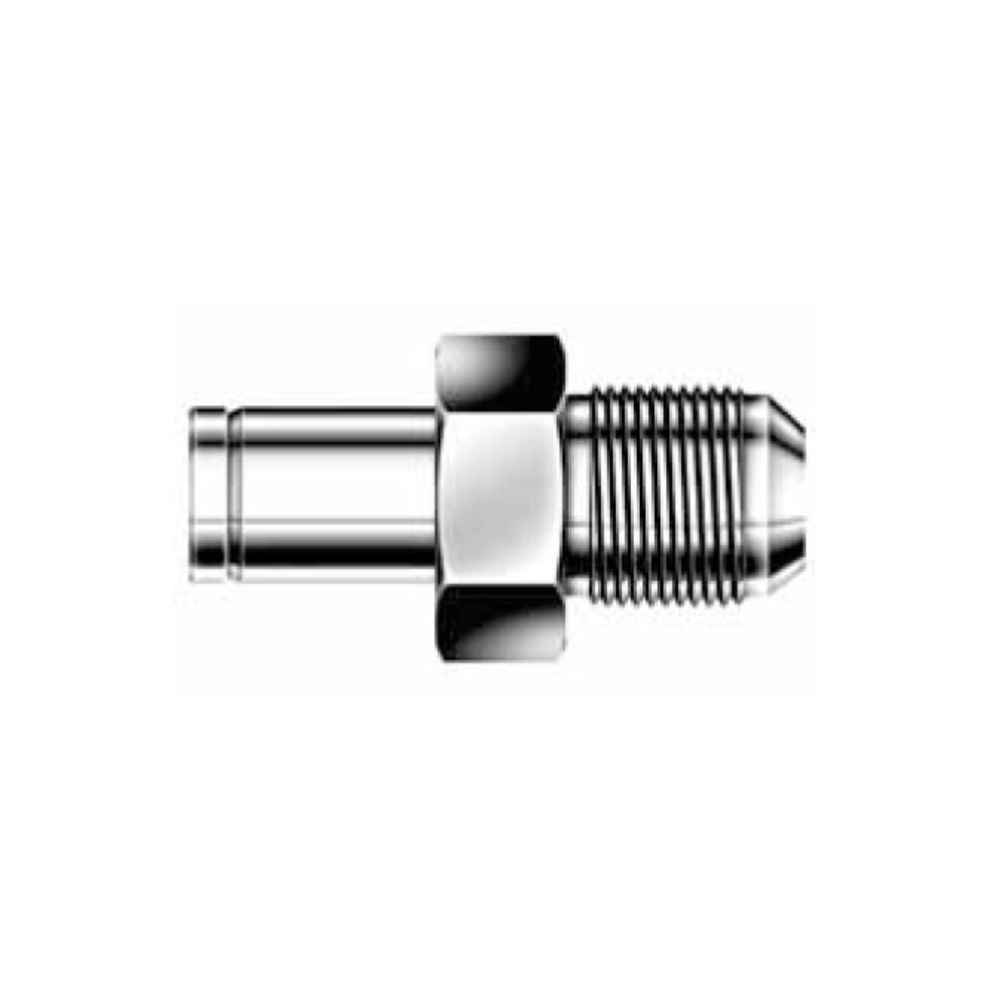

DK-LOK BRASS Male AN Adapter DMAA Series
Tube to AN Tube
Model No.
DMAAX-X-B
Tube to AN connectors are designed to connect onto individual tube lines leaving a 37 degree male JIC connection typically for connecting to a flexible hose having a female 37 degree swivel nut; in both single ferrule and double ferrule designs.
|

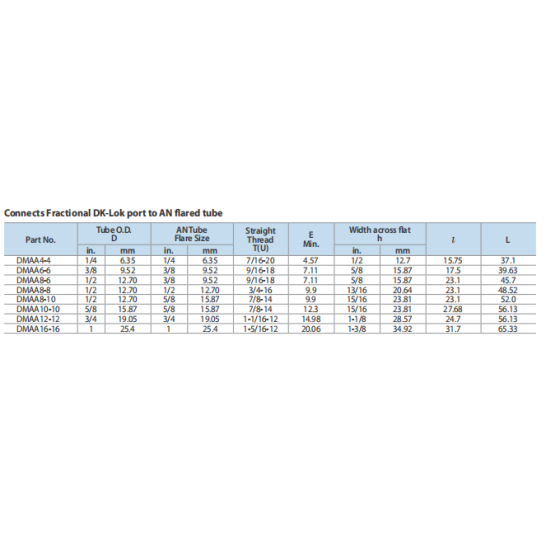

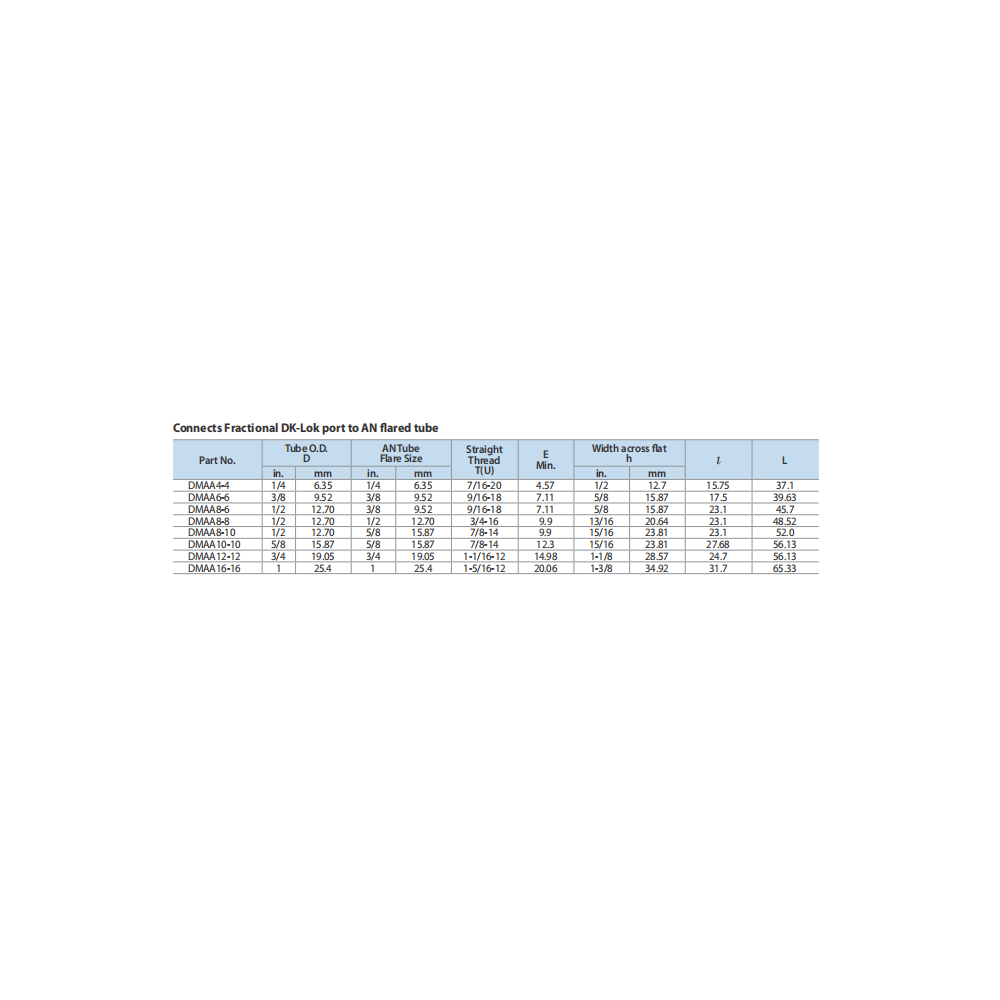

Part No
|
Tube O.D.
D (inches)
|
AN Tube
Flare Size (inches)
|
|
DMAA4-4 |
1/4 |
1/4 |
|
DMAA6-6 |
3/8 |
3/8 |
|
DMAA8-6 |
1/2 |
3/8 |
|
DMAA8-8 |
1/2 |
1/2 |
|
DMAA8-10 |
1/2 |
5/8 |
|
DMAA10-10 |
5/8 |
5/8 |
|
DMAA12-12 |
3/4 |
3/4 |
|
DMAA16-16 |
1 |
1 |
