Brand:

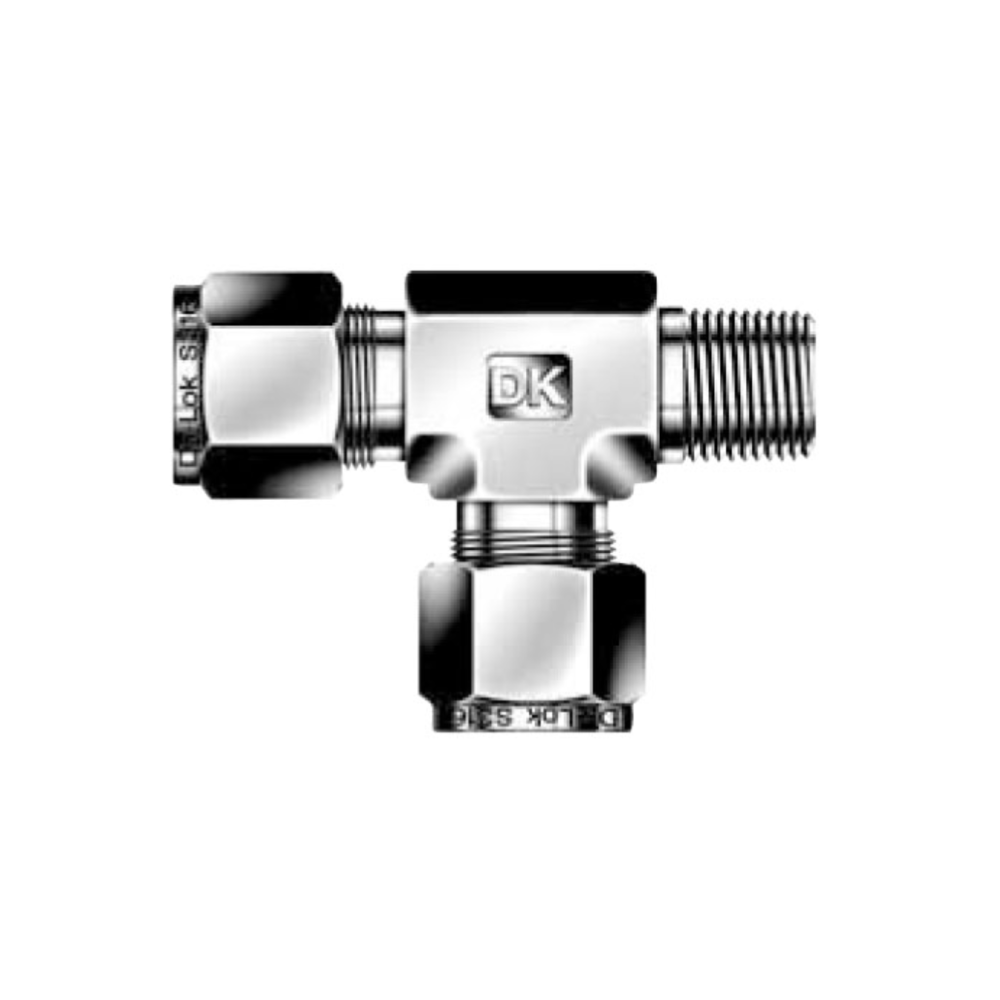

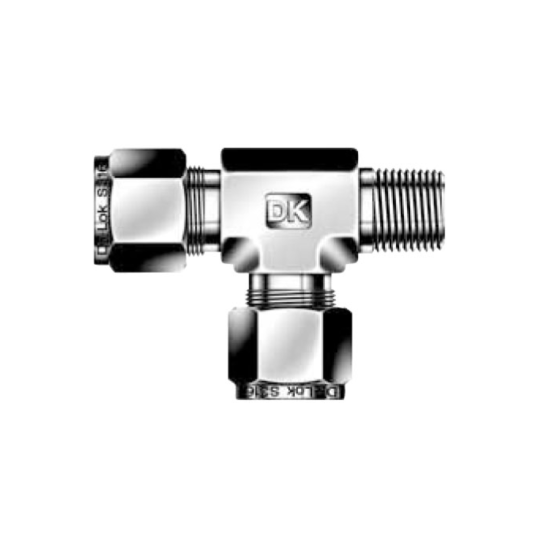

DK-LOK BRASS Male Run Tee DTRM-R Metric Series
Tube to Male Pipe
Model No.
DTRMXM-XR-B
DK-Lok DTRM-R male run tees are designed to connect two individual fractional or metric tube lines to a female British Standard Pipe Tapered (BSPT) threaded port in both single ferrule and double ferrule designs.
|

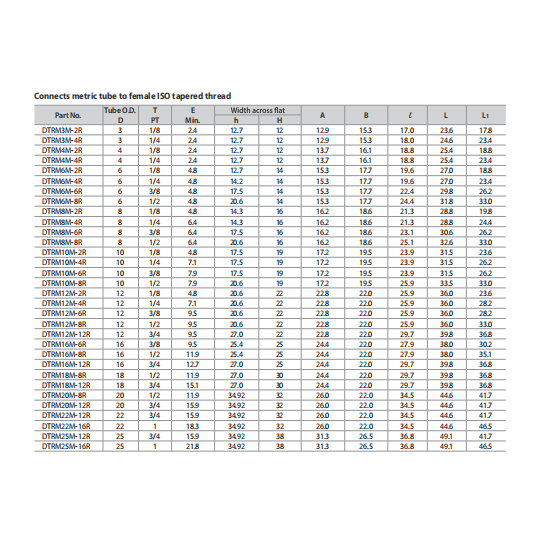

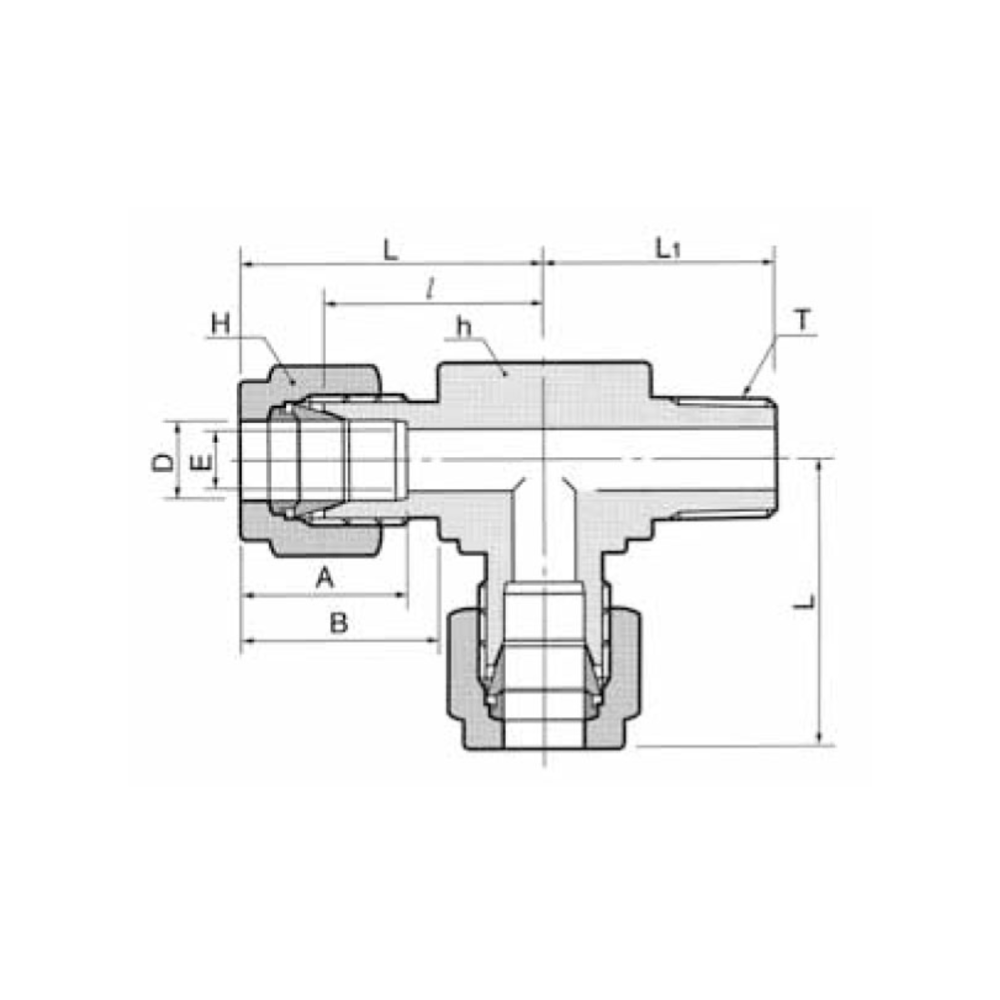

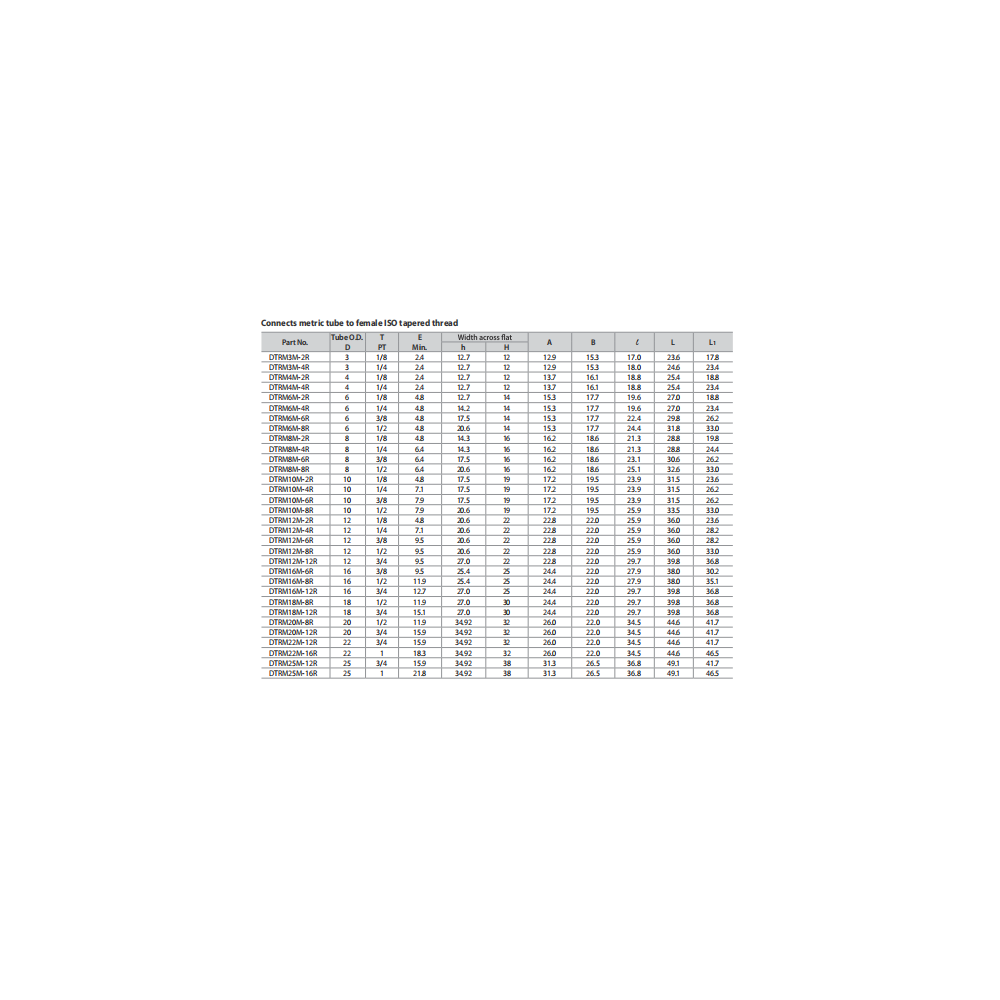

Part No |
Tube O.D. D (mm) |
T NPT |
|
DTRM3M-2R |
3 |
1/8 |
|
DTRM3M-4R |
3 |
1/4 |
|
DTRM4M-2R |
4 |
1/8 |
|
DTRM4M-4R |
4 |
1/4 |
|
DTRM6M-2R |
6 |
1/8 |
|
DTRM6M-4R |
6 |
1/4 |
|
DTRM6M-6R |
6 |
3/8 |
|
DTRM6M-8R |
6 |
1/2 |
|
DTRM8M-2R |
8 |
1/8 |
|
DTRM8M-4R |
8 |
1/4 |
|
DTRM8M-6R |
8 |
3/8 |
|
DTRM8M-8R |
8 |
1/2 |
|
DTRM10M-2R |
10 |
1/8 |
|
DTRM10M-4R |
10 |
1/4 |
|
DTRM10M-6R |
10 |
3/8 |
|
DTRM10M-8R |
10 |
1/2 |
|
DTRM12M-2R |
12 |
1/8 |
|
DTRM12M-4R |
12 |
1/4 |
|
DTRM12M-6R |
12 |
3/8 |
|
DTRM12M-8R |
12 |
1/2 |
|
DTRM12M-12R |
12 |
3/4 |
|
DTRM16M-6R |
16 |
3/8 |
|
DTRM16M-8R |
16 |
1/2 |
|
DTRM16M-12R |
16 |
3/4 |
|
DTRM18M-8R |
18 |
1/2 |
|
DTRM18M-12R |
18 |
3/4 |
|
DTRM20M-8R |
20 |
1/2 |
|
DTRM20M-12R |
20 |
3/4 |
|
DTRM22M-12R |
22 |
3/4 |
|
DTRM22M-16R |
22 |
1 |
|
DTRM25M-12R |
25 |
3/4 |
|
DTRM25M-16R |
25 |
1 |
