One-piece check valves
Brand:

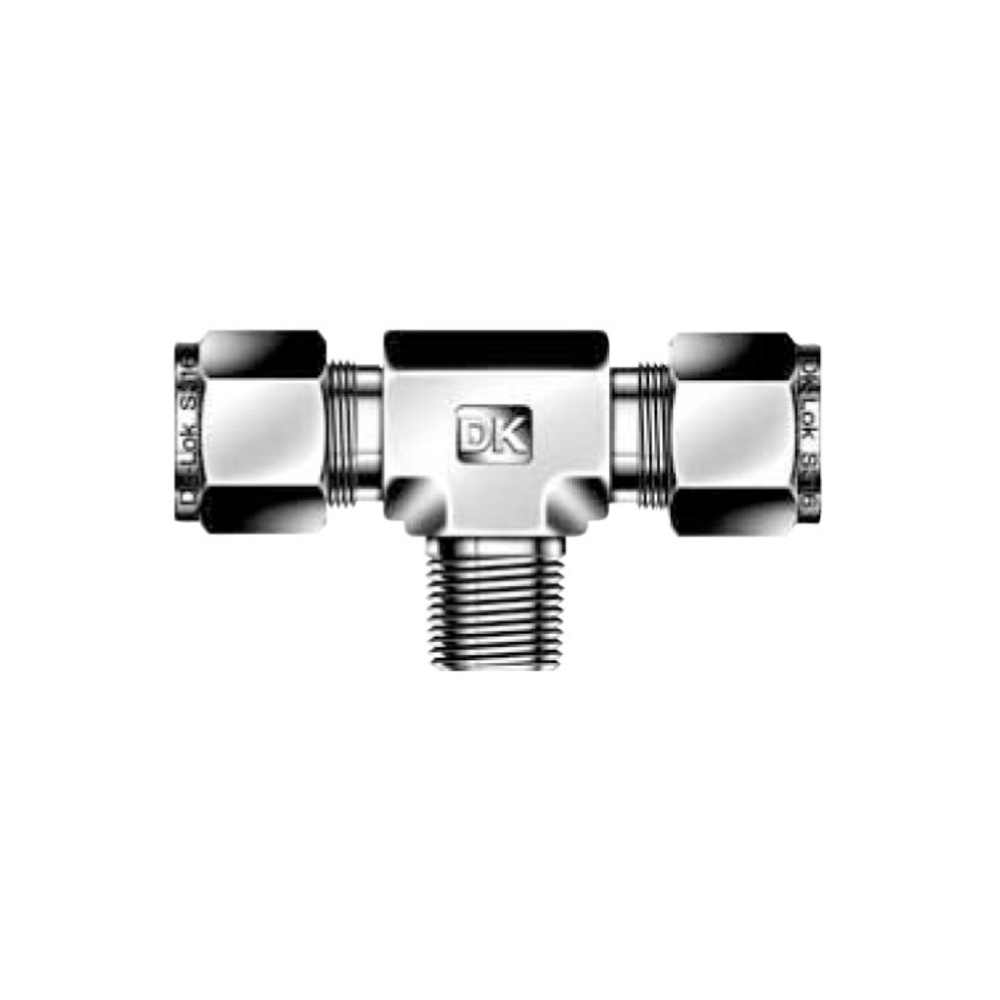

DK-LOK BRASS Male Branch Tee DTBM-N Metric Series
Tube to Male Pipe
Model No.
DTBMXM-XN-B

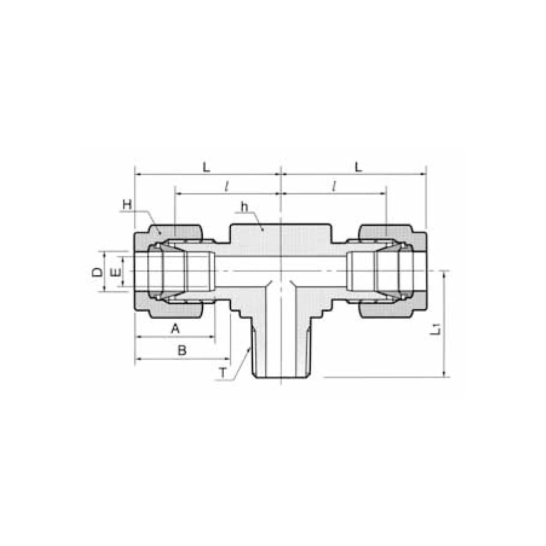

DK-Lok DTBM-N male branch tees are designed to connect two individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

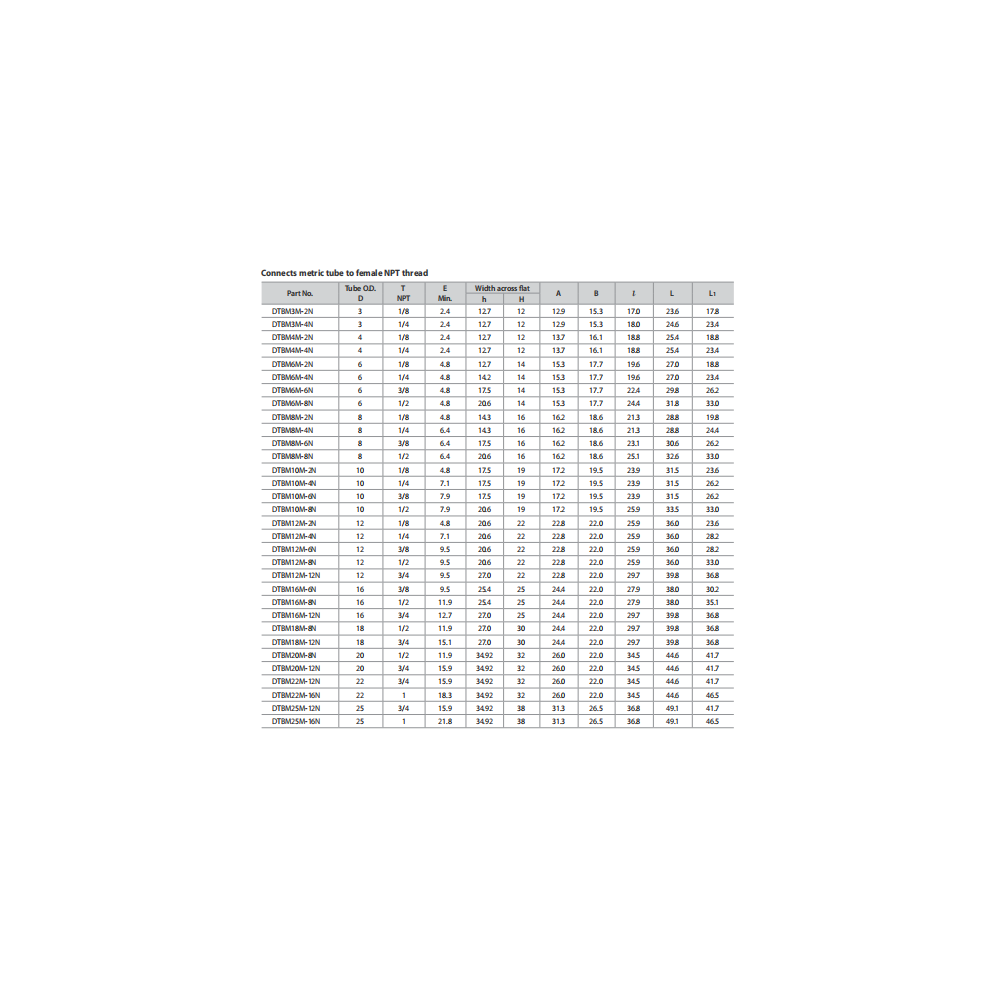

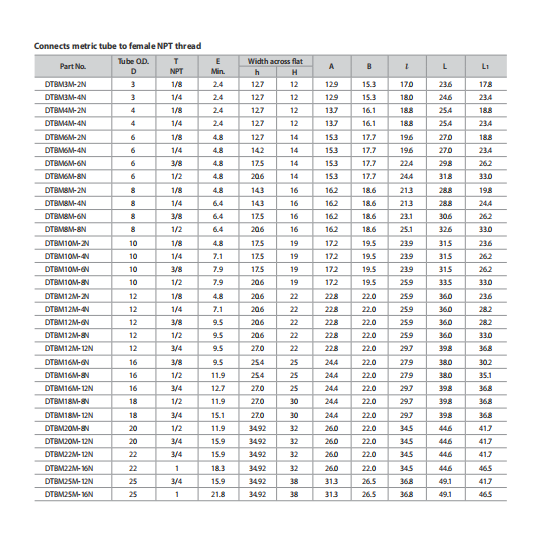

Part No |
Tube O.D. D (mm) |
T PT |
|
DTBM3M-2N |
3 |
1/8 |
|
DTBM3M-4N |
3 |
1/4 |
|
DTBM4M-2N |
4 |
1/8 |
|
DTBM4M-4N |
4 |
1/4 |
|
DTBM6M-2N |
6 |
1/8 |
|
DTBM6M-4N |
6 |
1/4 |
|
DTBM6M-6N |
6 |
3/8 |
|
DTBM6M-8N |
6 |
1/2 |
|
DTBM8M-2N |
8 |
1/8 |
|
DTBM8M-4N |
8 |
1/4 |
|
DTBM8M-6N |
8 |
3/8 |
|
DTBM8M-8N |
8 |
1/2 |
|
DTBM10M-2N |
10 |
1/8 |
|
DTBM10M-4N |
10 |
1/4 |
|
DTBM10M-6N |
10 |
3/8 |
|
DTBM10M-8N |
10 |
1/2 |
|
DTBM12M-2N |
12 |
1/8 |
|
DTBM12M-4N |
12 |
1/4 |
|
DTBM12M-6N |
12 |
3/8 |
|
DTBM12M-8N |
12 |
1/2 |
|
DTBM12M-12N |
12 |
3/4 |
|
DTBM16M-6N |
16 |
3/8 |
|
DTBM16M-8M |
16 |
1/2 |
|
DTBM16M-12N |
16 |
3/4 |
|
DTBM18M-8N |
18 |
1/2 |
|
DTBM18M-12N |
18 |
3/4 |
|
DTBM20M-8N |
20 |
1/2 |
|
DTBM20M-12N |
20 |
3/4 |
|
DTBM22M-12N |
22 |
3/4 |
|
DTBM22M-16N |
22 |
1 |
|
DTBM25M-12N |
25 |
3/4 |
|
DTBM25M-16N |
25 |
1 |
