Brand:

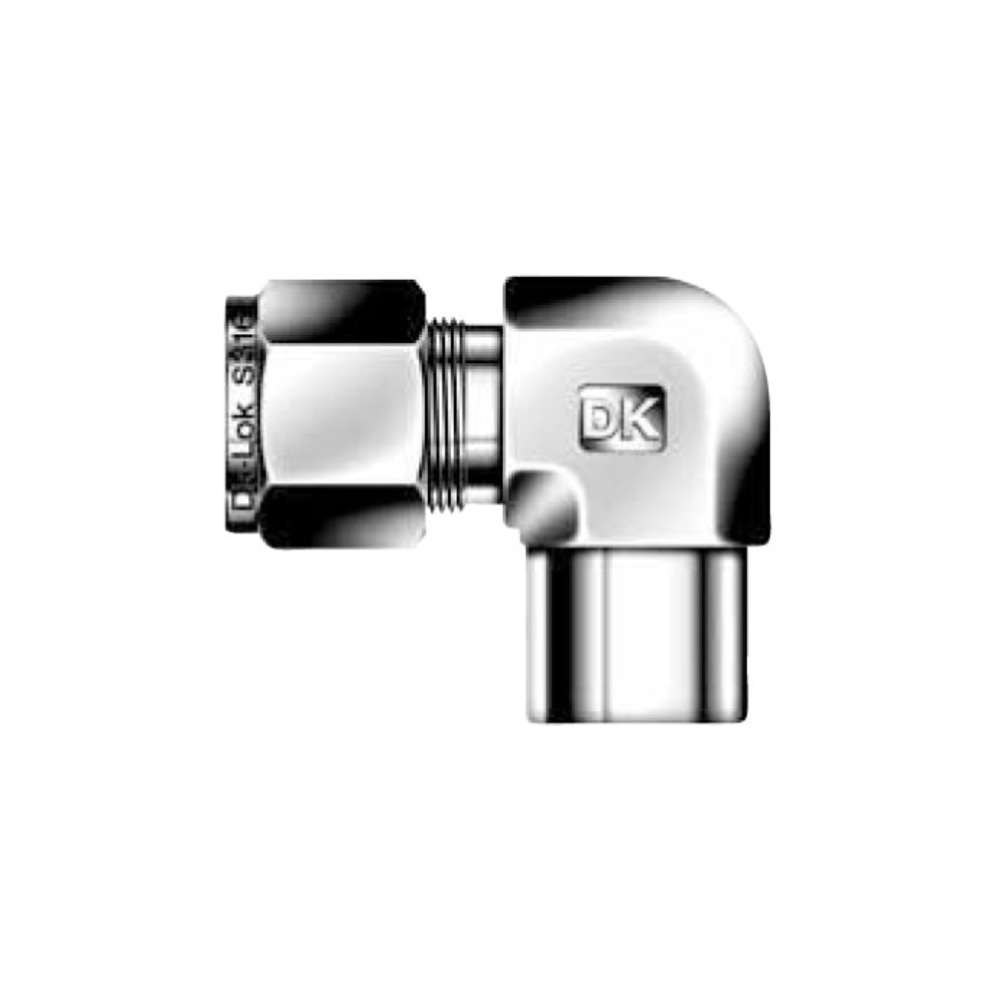

DK-LOK BRASS Female Elbow DLF-N Series
Tube to Female Pipe
Model No.
DLFX-XN-B
DK-Lok DLF-N female elbow connectors are designed to connect individual fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.
|

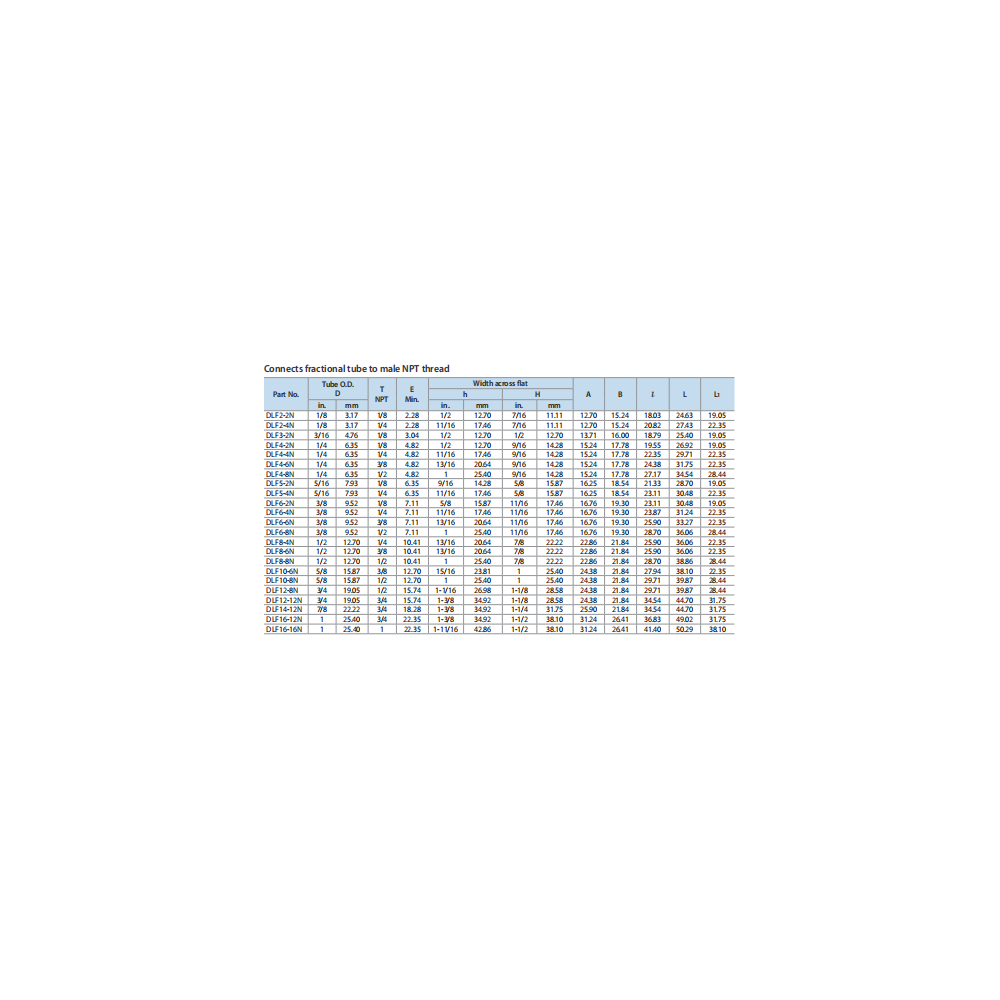

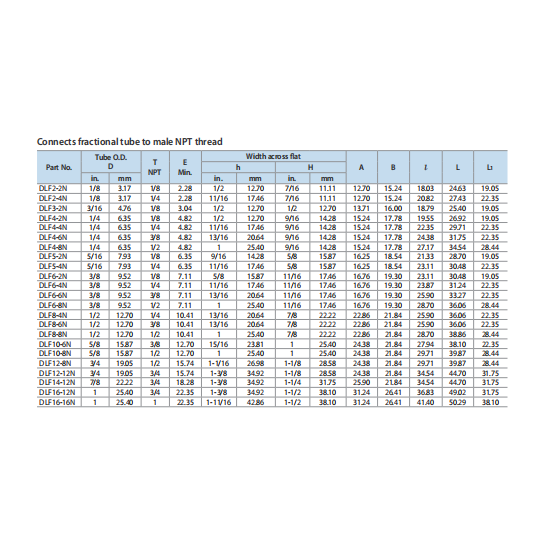

Part No
|
Tube O.D.
D (inches)
|
T
NPT
|
|
DLF2-2N |
1/8 |
1/8 |
|
DLF2-4N |
1/8 |
1/4 |
|
DLF3-2N |
3/16 |
1/8 |
|
DLF4-2N |
1/4 |
1/8 |
|
DLF4-4N |
1/4 |
1/4 |
|
DLF4-6N |
1/4 |
3/8 |
|
DLF4-8N |
1/4 |
1/2 |
|
DLF5-2N |
5/16 |
1/8 |
|
DLF5-4N |
5/16 |
1/4 |
|
DLF6-2N |
3/8 |
1/8 |
|
DLF6-4N |
3/8 |
1/4 |
|
DLF6-6N |
3/8 |
3/8 |
|
DLF6-8N |
3/8 |
1/2 |
|
DLF8-4N |
1/2 |
1/4 |
|
DLF8-6N |
1/2 |
3/8 |
|
DLF8-8N |
1/2 |
1/2 |
|
DLF10-6N |
5/8 |
3/8 |
|
DLF10-8N |
5/8 |
1/2 |
|
DLF12-8N |
3/4 |
1/2 |
|
DLF12-12N |
3/4 |
3/4 |
|
DLF14-12N |
7/8 |
3/4 |
|
DLF16-12N |
1 |
3/4 |
|
DLF16-16N |
1 |
1 |
